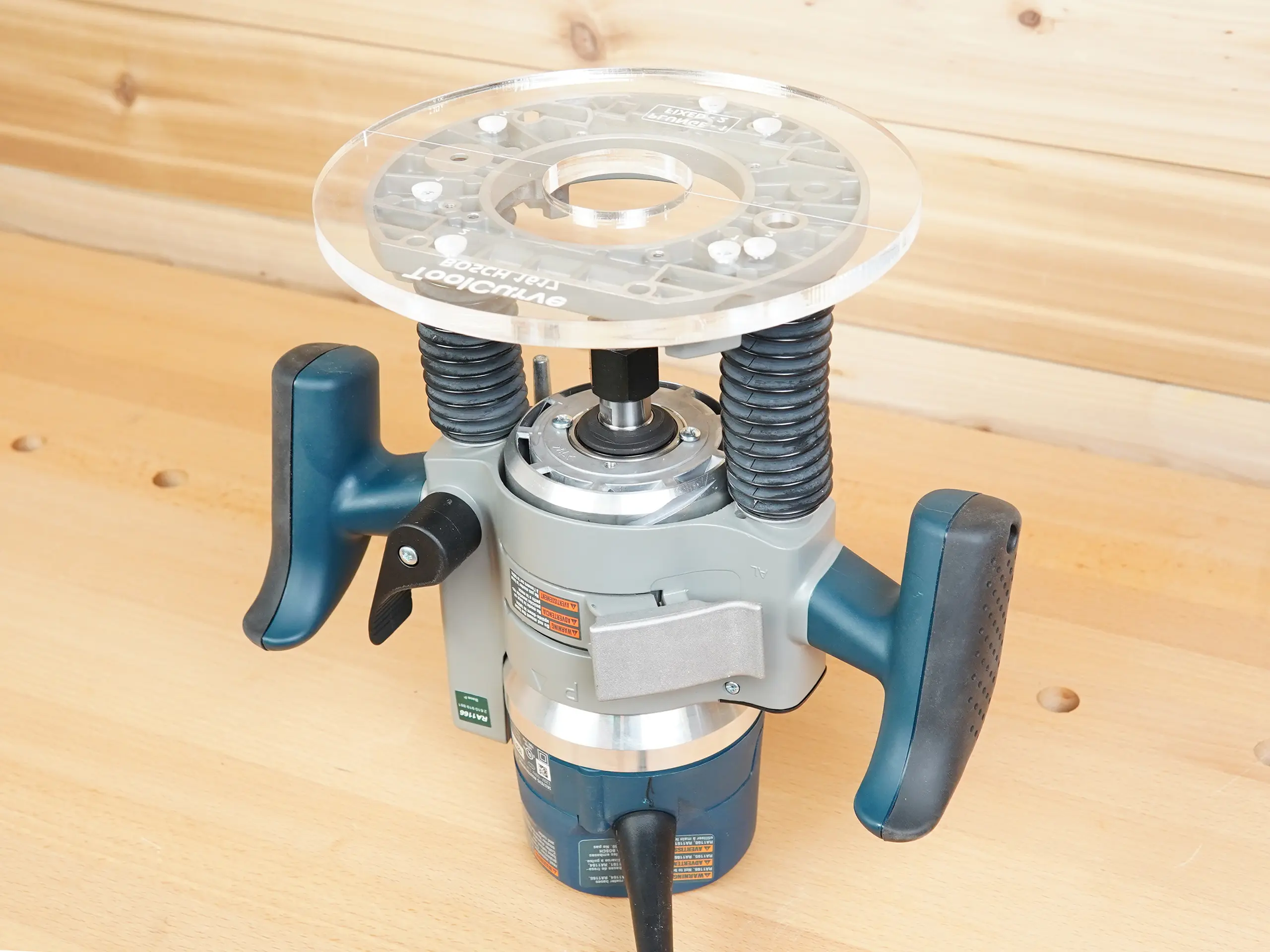

Clear 8-inch acrylic router base plate resting above a blue Bosch 1617 plunge router on a pine benchtop

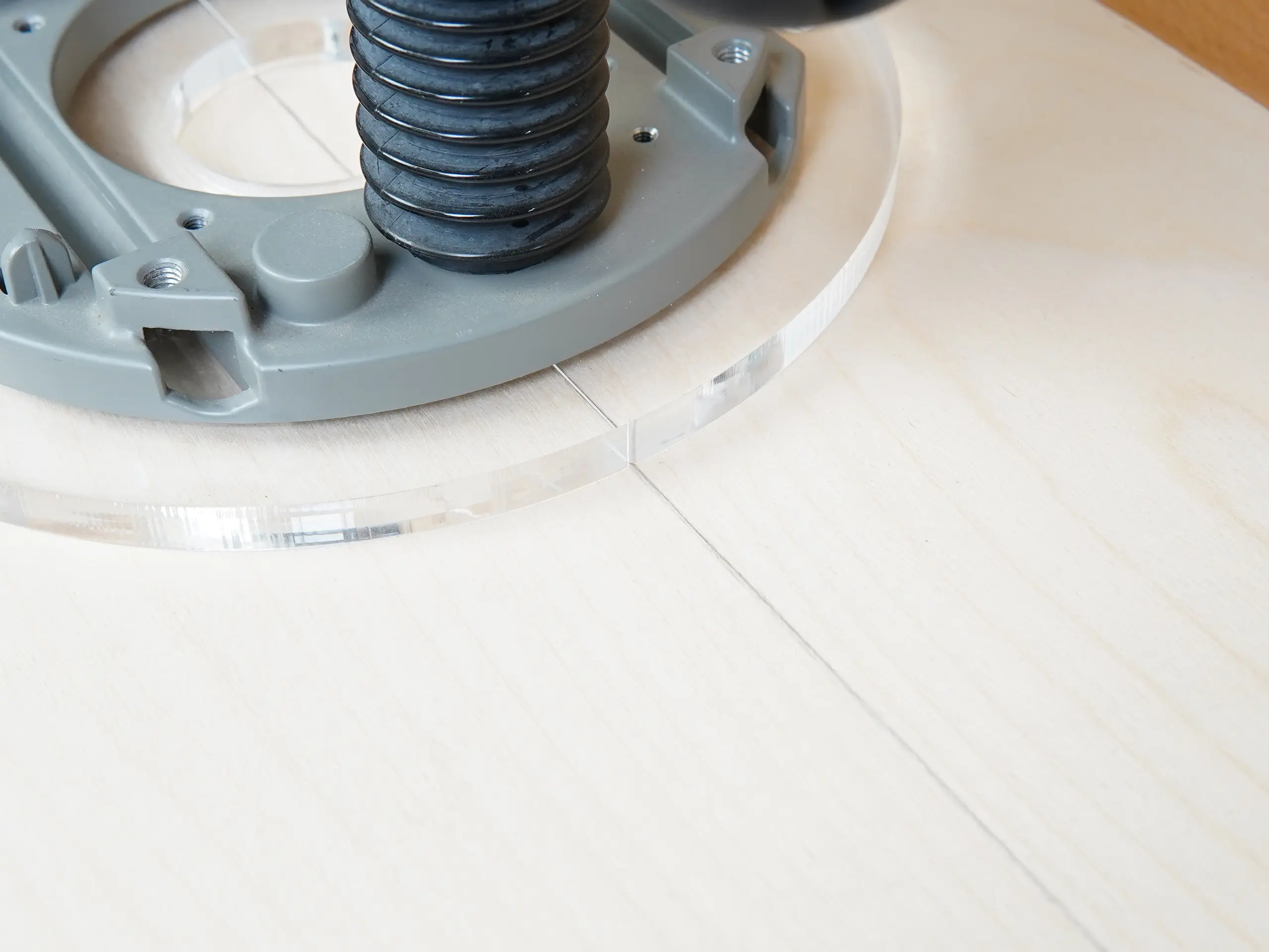

8-inch clear acrylic router base plate attached to Bosch 1617 router, showing threaded center post and mounting hardware on white wood surface

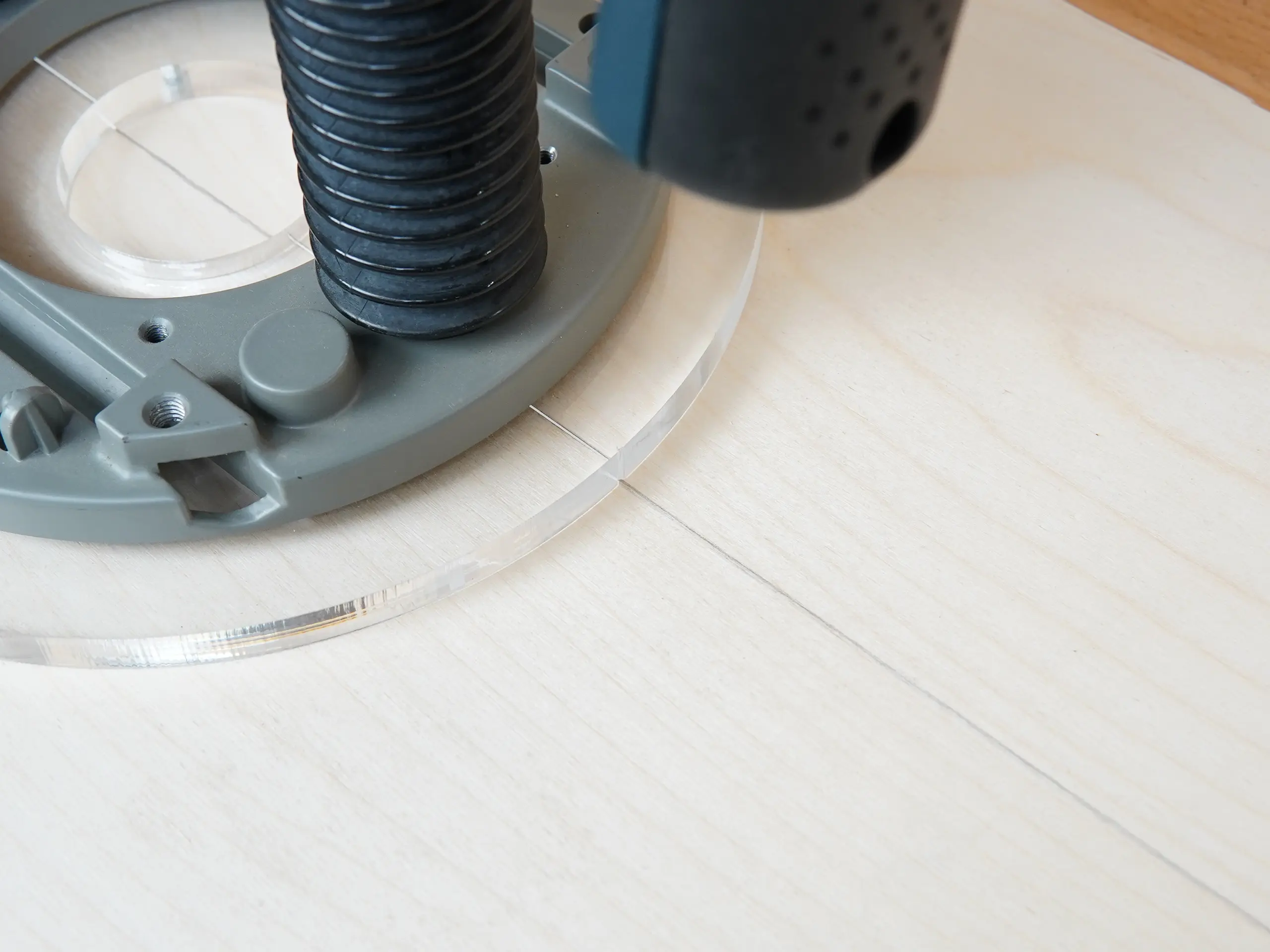

Clear acrylic router base plate attached to Bosch 1617 router, showing 8-inch diameter with mounting hardware and threaded hose connection visible.

8″ Round Acrylic Router Base Plate for Bosch 1617

Name: 8″ Round Acrylic Router Base Plate for Bosch 1617
Brand: ToolCurve
SKU: TC-RBP-RD08-BOS1617
Price: 34.95 USD
Availability: InStock
Rating: 5.00 (1 reviews)

1 review

$34.95

Base Plate Opening

Clear

In Stock Ships from Medina, OH

Arrives Sep 3-6 Order within 16h 55m

Key Features

Large 8″ round base for added stability
Made from durable 3/8″ clear cast acrylic
Direct fit for the Bosch 1617 plunge & fixed base
Choice of guide-bushing or 2″ wide opening
Designed & Made in Medina, Ohio

Description

Upgrade your Bosch 1617 Router with a larger, more stable base designed to improve accuracy, control, and visibility while routing. This 8″ round router base is precision-cut from 3/8″ cast acrylic, providing a strong, rigid platform that helps prevent tipping while routing edges, following templates, or cutting grooves.

Base Plate Opening Options

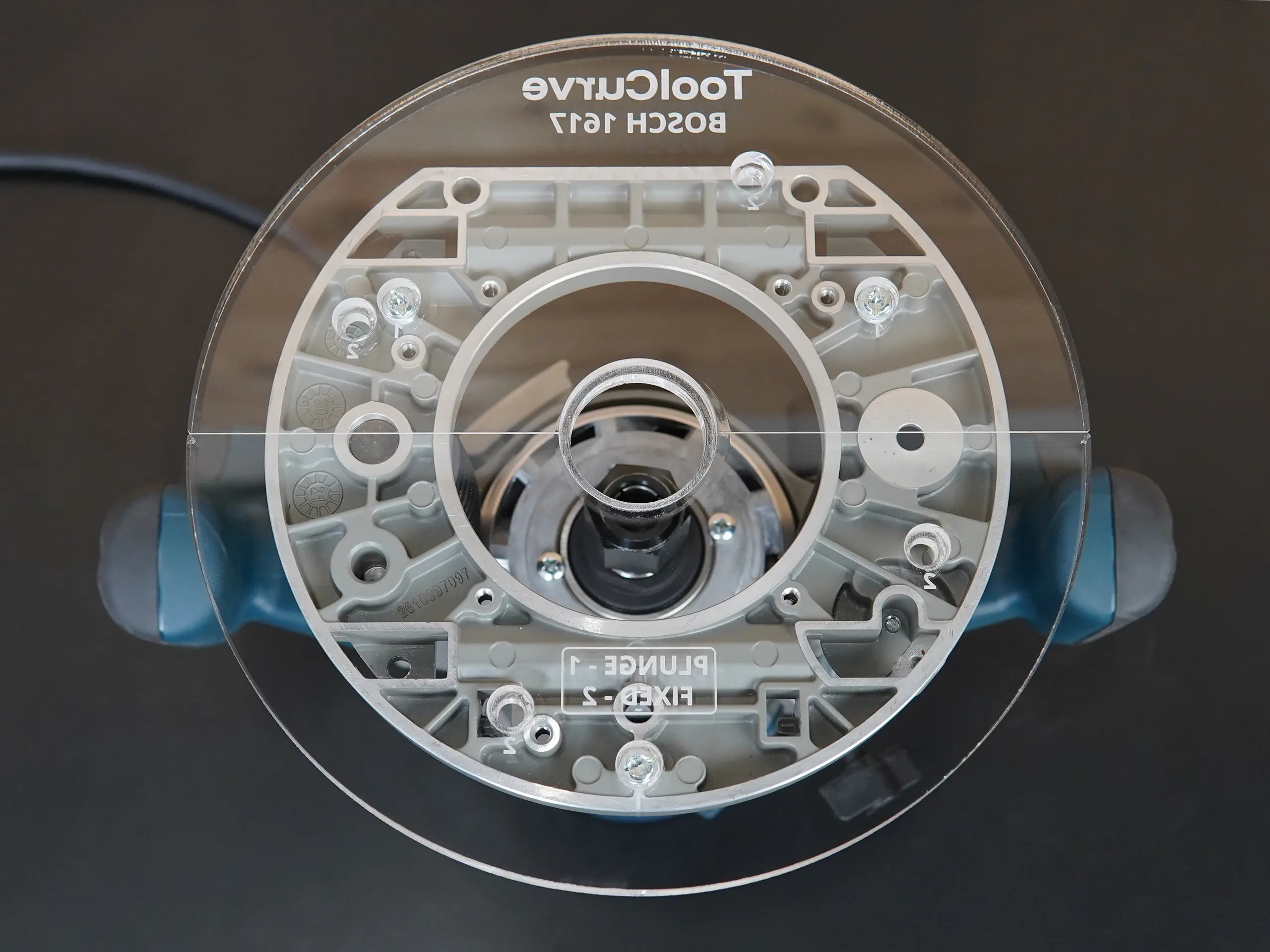

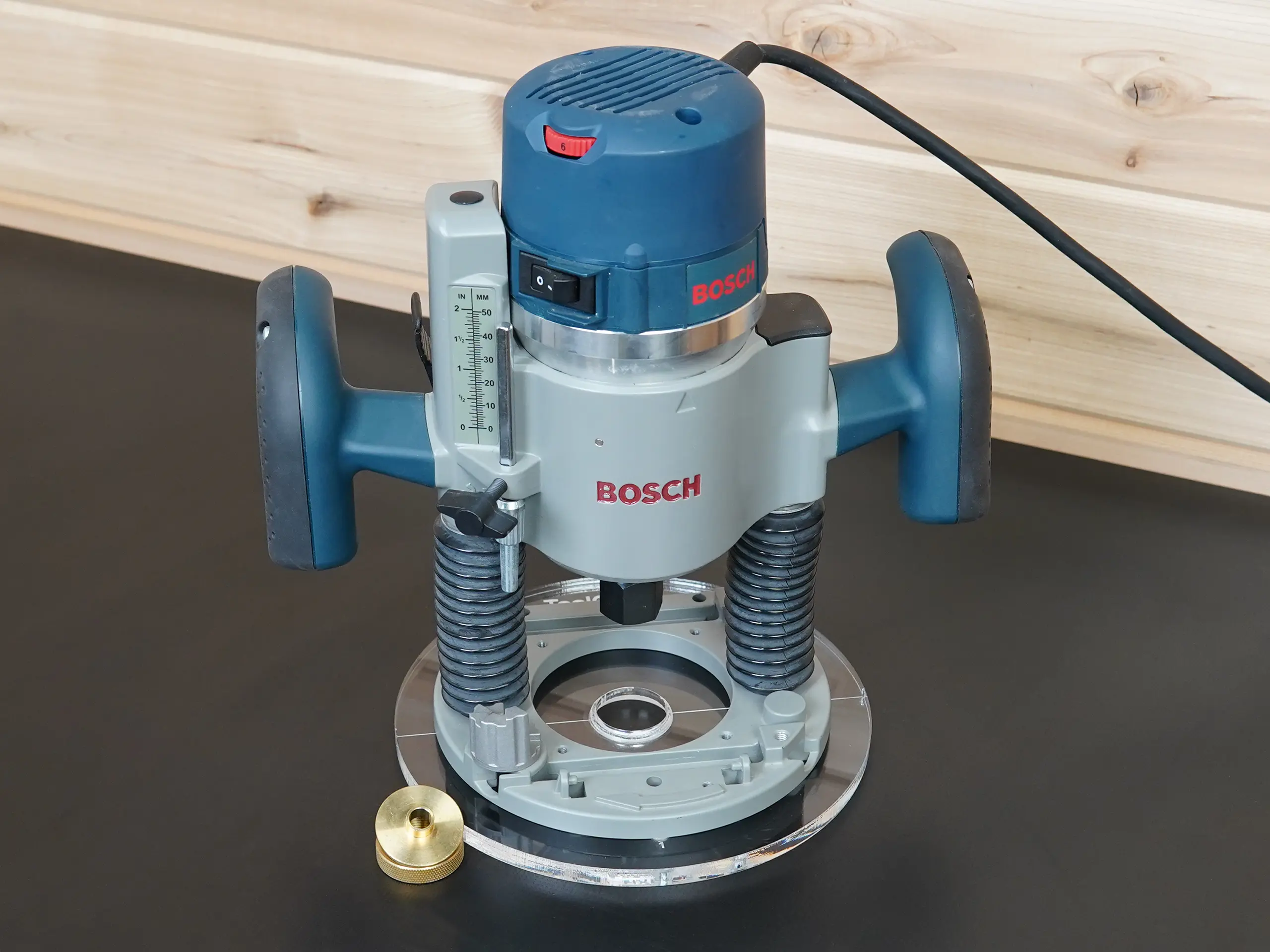

Guide Bushing — 1.2″ Opening

Designed for standard Porter-Cable-style guide bushings and inlay kits, this option is ideal for template routing, inlay work, and other guided cuts. The 1.2″ center opening provides clearance for router bits up to 1″ in diameter.

When a guide bushing is installed, maximum bit diameter is determined by the inside diameter of the selected guide bushing.

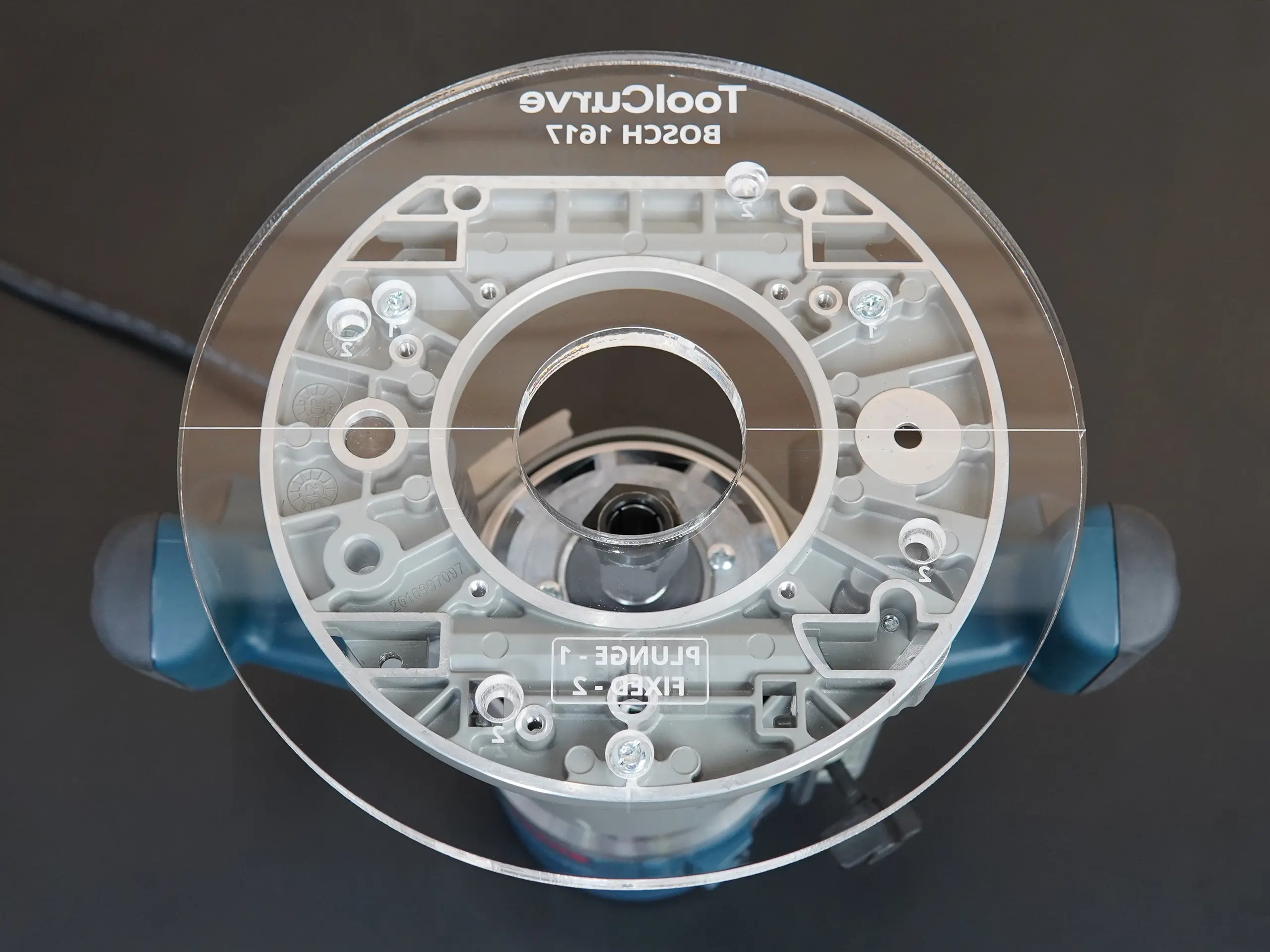

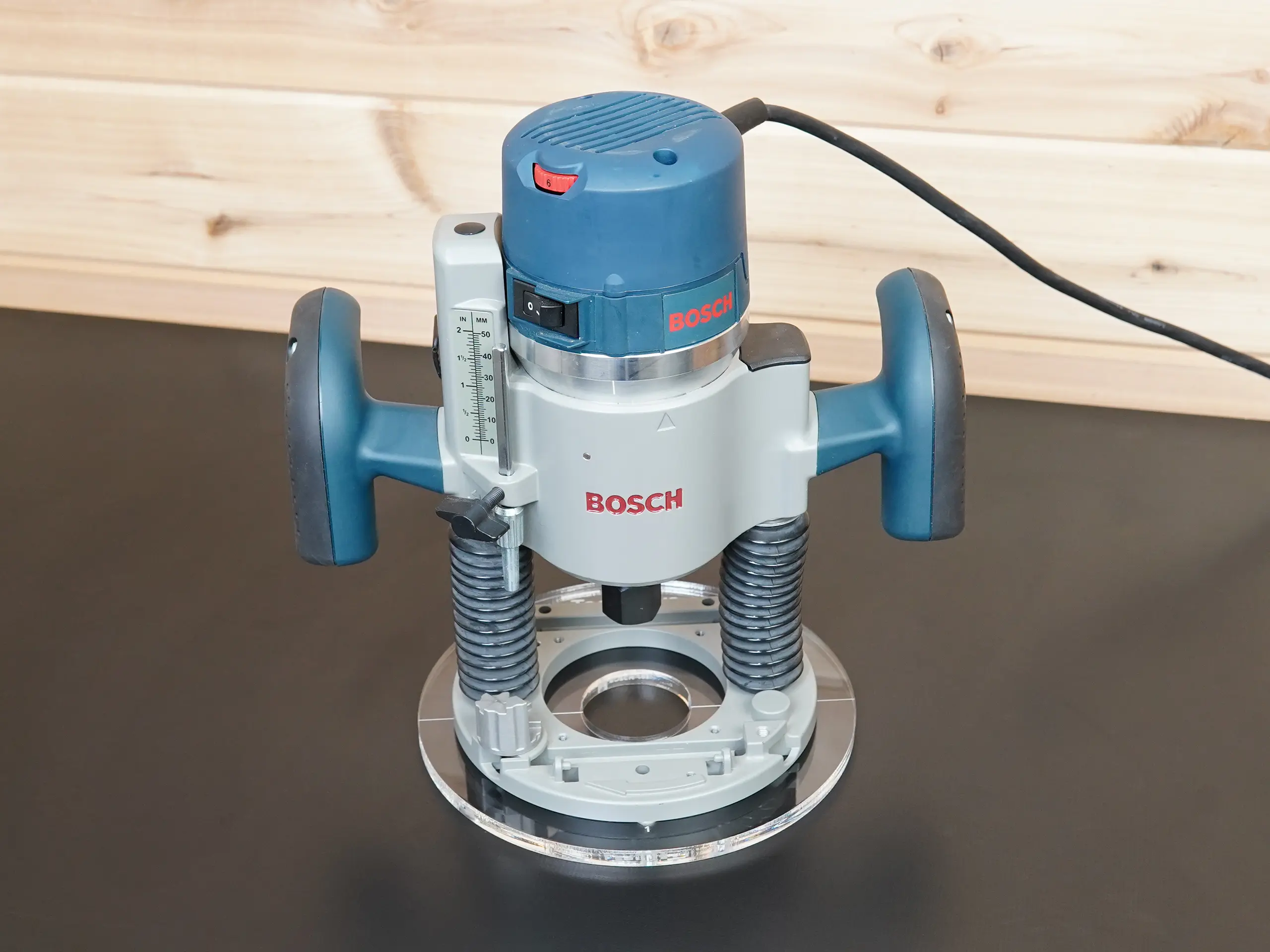

Wide Opening — 2.5″ Opening

Designed for larger-diameter router bits when a guide bushing is not needed. The 2.5″ center opening provides increased bit clearance while retaining the support and stability of the full-size acrylic base plate.

This option is not compatible with Porter-Cable-style guide bushings.

Quick Comparison

Comparison of Guide Bushing and Wide Opening base plate options
Feature	Guide Bushing	Wide Opening
Center opening	1.2″	2.5″
Porter-Cable-style guide bushings	Yes	No
Best for	Templates, inlays, guided routing	Larger-diameter router bits

When a guide bushing is installed, maximum bit diameter is determined by the inside diameter of the selected guide bushing.

Shipping & Returns

Domestic Shipping

Standard (3-5 days): $6.95

Priority (2 days): $9.95

Free Shipping on orders over $75

Worldwide Shipping

Canada: $18+

EU coming soon.

Return Policy

Returns are accepted within 90 days of the purchase date for items in new or gently used condition with its original packaging.
