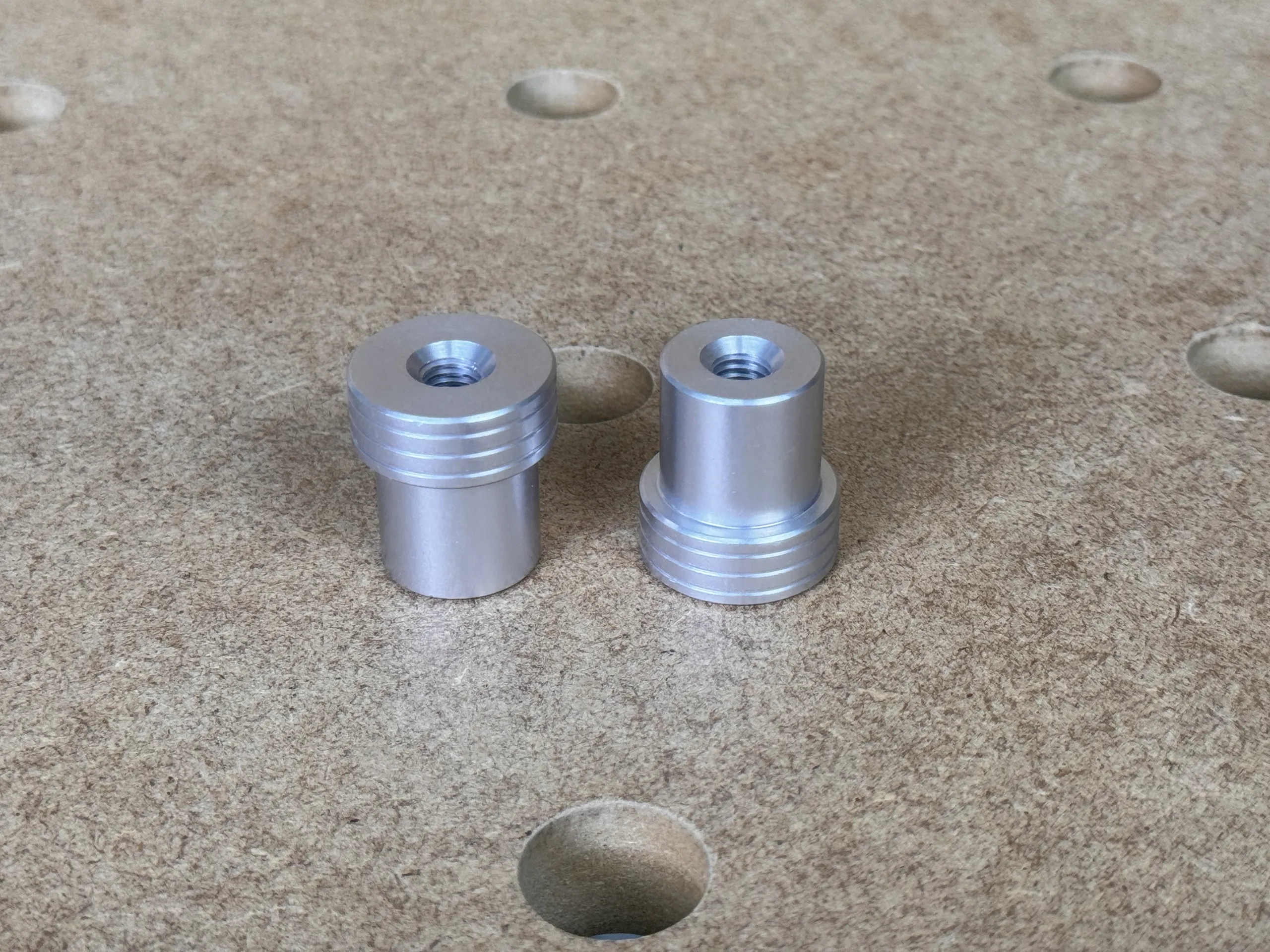

Two clear-anodized aluminum 20mm bench dogs with M8 threaded centers on an MFT-style worktop, one inverted

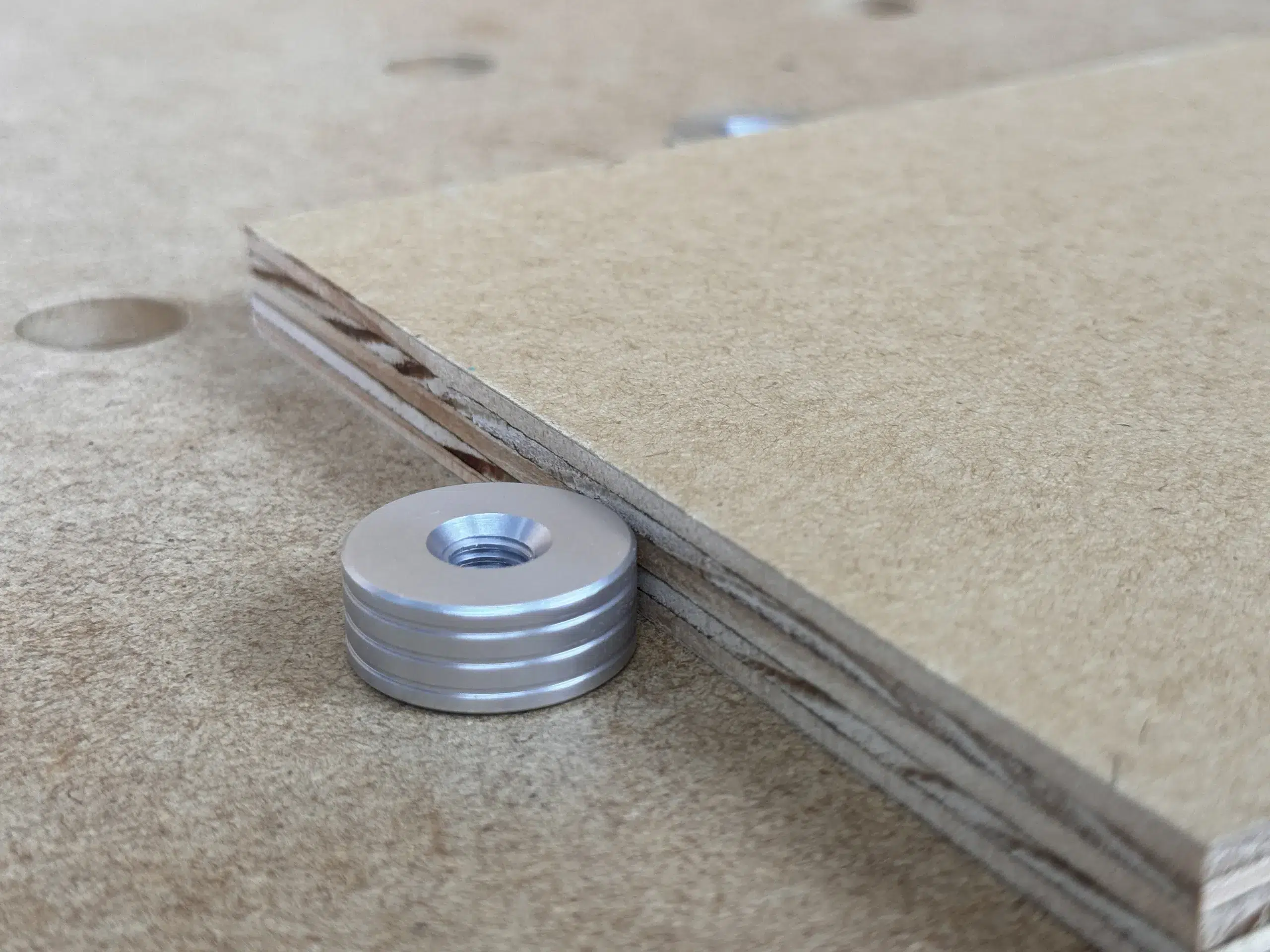

Aluminum bench dog with threaded center hole and horizontal grooves, positioned next to a wooden workbench edge with a 20mm hole

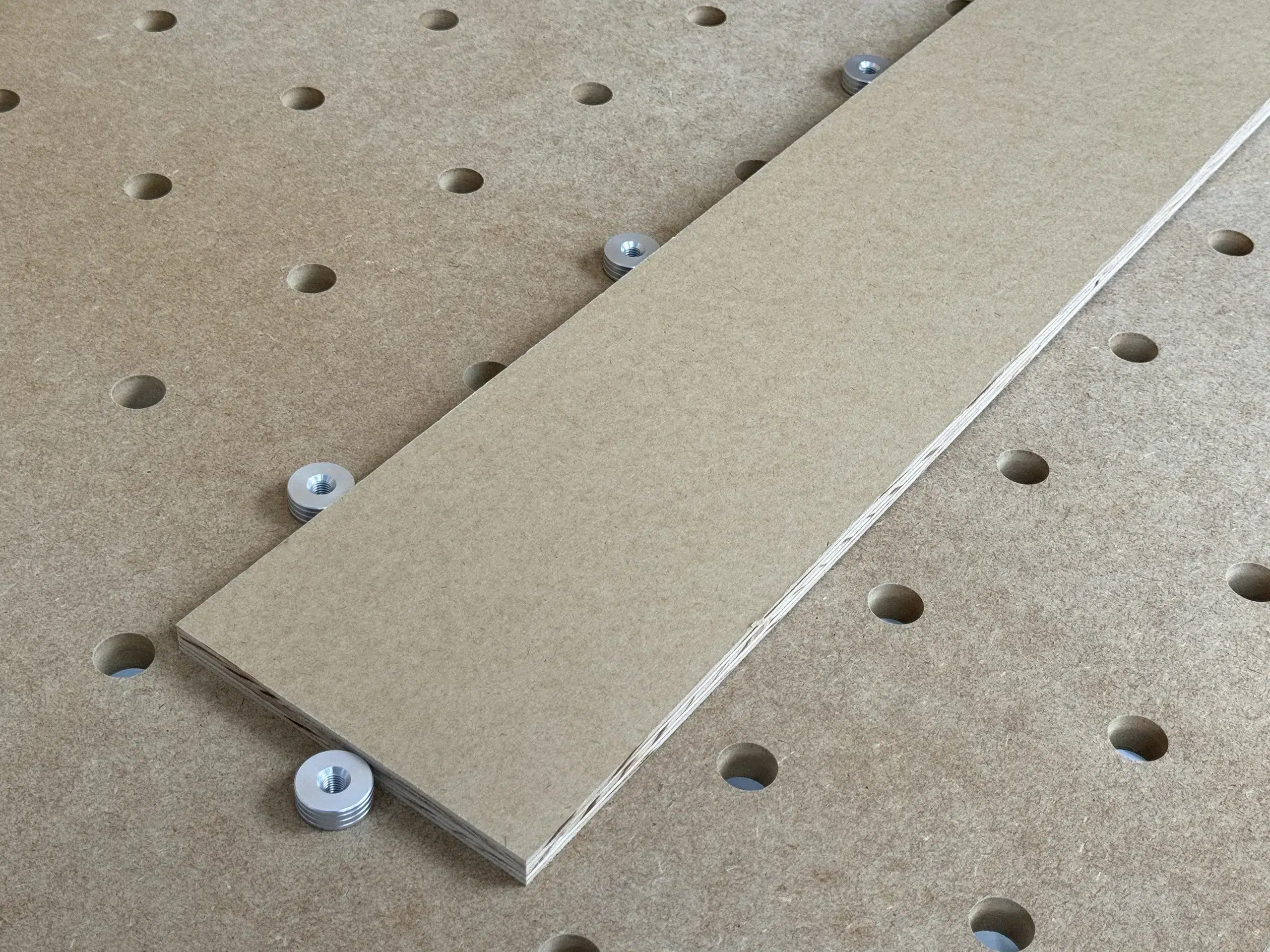

Four 20mm aluminum bench dogs with M8 threaded bases positioned on a pegboard workbench surface

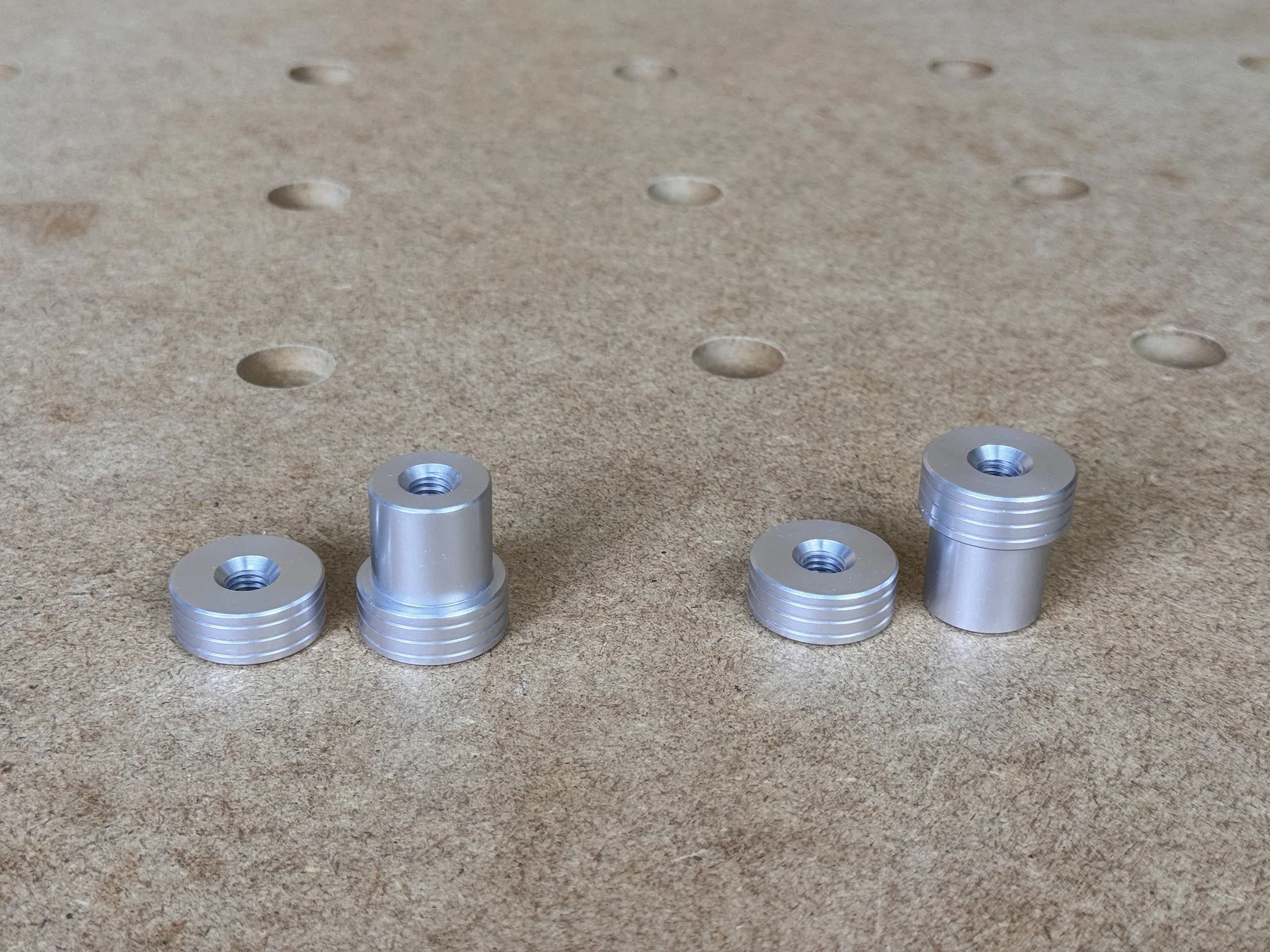

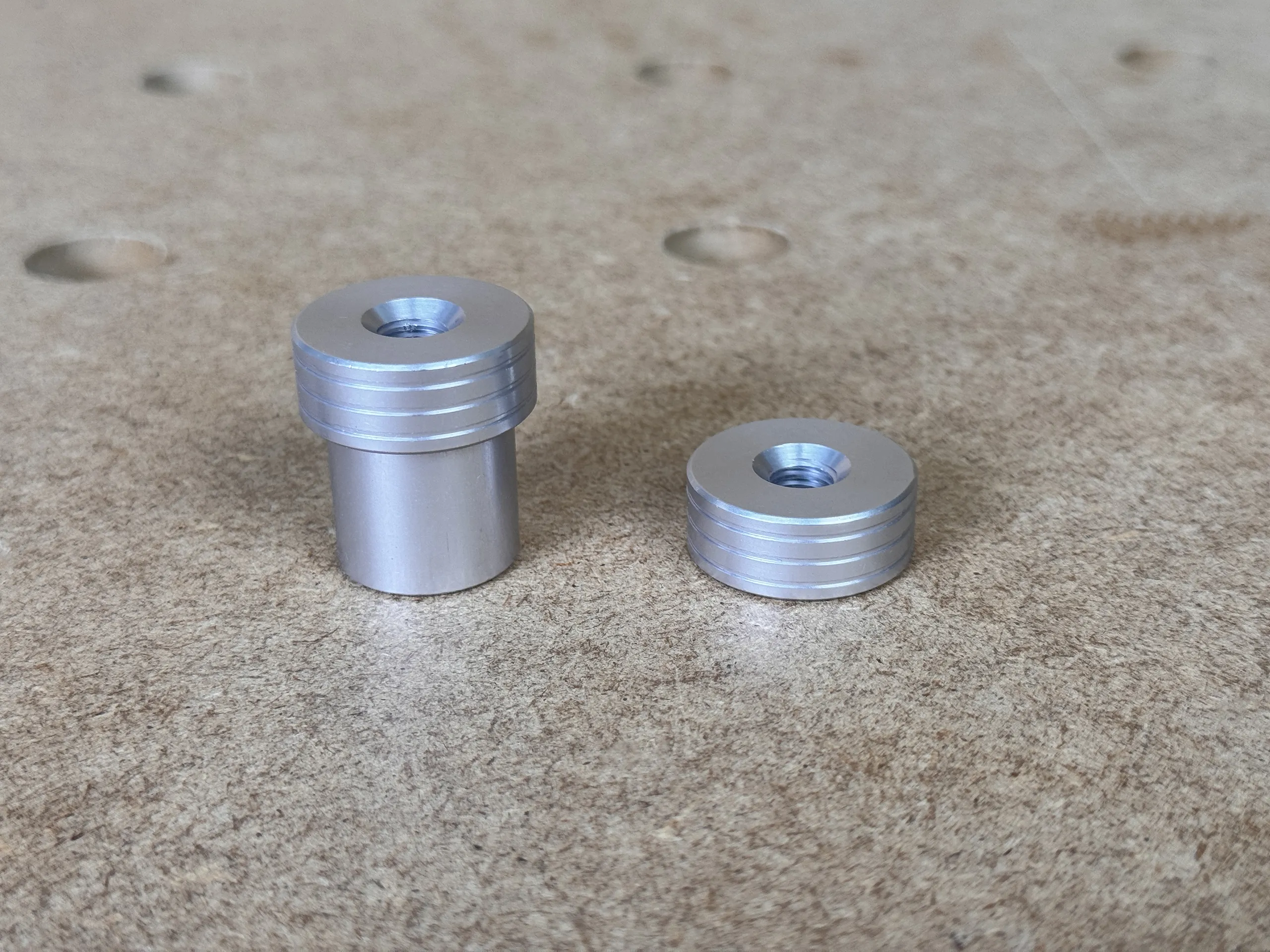

Two aluminum bench dogs side by side, one taller and one shorter, each with threaded top holes and grooved shoulders, on a concrete surface
Four aluminum bench dogs with M8 threaded tops, shown on a perforated workbench with 20mm holes visible above

20mm Standard Bench Dogs

2 reviews
Current price is: $12.71.Original price was: $14.95.
In Stock Ships from Medina, OH
Arrives Oct 8-11 Order within 1d 9h

Description

Elevate your woodworking experience with ToolCurve’s premium CNC machined aluminum bench dogs. Proudly made and anodized in the USA, our bench dogs are engineered for exceptional performance and durability. Each set features a sleek clear anodized finish, providing both strength and a polished look.

  • Superior Construction: Crafted from 6061-T6 aluminum on a Swiss lathe CNC machine here in the USA.
  • Custom Fit: With a 19.90mm diameter, our bench dogs are designed to fit standard and custom 20mm bench holes perfectly.
  • Versatile Design: Includes M8x1.25 threading, making it easy to attach accessories or clamp securely to your worktop.
  • Wide Compatibility: Ideal for use with Dash-Board & MFT/3 Multifunctional Tables and various custom 20mm worktops.

Precision Engineering

ToolCurve bench dogs feature a precise 19.90mm diameter with a tight tolerance of +/- 0.02mm. This ensures an optimal fit that balances ease of use and stability, preventing any unnecessary movement or jamming.

Secure and Stable

To ensure absolute stability, ToolCurve bench dogs come with M8x1.25 threaded taps. This threading allows you to securely clamp the bench dogs to your worktop, eliminating any potential movement.

Flawless Finish

A perfect fit deserves a perfect finish. ToolCurve bench dogs are free from grooves and indentations that can mar softer workpieces, ensuring your projects stay pristine.

Meticulously CNC machined, sandblasted, and anodized in the USA, our bench dogs not only perform exceptionally but also look great on your workbench. Trust ToolCurve for superior quality and precision in every piece.

Shipping & Returns

Domestic Shipping
Standard (3-5 days): $6.95
Priority (2 days): $9.95
Free Shipping on orders over $75

Worldwide Shipping
Canada: $18+
EU coming soon.

Return Policy

Returns are accepted within 90 days of the purchase date for items in new or gently used condition with its original packaging.

Frequently Asked Questions

Should I order the 20mm or 3/4 in. version?

Go by the dog holes in your bench top. The 20mm versions are made for 20mm grids such as MFT/3 and Dash-Board tables, and the 3/4 in. versions are made for 3/4 in. grids such as the Kreg ACS. The square corner dog fences and hole button protectors come in both sizes and the bench dog holder stores either size of dog, while our aluminum bench dogs and the acrylic fence stop system are 20mm only.

What size are the 20mm Standard Bench Dogs and will they fit my table?

They are machined to 19.90mm diameter and held to +/- 0.02mm, so they seat in standard and custom 20mm holes without unnecessary movement or jamming, including Dash-Board and MFT/3 tables and other 20mm worktops. Each dog is 6061-T6 aluminum, CNC machined on a Swiss lathe, sandblasted and clear anodized, with M8x1.25 threading for clamping it securely to your worktop or attaching accessories, and the sides are free of grooves that could mar a workpiece. They come in 2-packs and 4-packs. If you are drilling your own top to match an MFT/3, the 20mm holes are 96mm on center.

Which clamp rack should I get, and how many clamps does each hold?

All three mount in the side t-track and hold quick clamps; pick by what else you want stored beside them.

  • Quick Clamp Holder – the drop-in rack alone, in 4-clamp or 6-clamp sizes.
  • Clamp Rack & Storage Tray – 6 quick clamps or screw clamps plus a tray for pencils and rulers.
  • Utility Rack – 6 quick clamps or screw clamps, the tray, and storage for up to 4 bench dogs.

All three are made for Dash-Board, Kreg ACS and MFT/3 profiles.
