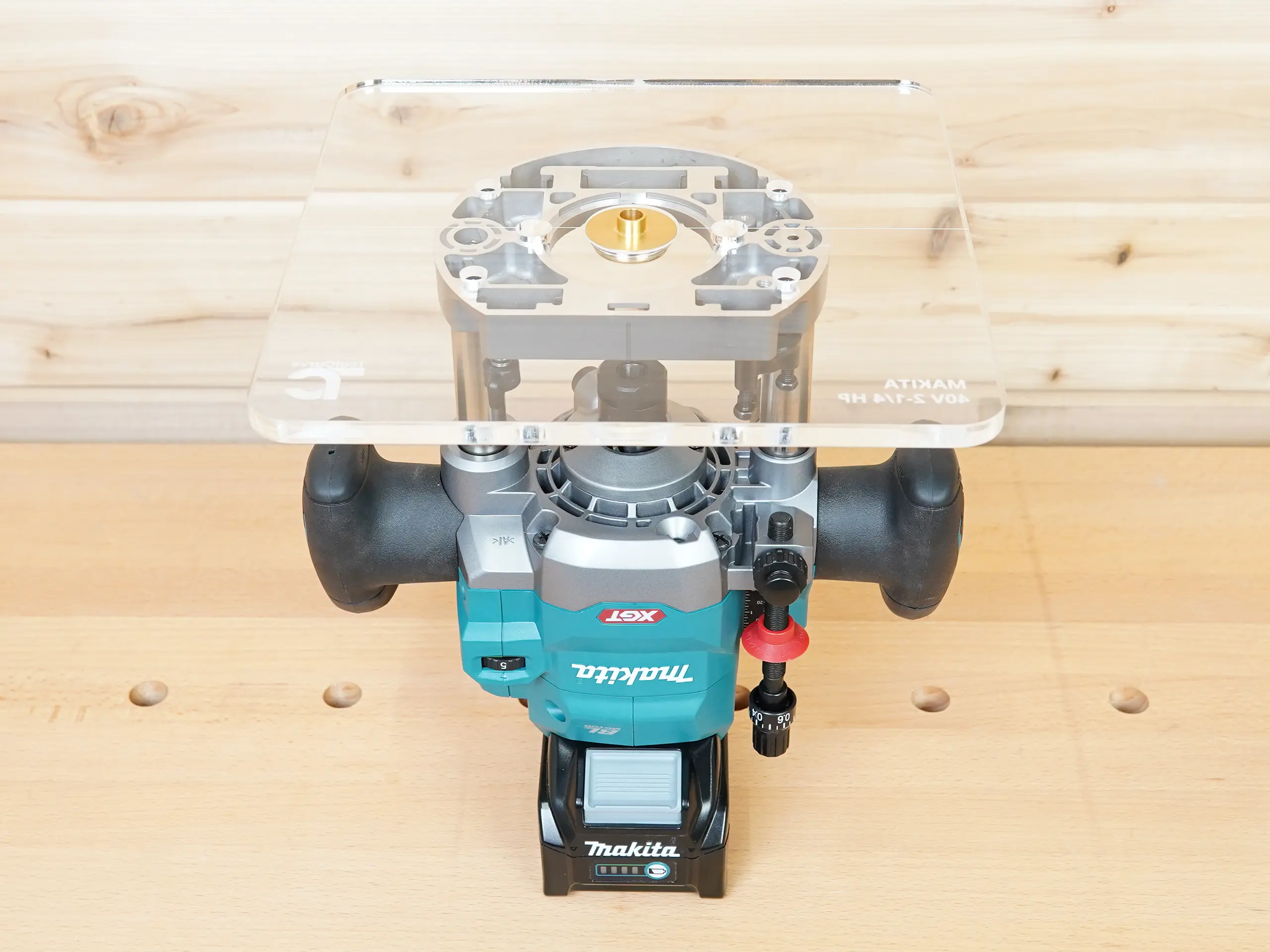

Clear 10-inch square guide bushing base plate mounted under a Makita 40v XGT plunge router, brass bushing beside it

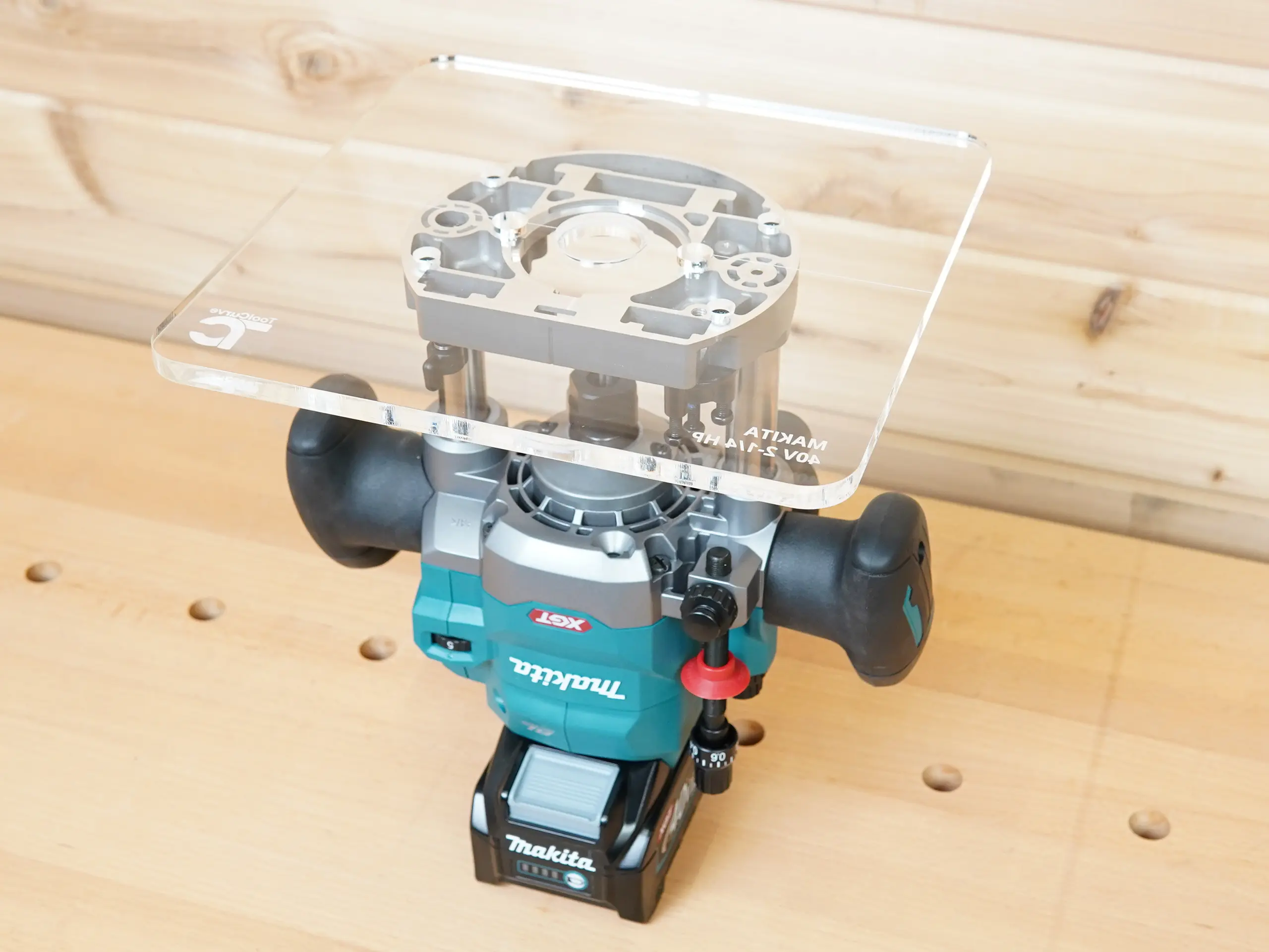

Clear acrylic square router base plate mounted on a Makita 40v cordless router, overhead view on wood surface

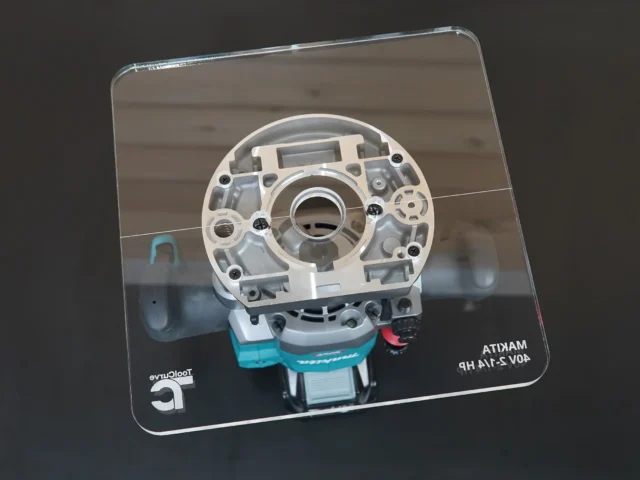

10-inch square acrylic router base plate mounted on a Makita 40v cordless router, viewed from above on a wooden workbench

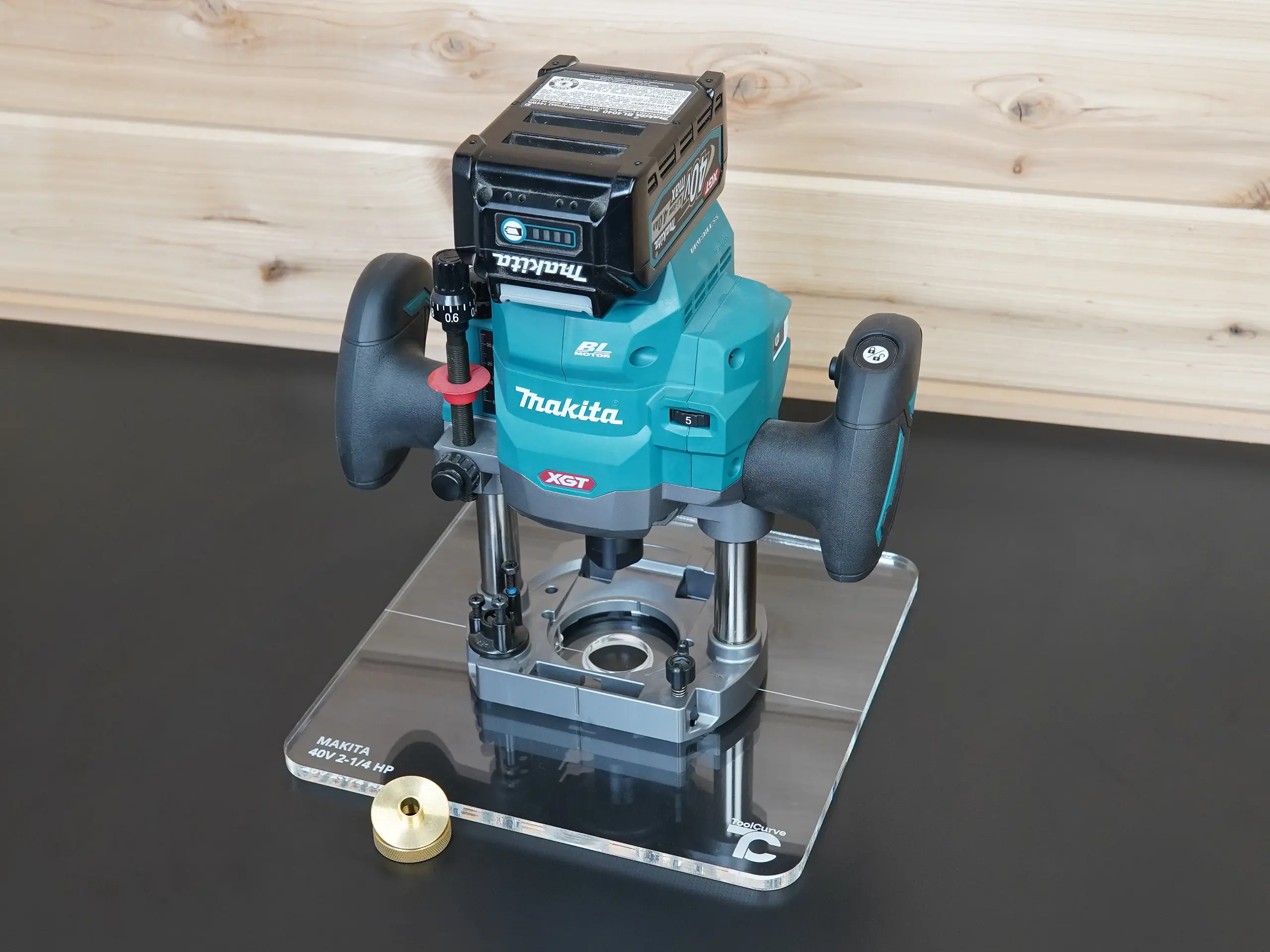

10-inch square router base plate for Makita 40v router, clear acrylic with white mounting ring and center opening, front view

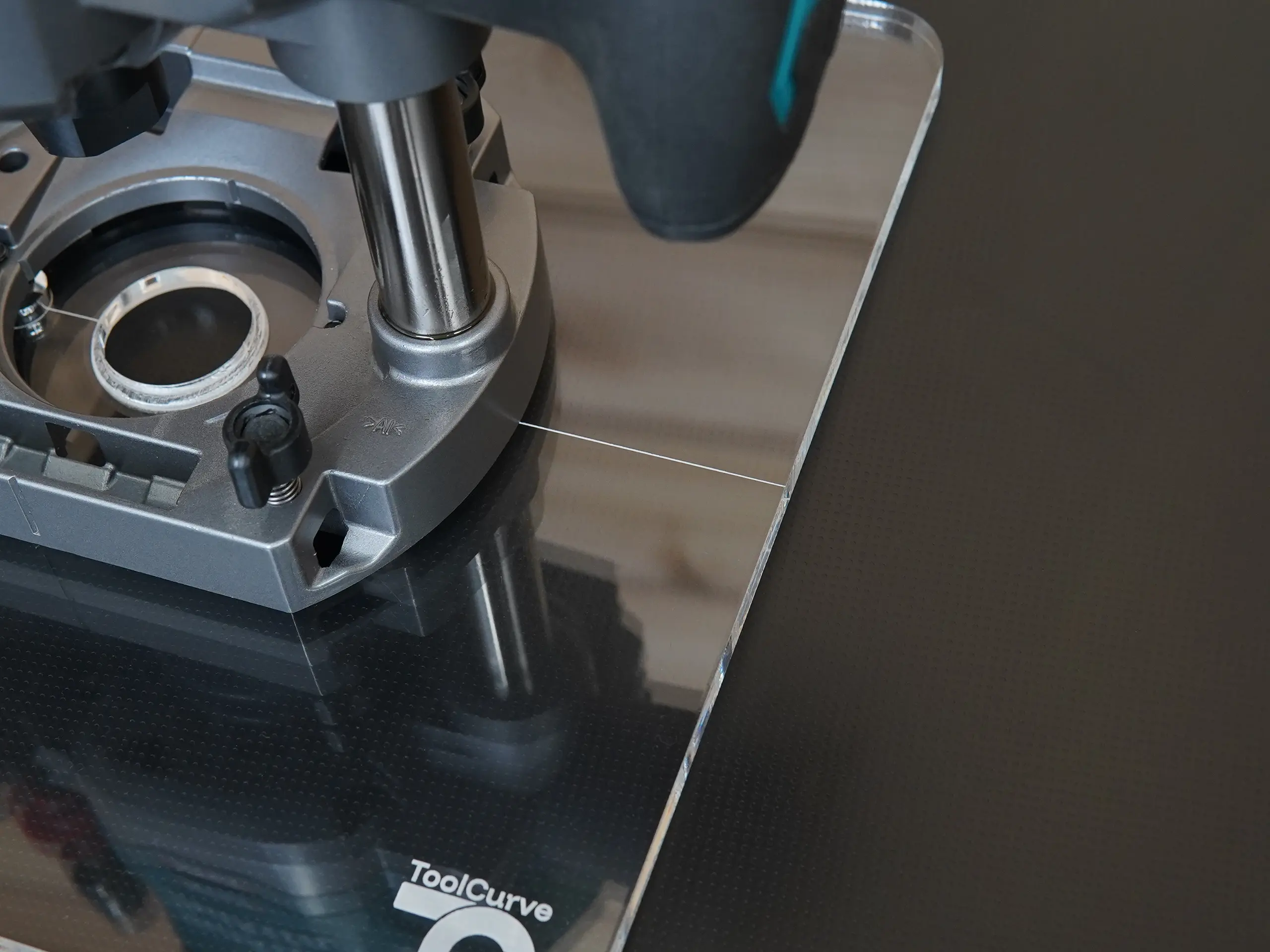

10-inch square router base plate in clear acrylic attached to Makita 40v router, showing the mounting ring and bit opening from above

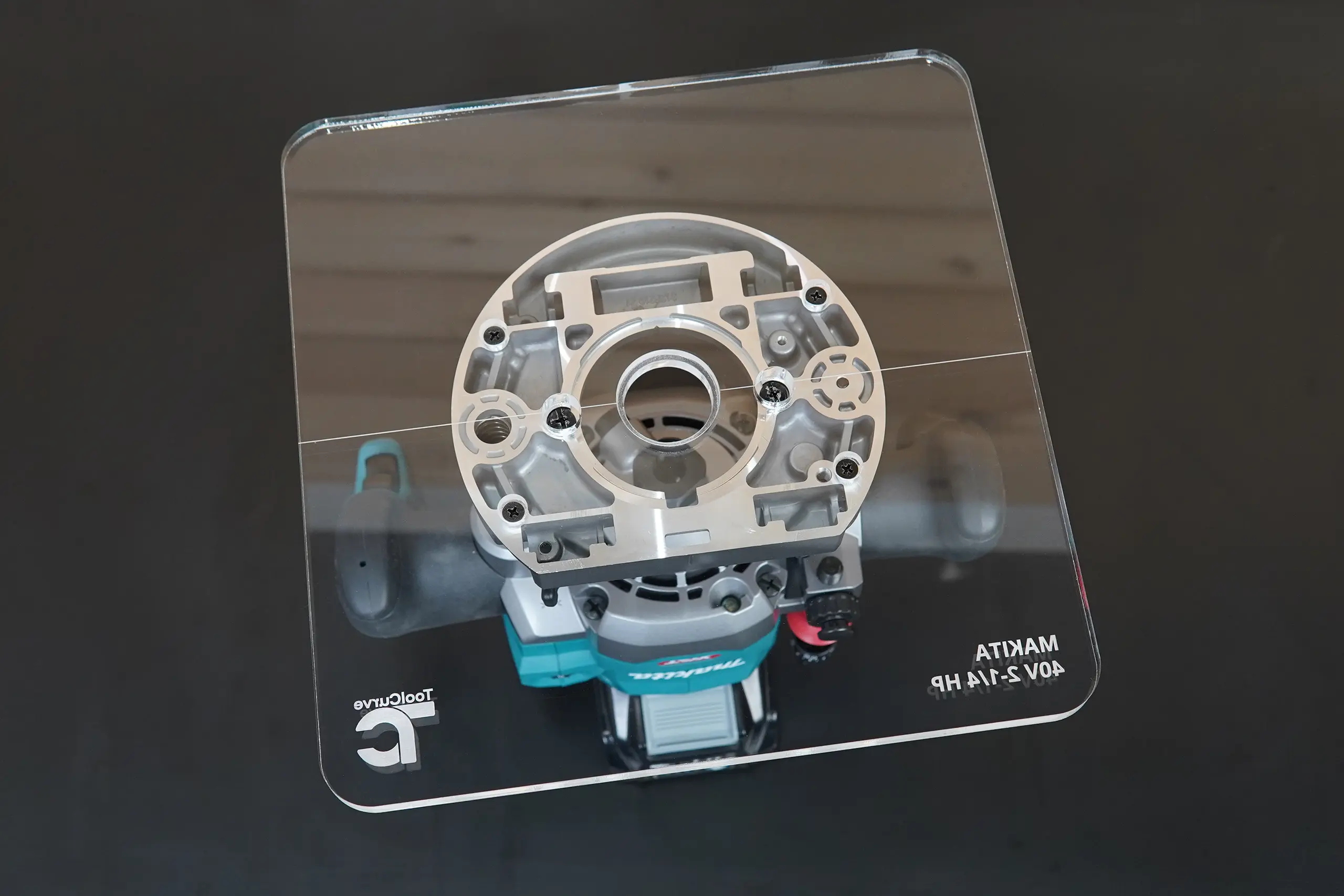

10-inch square acrylic base plate mounted on a Makita 40v router, showing the circular router opening and mounting hardware from above

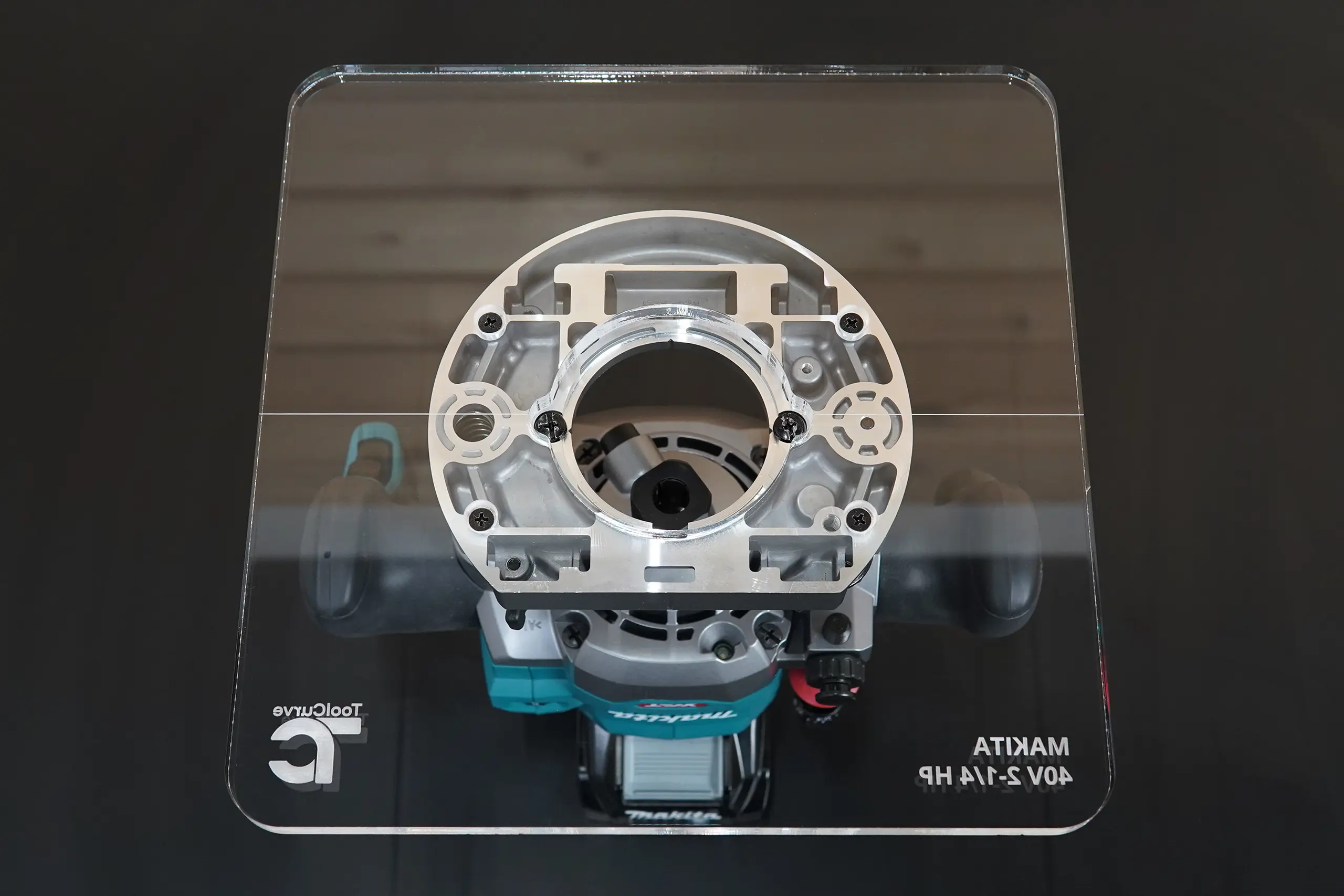

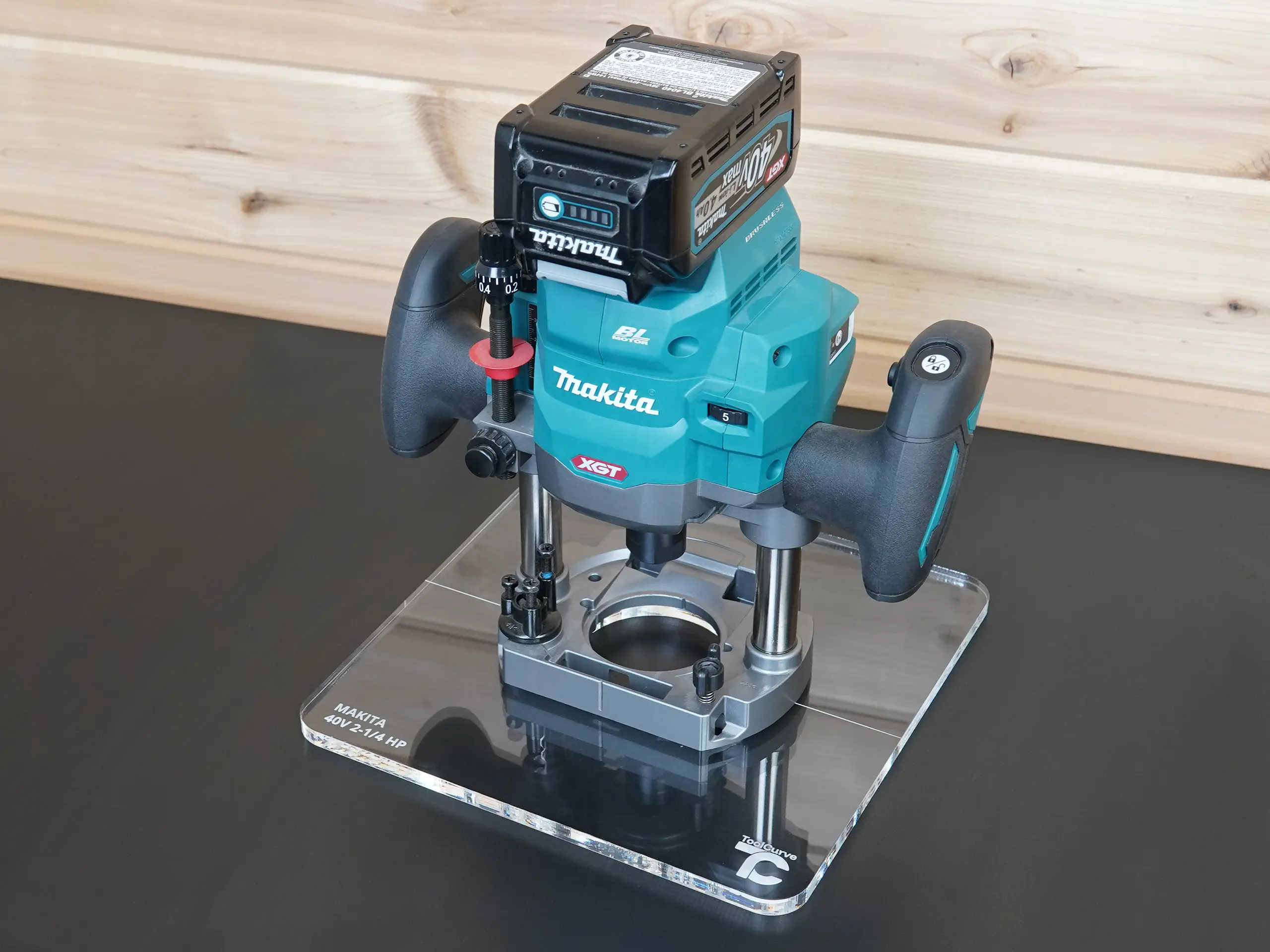

10-inch square clear acrylic router base plate mounted on a Makita 40v 2-1/4 HP cordless router, front view showing the circular bit opening and dual handles

10″ Square Router Base Plate for Makita 40v 2-1/4 HP

$49.95
In Stock Ships from Medina, OH
Arrives Oct 26-29 Order within 10h 8m

Key Features

  • Large 10″ base for added stability
  • Made from durable 3/8″ clear cast acrylic
  • Direct fit for the Makita 40v 2-1/4 HP Cordless Router
  • Choice of guide-bushing or 2″ wide opening
  • Designed & Made in Medina, Ohio

Description

Designed specifically for the Makita 40v 2-1/4 HP cordless router, this 10″ square plate provides a larger routing surface when more support is needed than the factory base provides. It helps keep the router flat and controlled when working near edges, across openings, or on narrow workpieces, while the clear acrylic keeps the bit and layout lines visible.

Base Plate Opening

1″ 1″ 2″ 2″ 3″ 3″ 4″ 4″ Ø2″ Ø1.2″ 10″ × 10″ (254 mm)
Drawn to scale. Mounting holes are illustrative; each plate is drilled for the router in the listing.

One 10″ square plate, both center openings. Hover or tap an opening to compare it, or pick one above.

Selected Guide Bushing Ø1.2″ (30 mm) Takes standard Porter-Cable-style guide bushings and inlay kits. Clears bits up to 1″ with no bushing; with a bushing installed, the bushing’s inside diameter sets the largest bit.

  • 10″ × 10″ square, 254 mm
  • 3/8″ thick, acrylic
  • Pre-drilled for the router in the listing

Specifications

Product specifications
Center Opening Guide Bushing Base Plate

Shipping & Returns

Domestic Shipping
Standard (3-5 days): $6.95
Priority (2 days): $9.95
Free Shipping on orders over $75

Worldwide Shipping
Canada: $18+
EU coming soon.

Return Policy

Returns are accepted within 90 days of the purchase date for items in new or gently used condition with its original packaging.

Product Add-ons

Add-ons total $0.00

Notes

Router, guide bushings and router bits are NOT INCLUDED
