10″ Square Acrylic Base Plate for Makita 2-1/4 HP Router (RF1101)

$49.95
In Stock Ships from Medina, OH
Arrives Aug 27-30 Order within 15h 39m

Key Features

  • Large 10″ base for added stability
  • Made from durable 3/8″ clear cast acrylic
  • Direct fit for the Makita 2-1/4 HP Router (RF1101) plunge & fixed base
  • Choice of guide-bushing or 2″ wide opening
  • Designed & Made in Medina, Ohio

Description

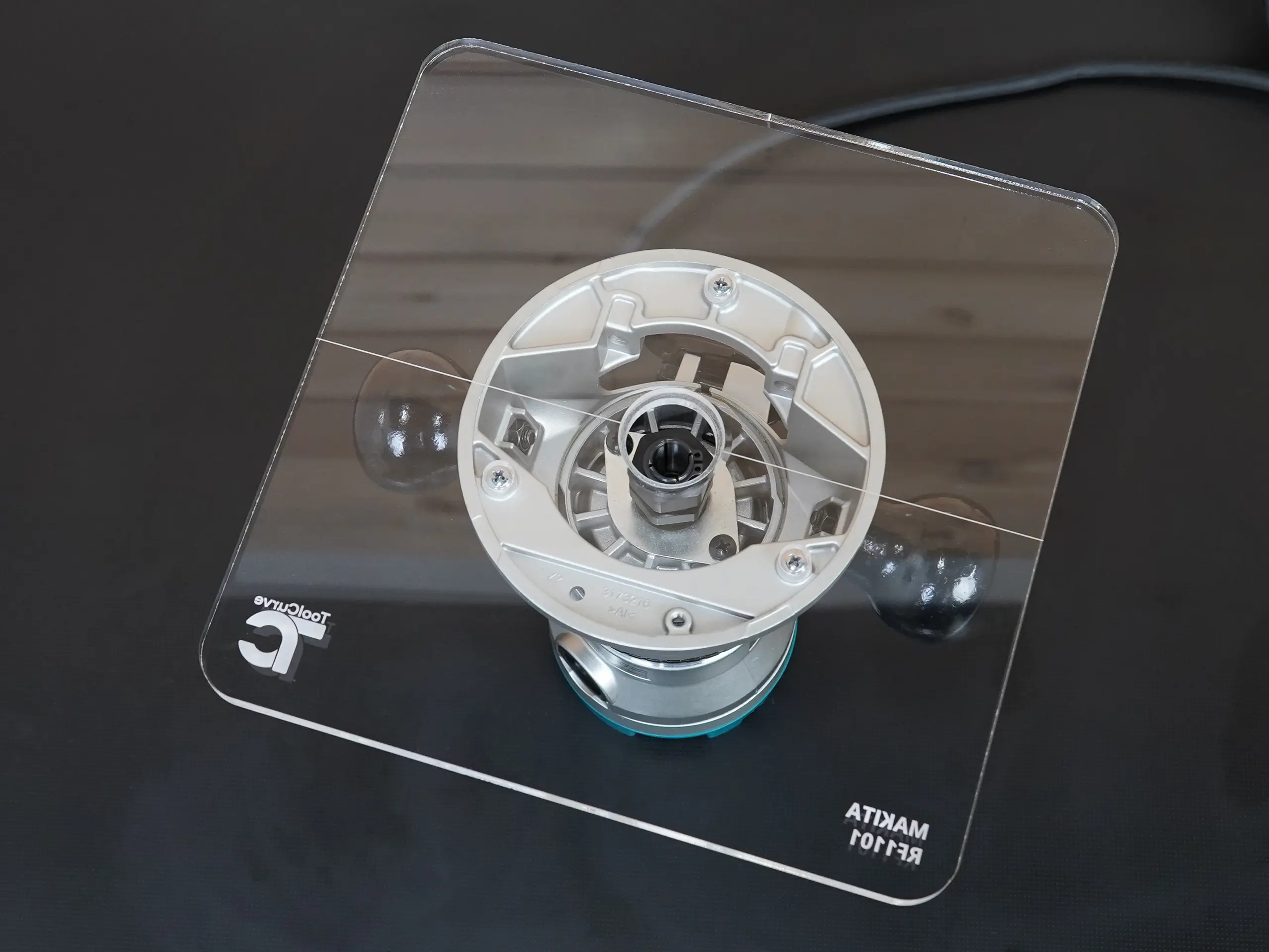

Give your Makita 2-1/4 HP Router (RF1101) a wider, more stable routing surface for smoother, more controlled cuts. Precision-cut from 3/8″ clear cast acrylic, this 10″ router base plate adds support while keeping the bit and layout lines visible.

Base Plate Opening Options

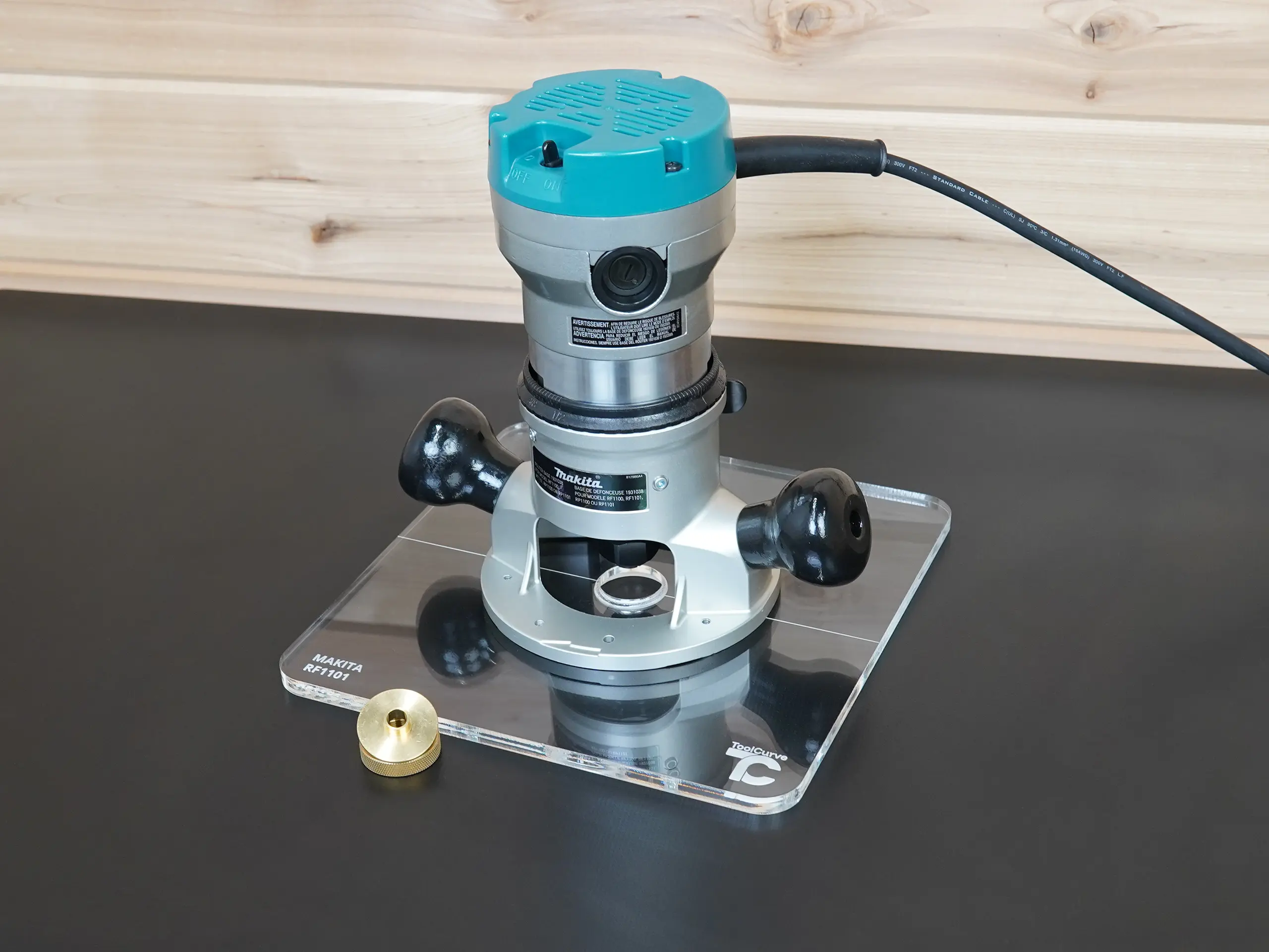

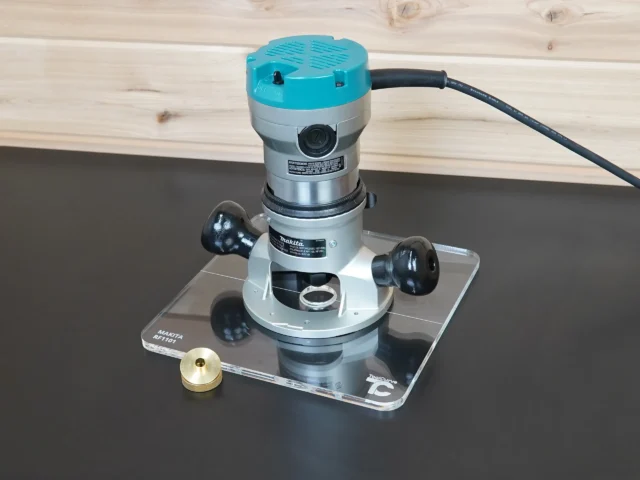

Guide Bushing — 1.2″ Opening

Designed for standard Porter-Cable-style guide bushings and inlay kits, this option is ideal for template routing, inlay work, and other guided cuts. The 1.2″ center opening provides clearance for router bits up to 1″ in diameter.

When a guide bushing is installed, maximum bit diameter is determined by the inside diameter of the selected guide bushing.

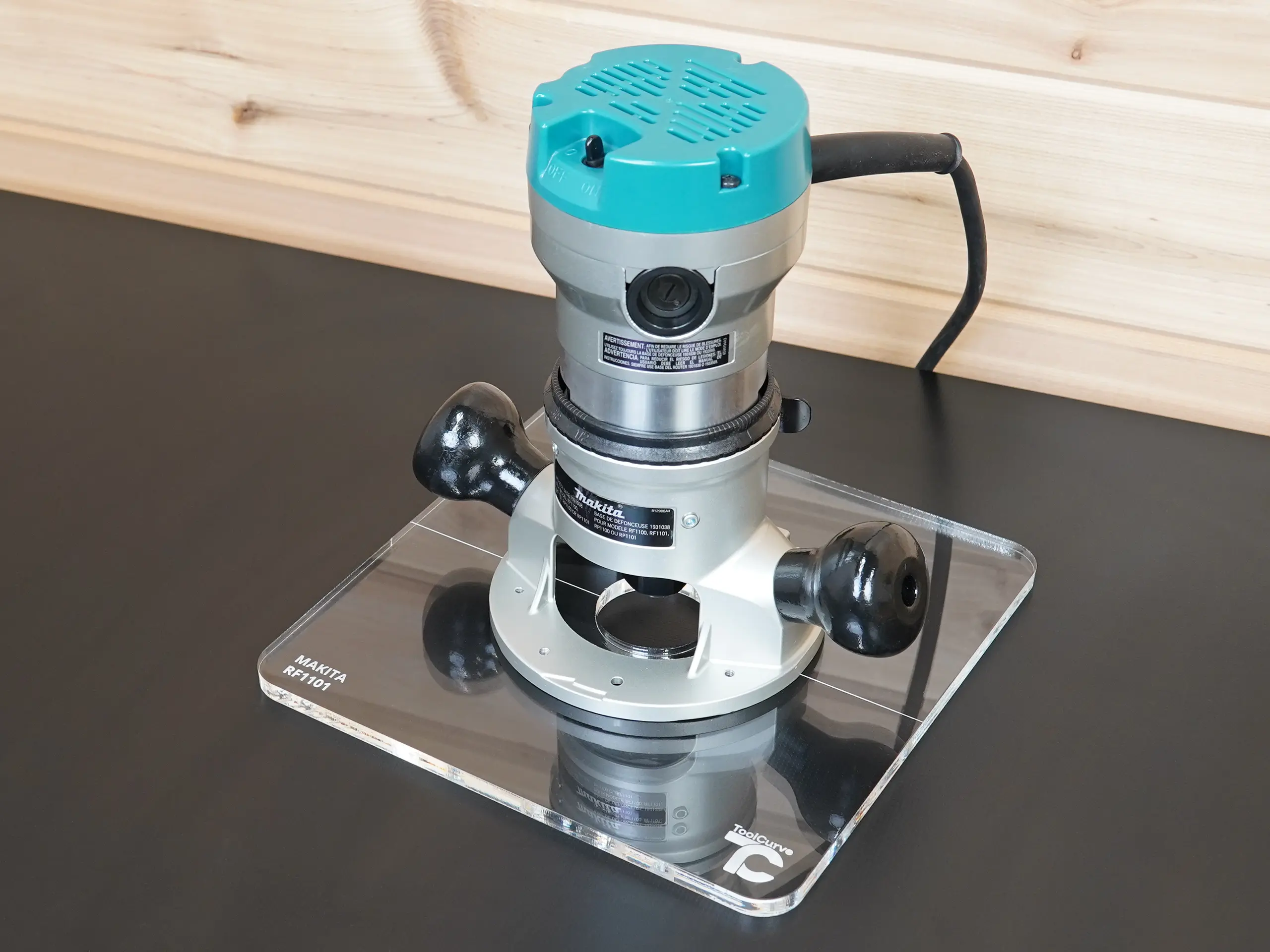

Wide Opening — 2.5″ Opening

Designed for larger-diameter router bits when a guide bushing is not needed. The 2.5″ center opening provides increased bit clearance while retaining the support and stability of the full-size acrylic base plate.

This option is not compatible with Porter-Cable-style guide bushings.

Quick Comparison

Comparison of Guide Bushing and Wide Opening base plate options
Feature Guide Bushing Wide Opening
Center opening 1.2″ 2.5″
Porter-Cable-style guide bushings Yes No
Best for Templates, inlays, guided routing Larger-diameter router bits

When a guide bushing is installed, maximum bit diameter is determined by the inside diameter of the selected guide bushing.

Specifications

Product specifications
Center Opening Guide Bushing Base Plate

Shipping & Returns

Domestic Shipping
Standard (3-5 days): $6.95
Priority (2 days): $9.95
Free Shipping on orders over $75

Worldwide Shipping
Canada: $18+
EU coming soon.

Return Policy

Returns are accepted within 90 days of the purchase date for items in new or gently used condition with its original packaging.

Product Add-ons

Add-ons total $0.00

Notes

Router, guide bushings and router bits are NOT INCLUDED
