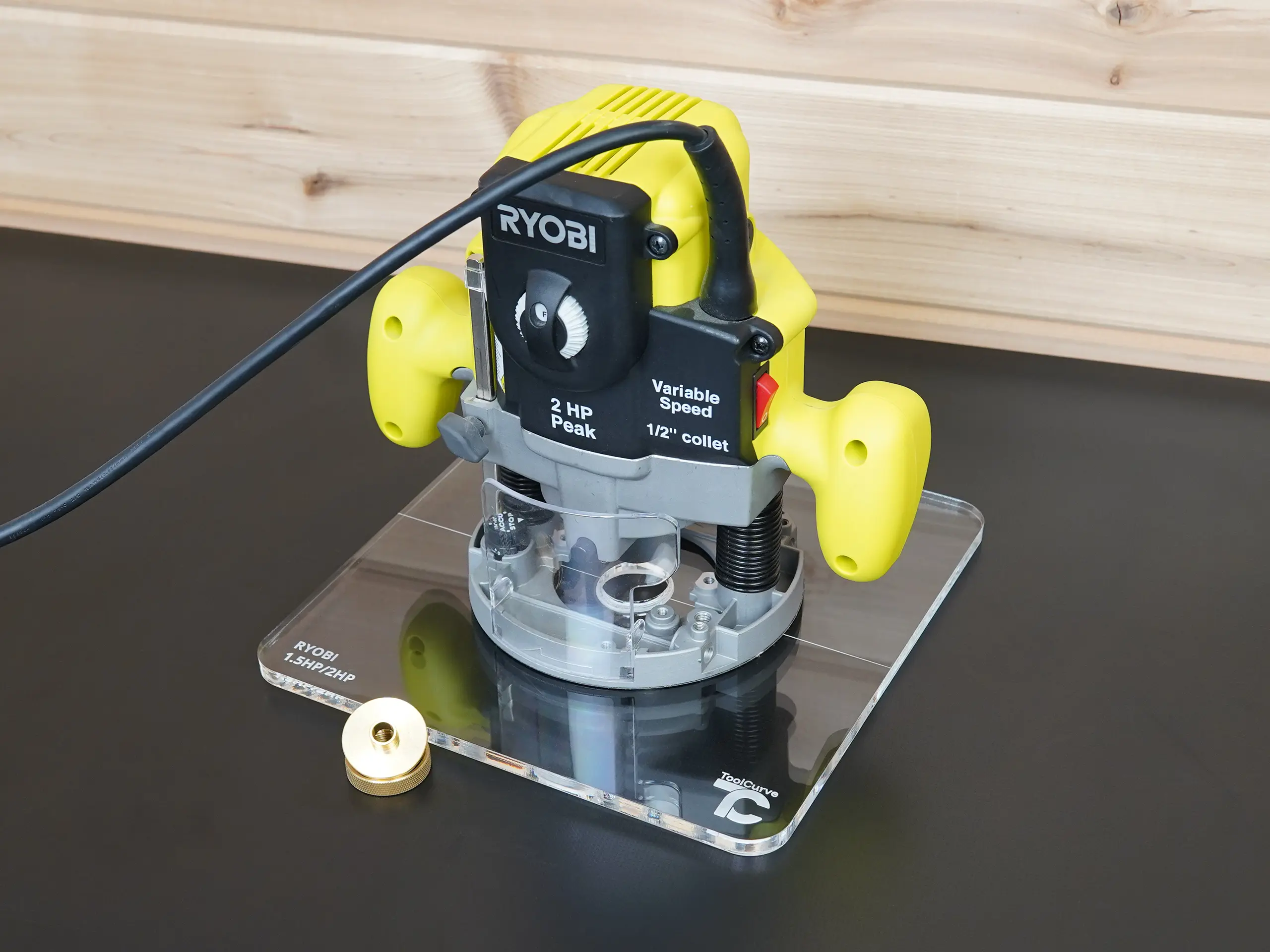

Ryobi 2 HP plunge router mounted on a 10-inch clear acrylic square base plate with brass guide bushing beside it

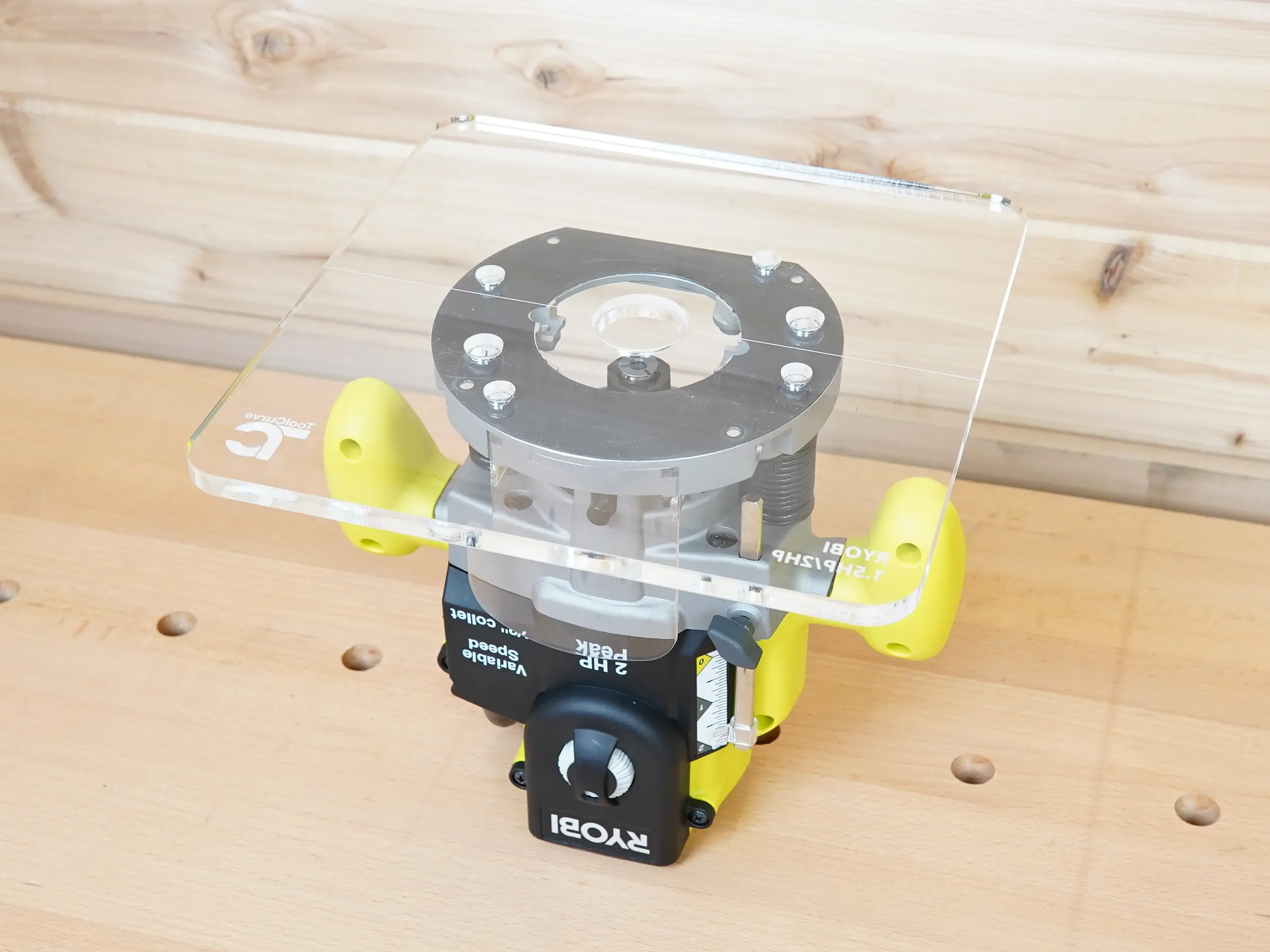

10" square clear acrylic base plate mounted on Ryobi 2 HP plunge router, shown from above on pegboard workbench

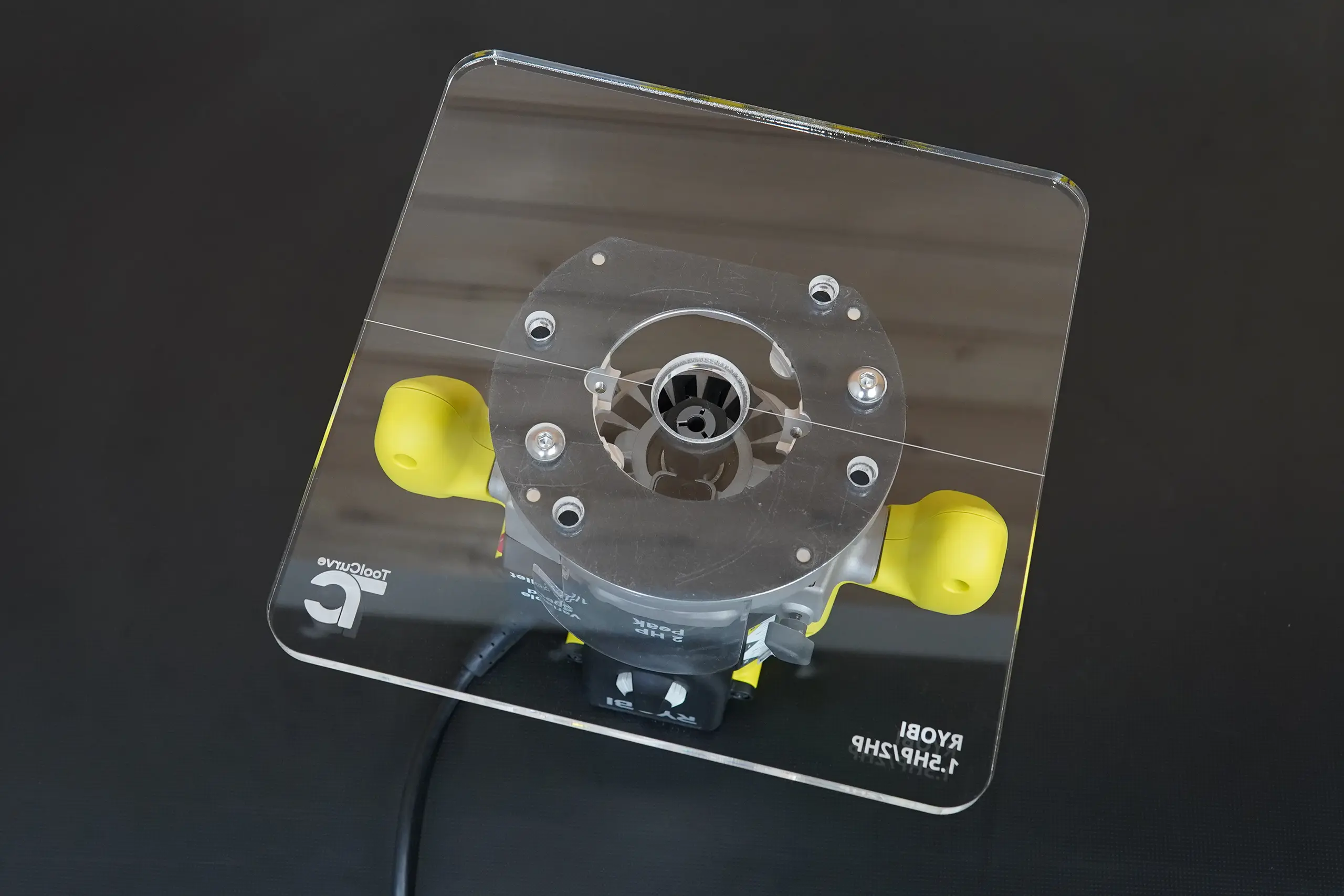

Clear acrylic base plate mounted on a yellow Ryobi 2 HP plunge router, showing the 10-inch square platform with mounting holes and centered opening for the bit

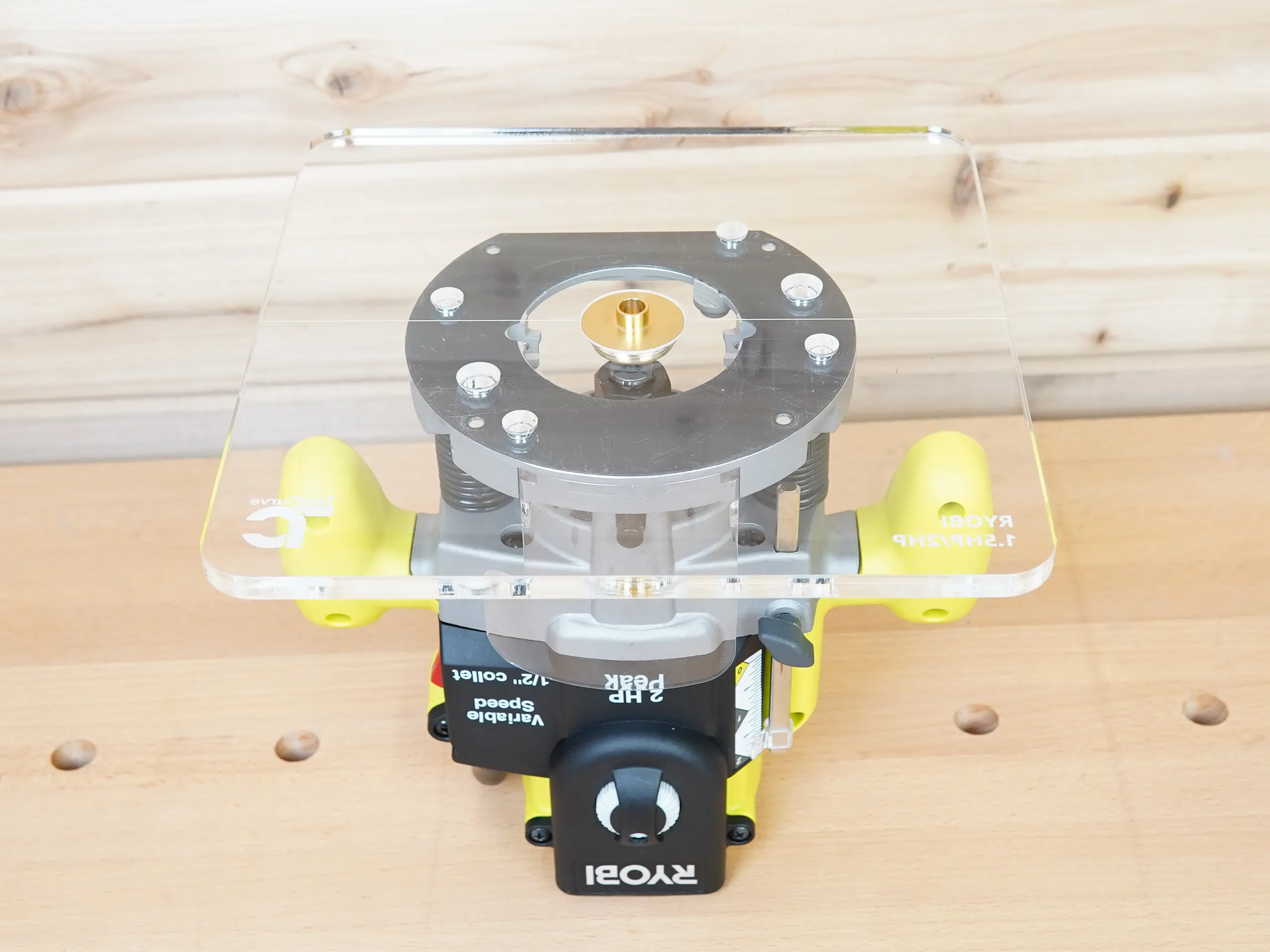

Clear acrylic square base plate mounted on a Ryobi 2 HP plunge router, showing the bit opening and mounting holes, with a yellow dust shroud attached above.

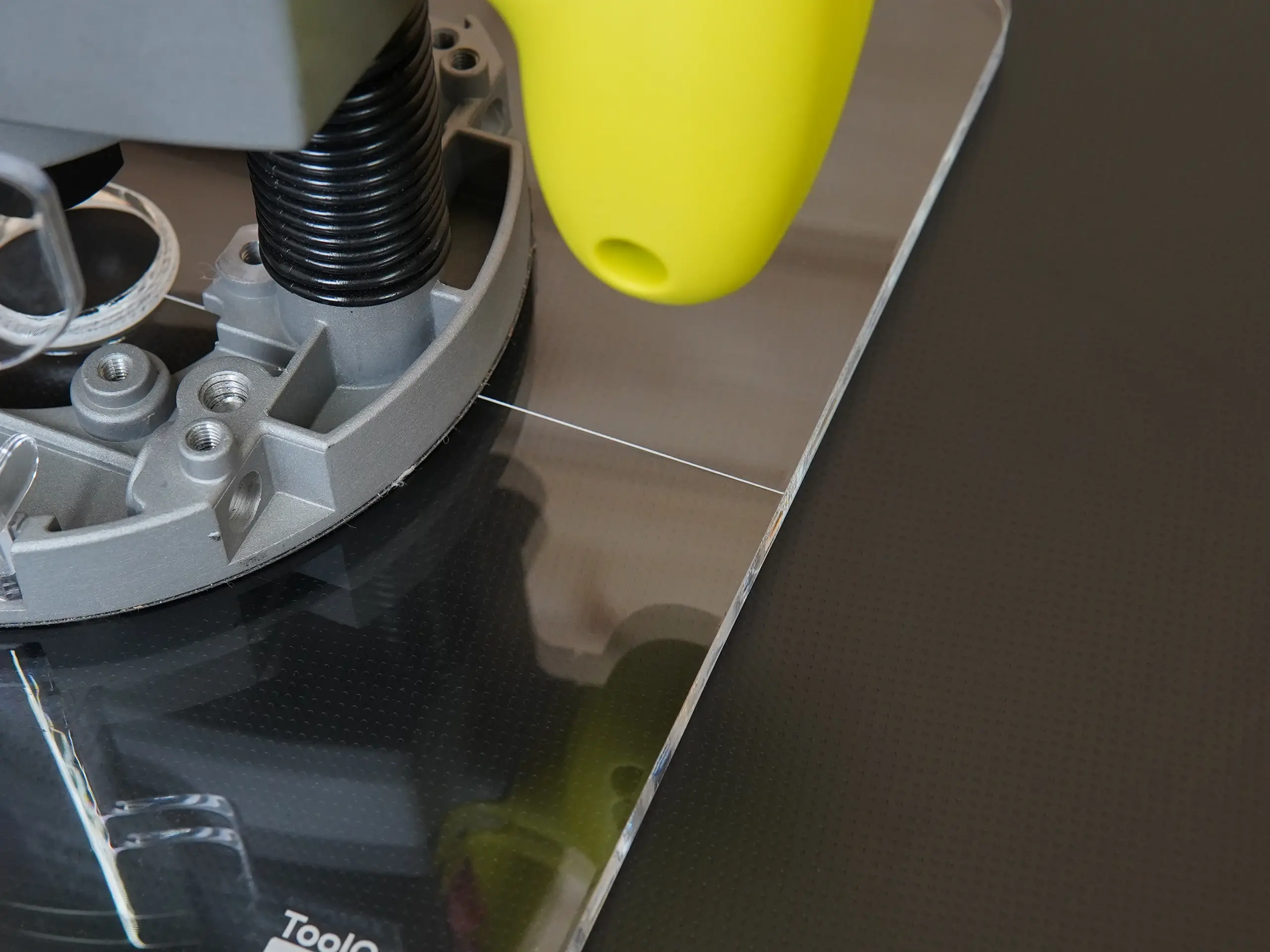

10-inch square clear acrylic base plate mounted on Ryobi 2 HP plunge router, showing central bit opening, mounting holes, and yellow adjustment knobs on sides

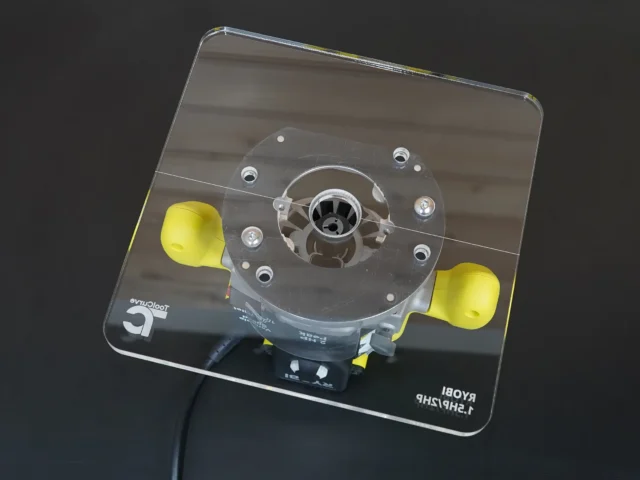

10″ Square Acrylic Base Plate for Ryobi 2 HP Plunge Router

Current price is: $39.96.Original price was: $49.95.
In Stock Ships from Medina, OH
Arrives Oct 15-18 Order within 1d 8h

Key Features

  • Large 10″ base for added stability
  • Made from durable 3/8″ clear cast acrylic
  • Direct fit for the Ryobi 2 HP plunge & fixed base
  • Choice of guide-bushing or 2″ wide opening
  • Designed & Made in Medina, Ohio

Description

Give your Ryobi 2 HP Plunge Router a wider, more stable routing surface for smoother, more controlled cuts. Precision-cut from 3/8″ clear cast acrylic, this 10″ router base plate adds support while keeping the bit and layout lines visible.

Base Plate Opening Options

Guide Bushing — 1.2″ Opening

Designed for standard Porter-Cable-style guide bushings and inlay kits, this option is ideal for template routing, inlay work, and other guided cuts. The 1.2″ center opening provides clearance for router bits up to 1″ in diameter.

When a guide bushing is installed, maximum bit diameter is determined by the inside diameter of the selected guide bushing.

Wide Opening — 2″ Opening

Designed for larger-diameter router bits when a guide bushing is not needed. The 2″ center opening provides increased bit clearance while retaining the support and stability of the full-size acrylic base plate.

This option is not compatible with Porter-Cable-style guide bushings.

Quick Comparison

Comparison of Guide Bushing and Wide Opening base plate options
Feature Guide Bushing Wide Opening
Center opening 1.2″ 2″
Porter-Cable-style guide bushings Yes No
Best for Templates, inlays, guided routing Larger-diameter router bits

When a guide bushing is installed, maximum bit diameter is determined by the inside diameter of the selected guide bushing.

Specifications

Product specifications
Center Opening Guide Bushing Base Plate

Shipping & Returns

Domestic Shipping
Standard (3-5 days): $6.95
Priority (2 days): $9.95
Free Shipping on orders over $75

Worldwide Shipping
Canada: $18+
EU coming soon.

Return Policy

Returns are accepted within 90 days of the purchase date for items in new or gently used condition with its original packaging.

Product Add-ons

Black angled ToolCurve hose adapter with blue collar in foreground, plunge router with hose connected behind
Hose Adapter for Bosch 1617 Plunge Router
Hose Size
Current price is: $19.96.Original price was: $24.95.
Add-ons total $0.00

Notes

Router, guide bushings and router bits are NOT INCLUDED

Frequently Asked Questions

Do your base plates fit any router, or do I need the one made for my model?

You need the plate made for your router. Every listing names the router it fits, and we make plates for Bosch, Dewalt, Makita, Milwaukee, Porter Cable, Ridgid, Ryobi, Skil, Kreg, Kobalt, Craftsman, Wen, Flex, Hercules, Metabo, Avid Power and the OF 1010. Some brands have more than one listing (the Bosch Colt 1 HP, 1.25 HP and 18V trim routers each get their own 6″ plate, for example), so match the exact model in the title. If your router is not listed, contact us before ordering.

How far does the extended base plate reach past the bit?

120mm (about 4-3/4″) from the center of the cut line. The extended base plates for the Dewalt, Makita, Milwaukee, Ridgid and Ryobi trim routers are replacement bases that add stability and support for trim work, and the extra surface contact suits round over and chamfer bits.
