Hose Adapter for Kreg Foreman Pocket-Hole Machine
Key Features
- Connects your Kreg Foreman Pocket-Hole Machine to a shop vac
- Fits 27mm, 36mm, 1-1/4″, 1-7/8″ & 2-1/2″ hoses
- Made from durable high-density plastic
- Clearly labeled by tool & hose size
- Designed & Made in Medina, Ohio
Description

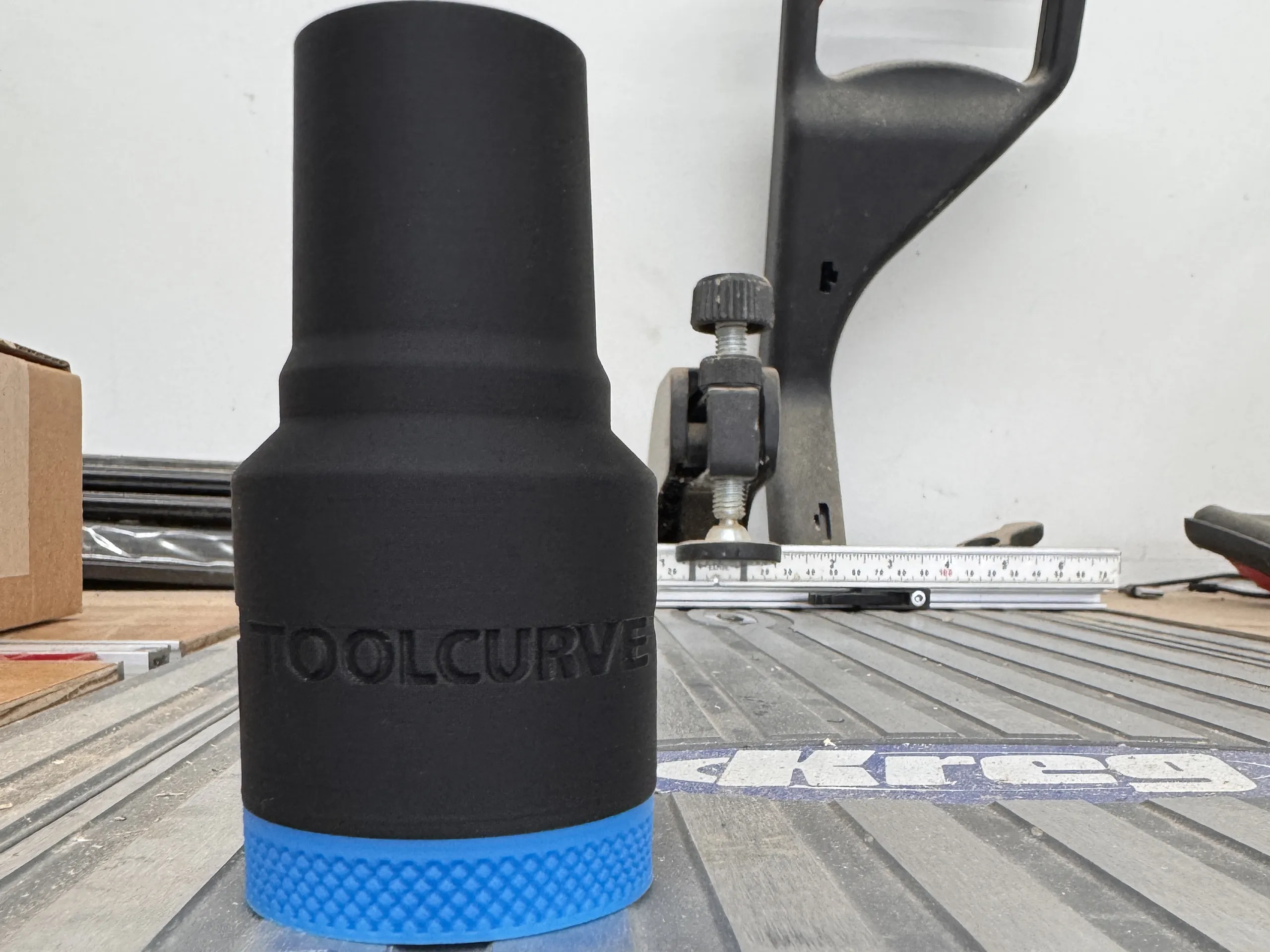

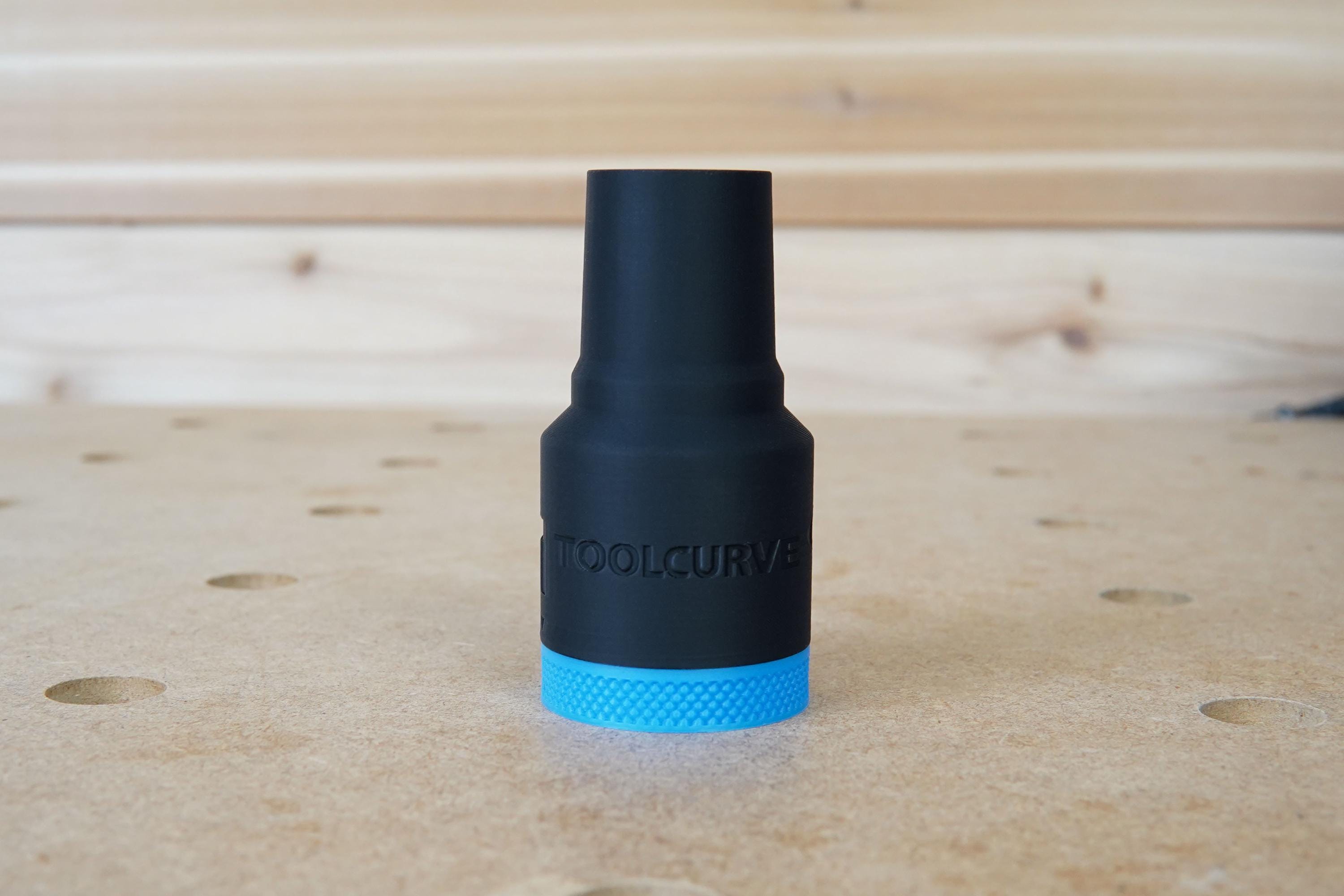

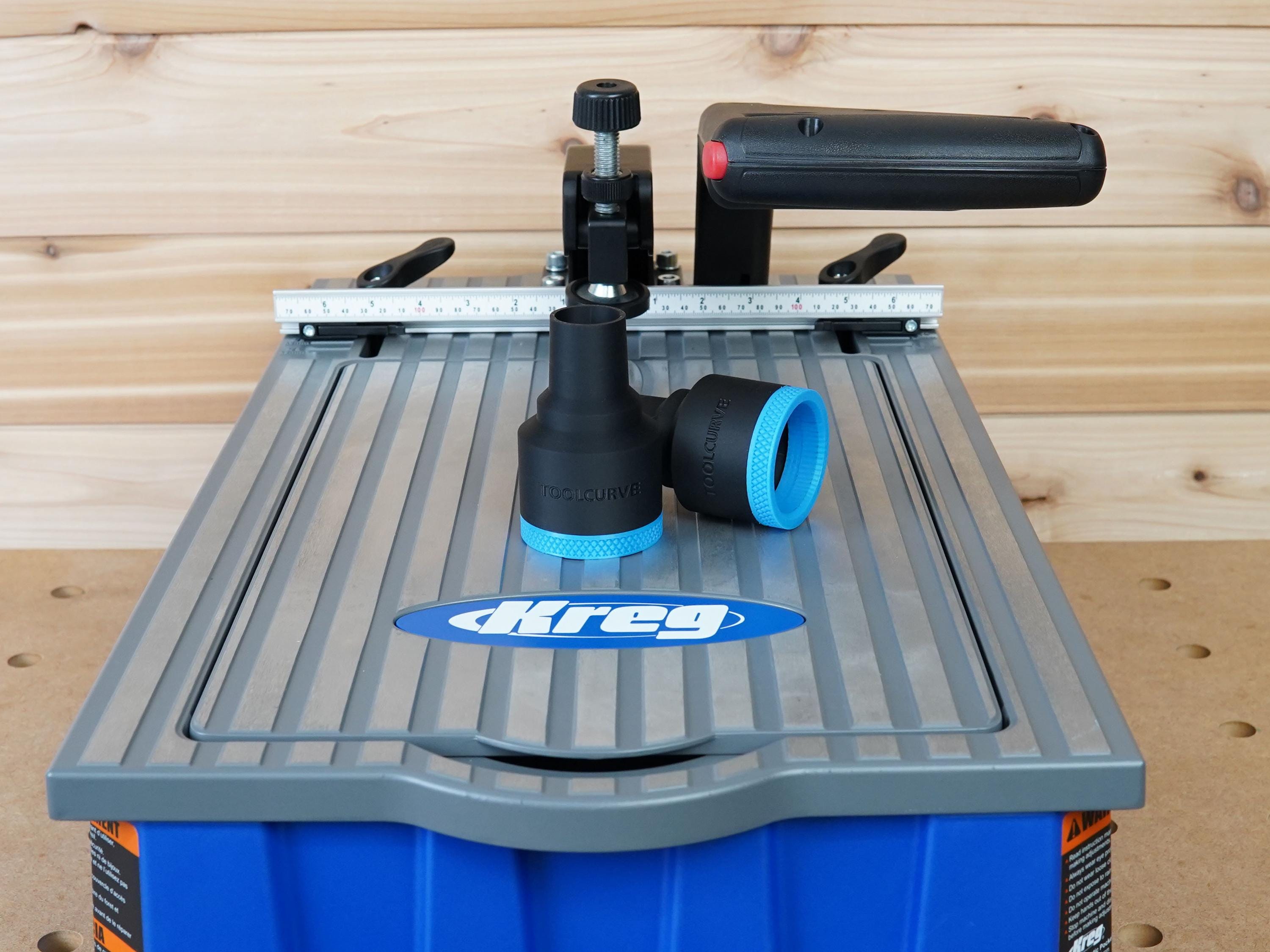

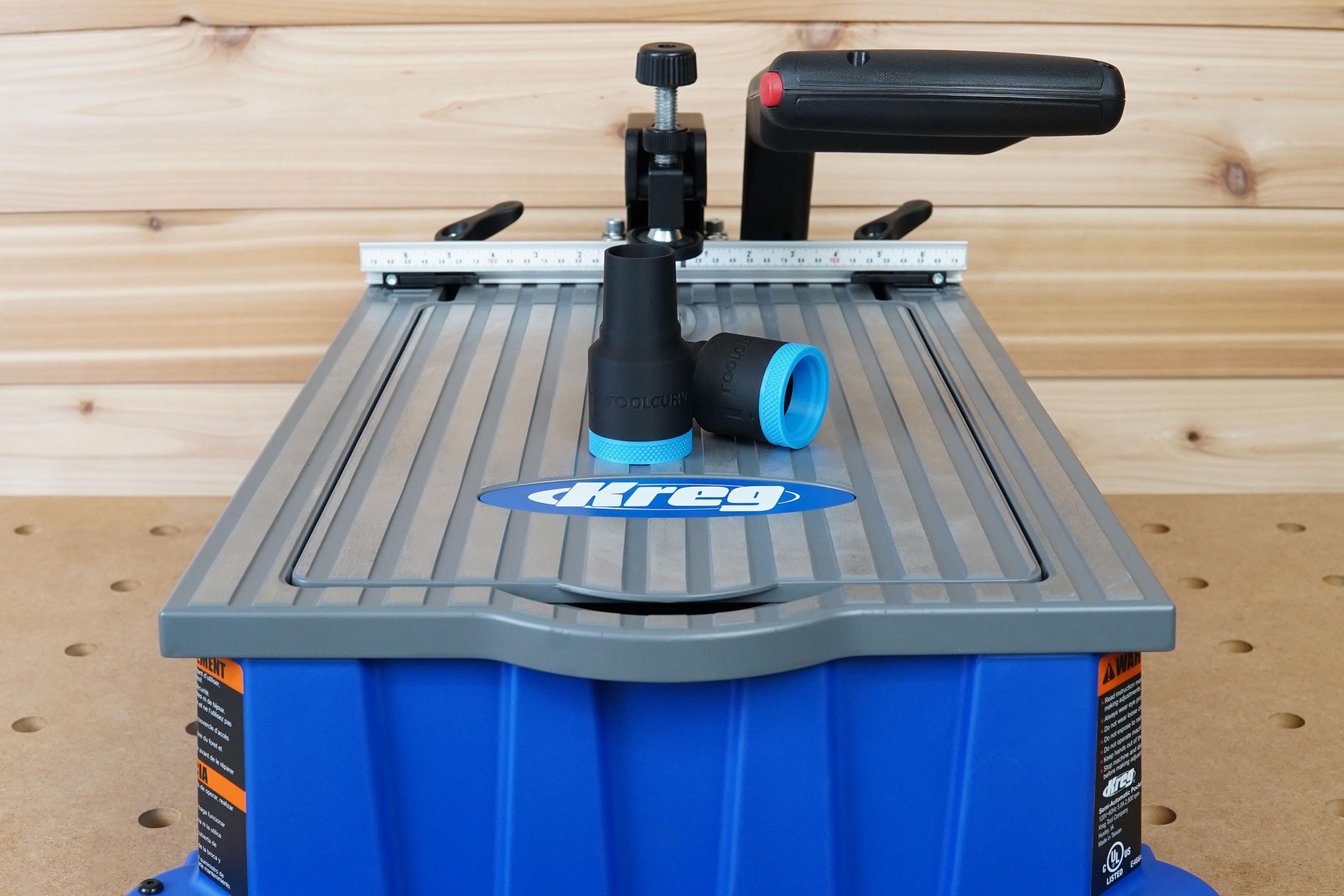

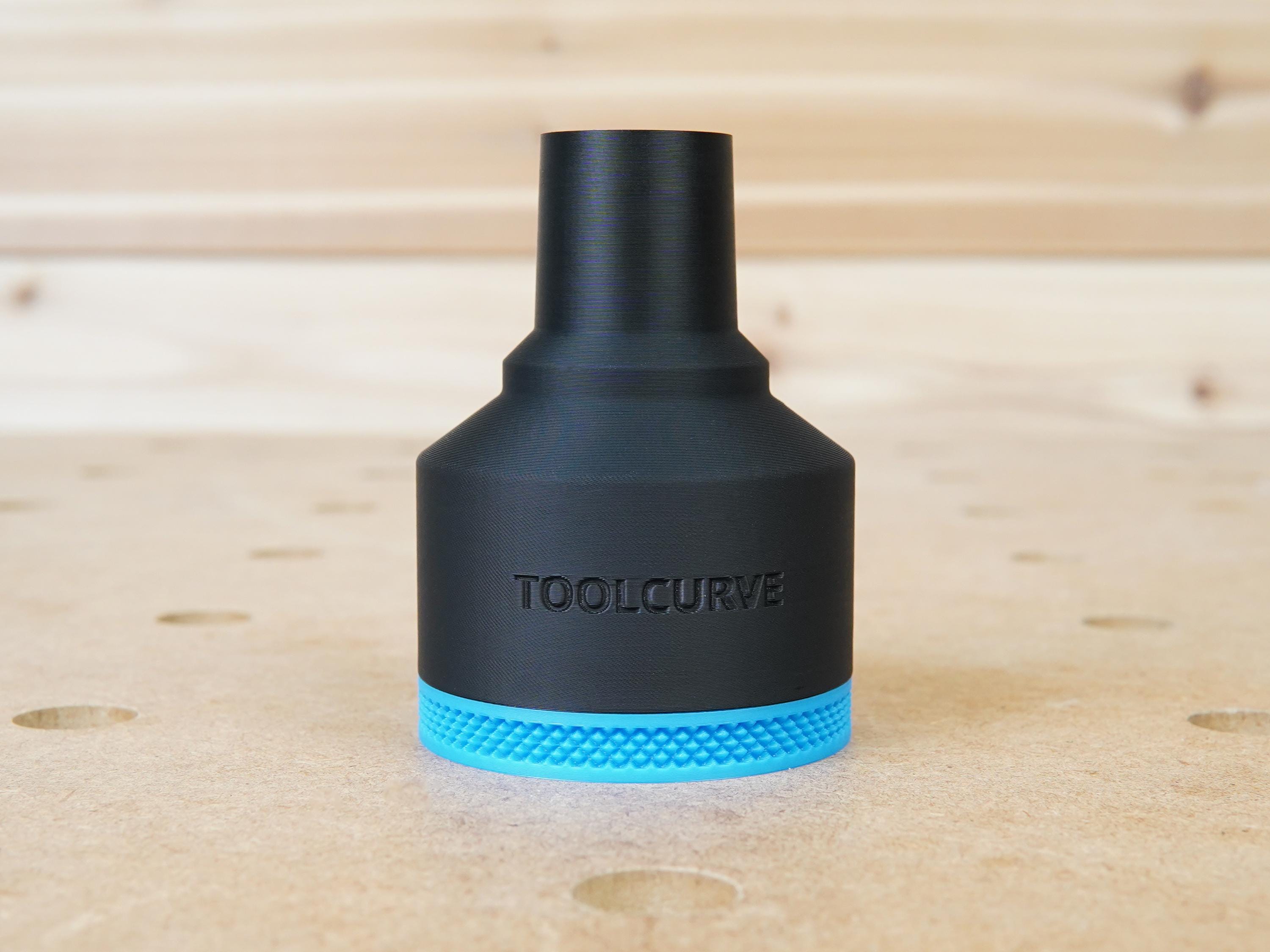

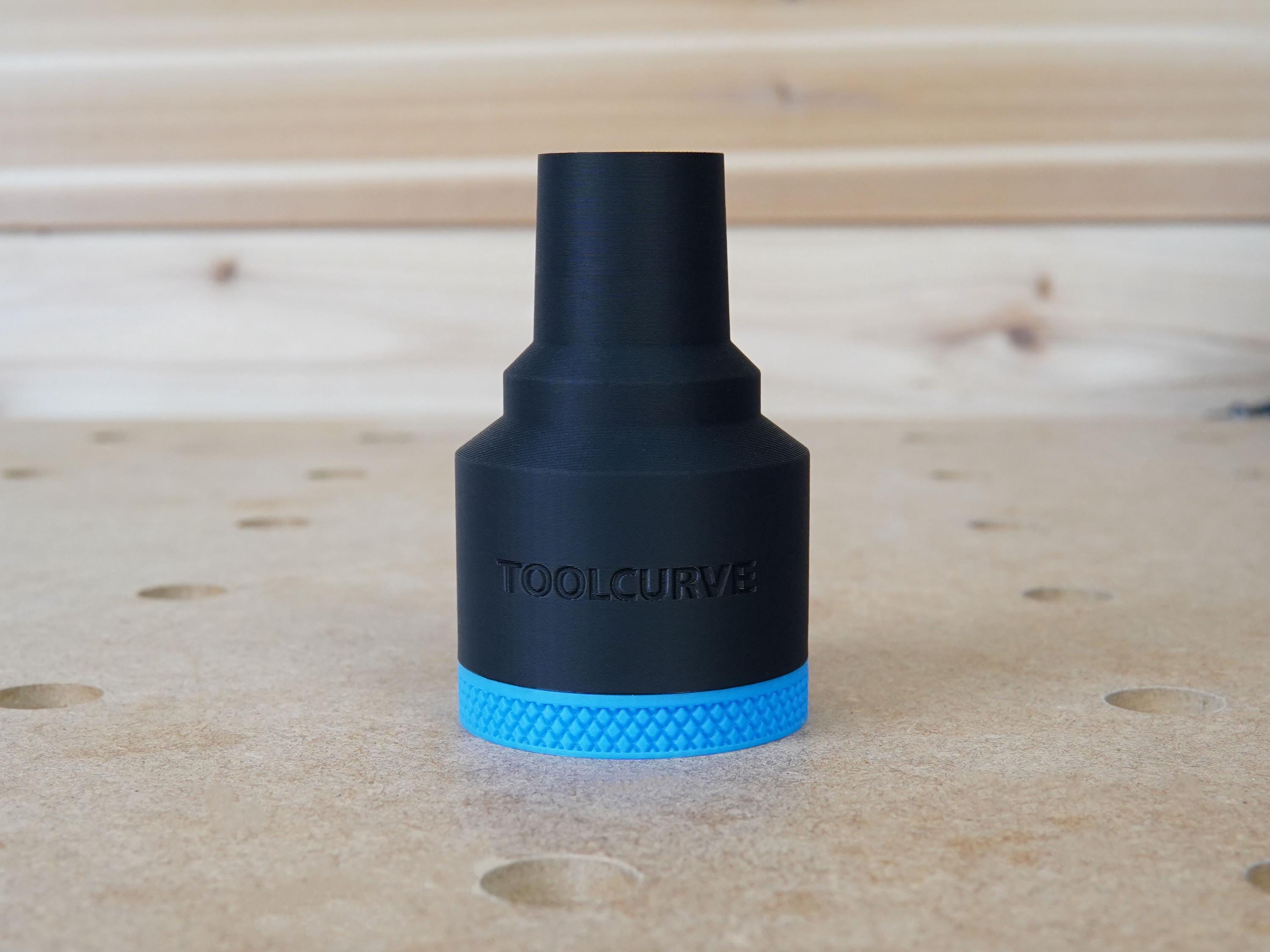

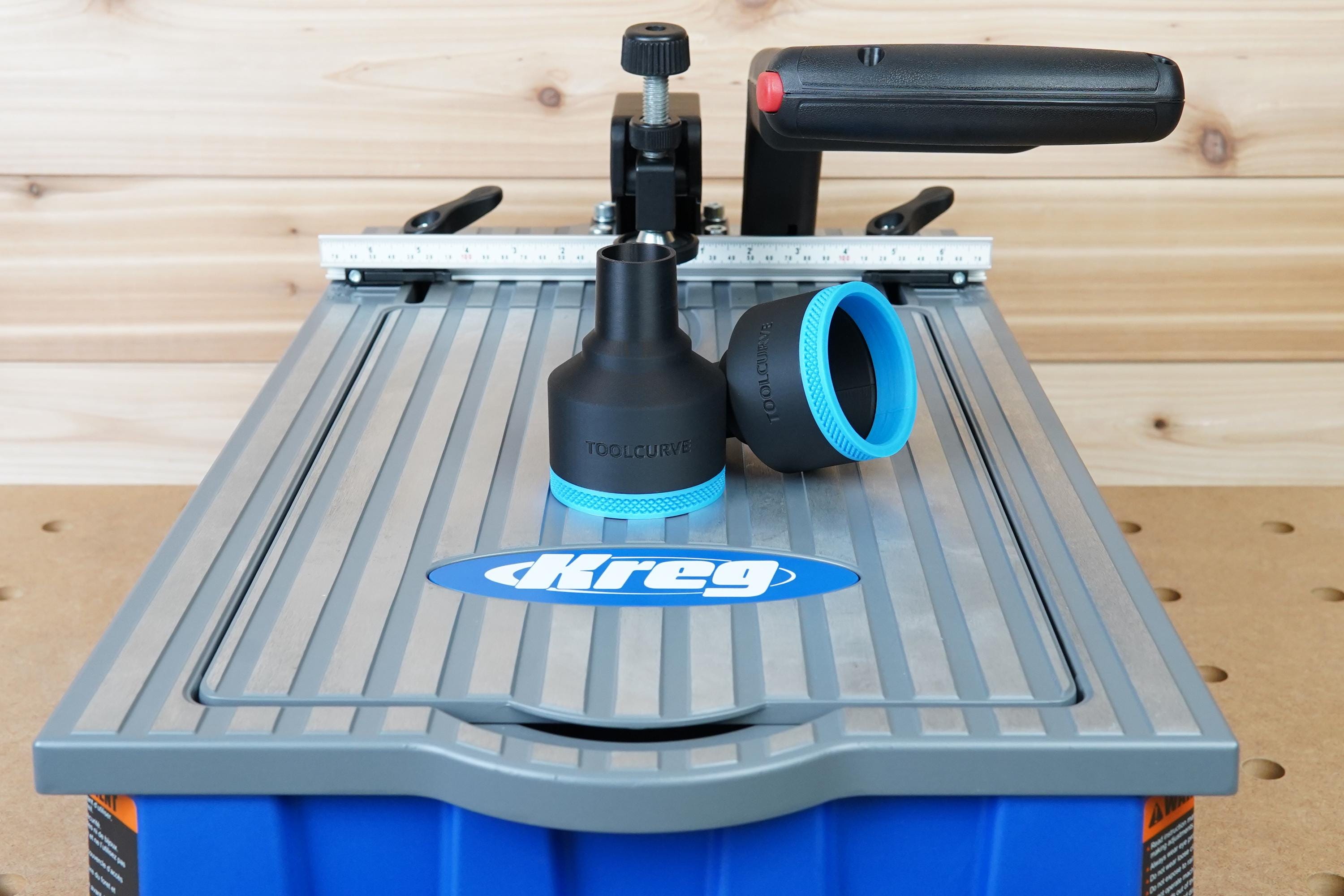

ToolCurve hose adapter for Kreg foreman. This adapter allows you to use your dust extractor hose with your Kreg foreman rear dust port.
Adapter Measurements
The end that fits your Kreg Foreman Pocket-Hole Machine. Select a number to see where it is measured.
Hose Size Details
Measure across the outside of the end you plug in. Tap a hose size to see what it looks like and where it is measured. The number under each size is the outside of that end.

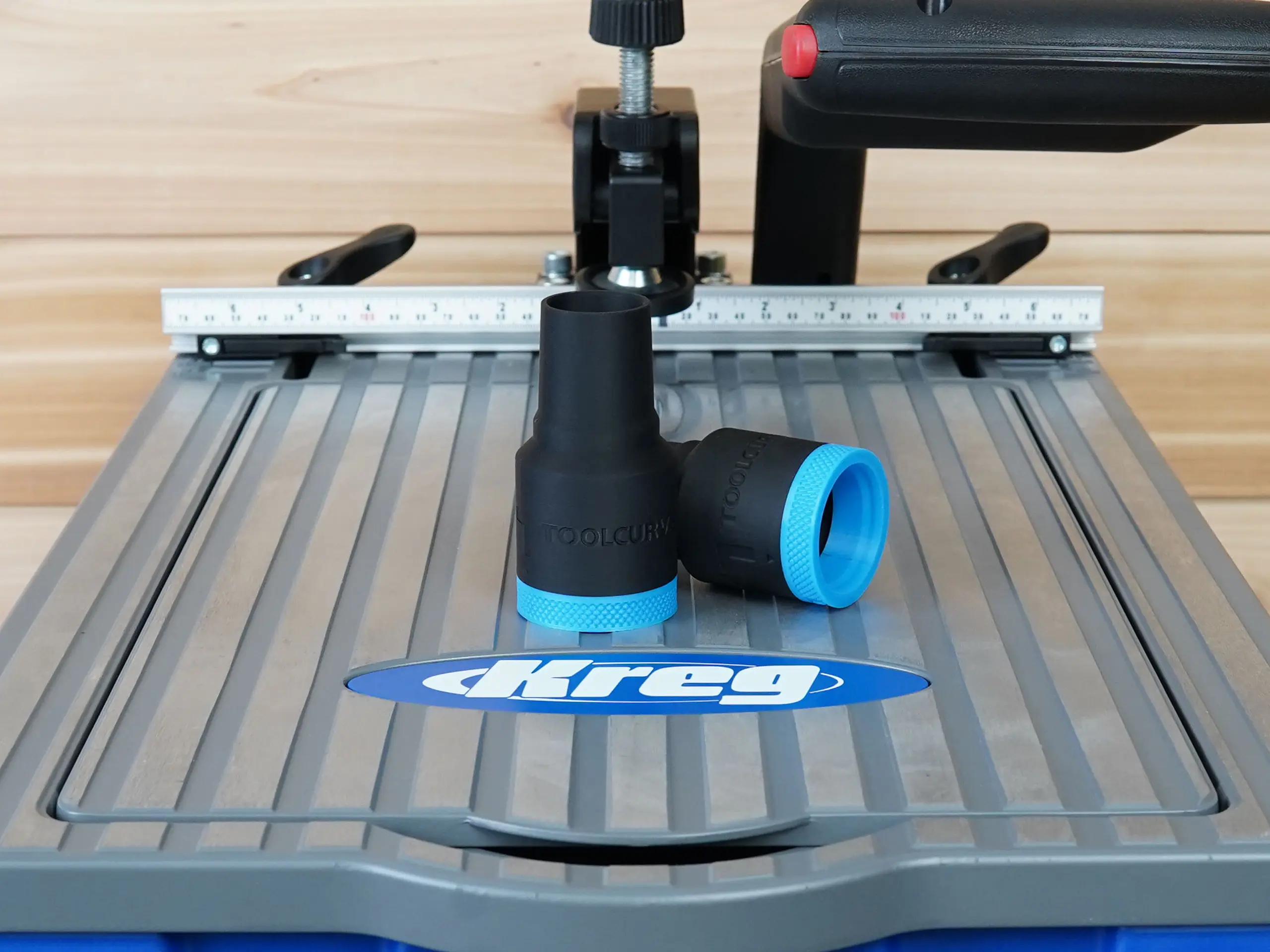

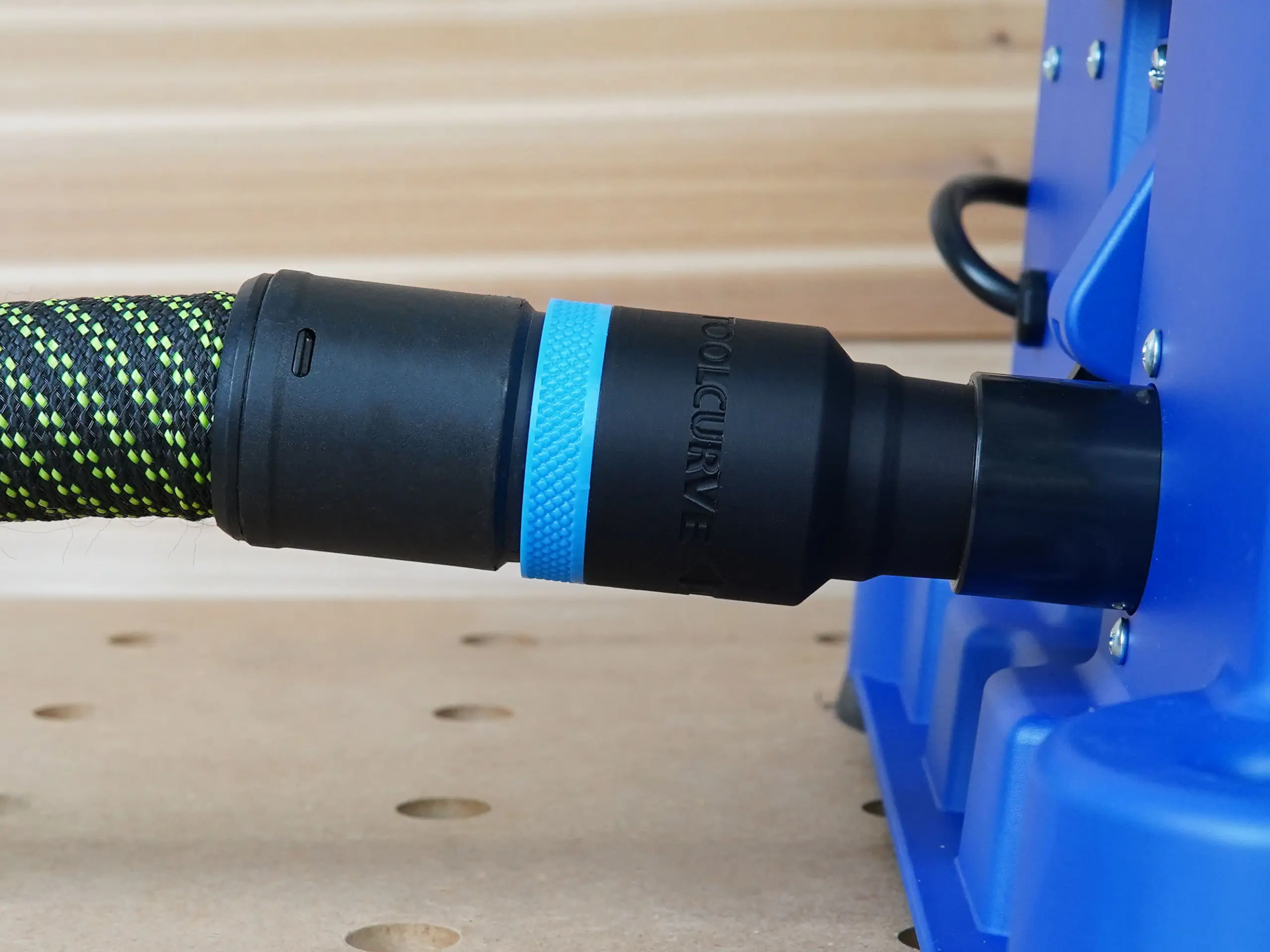

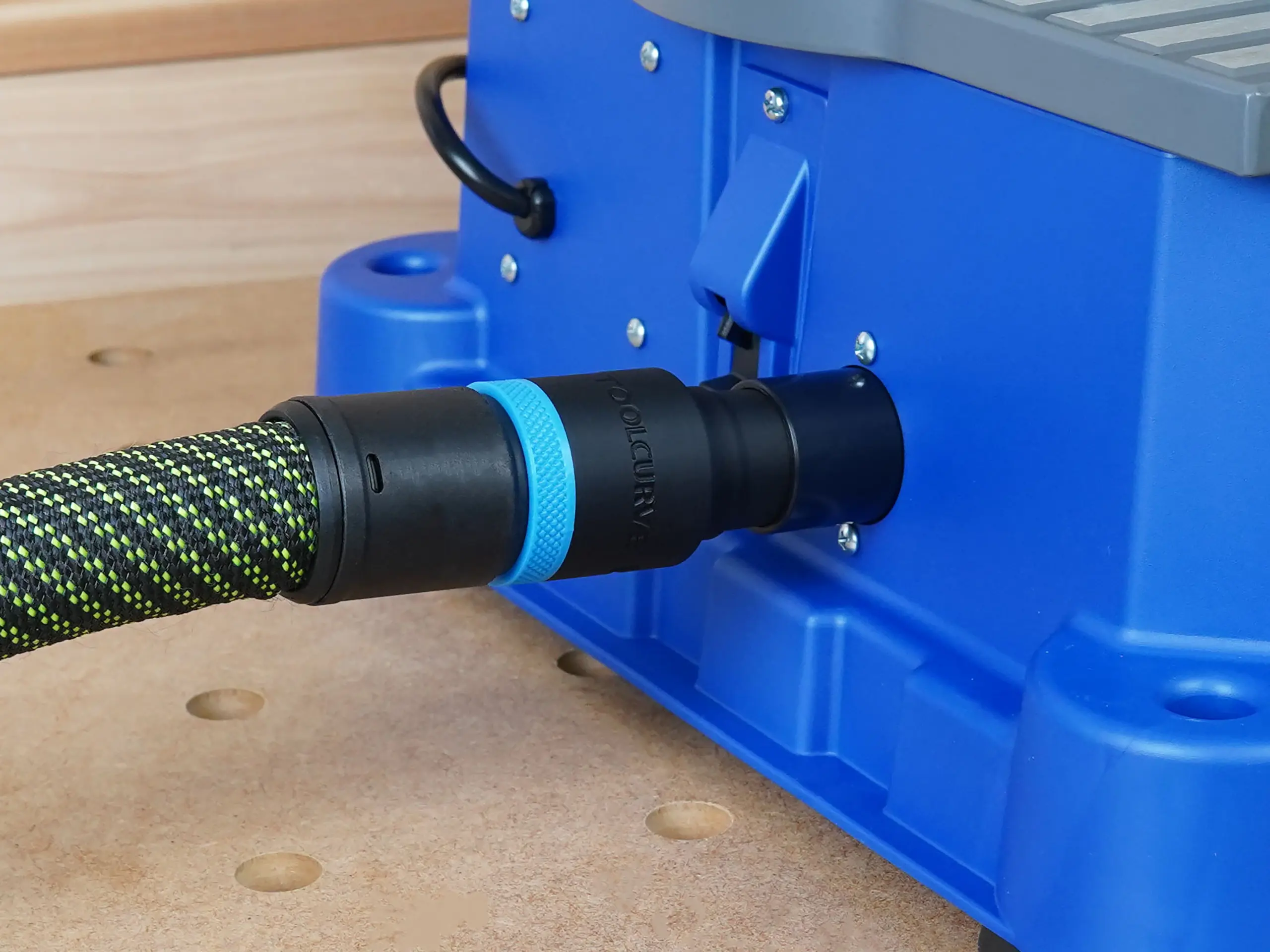

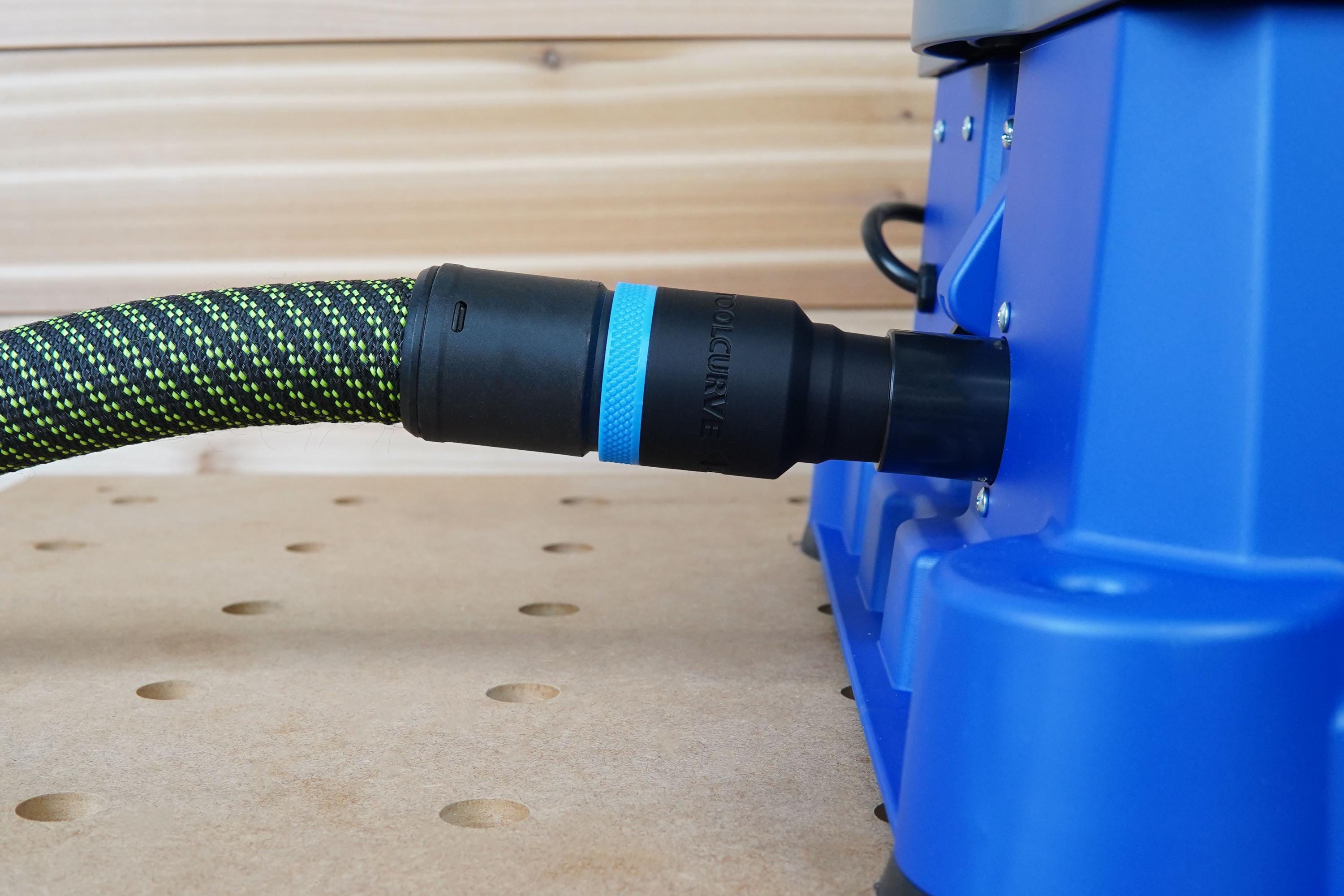

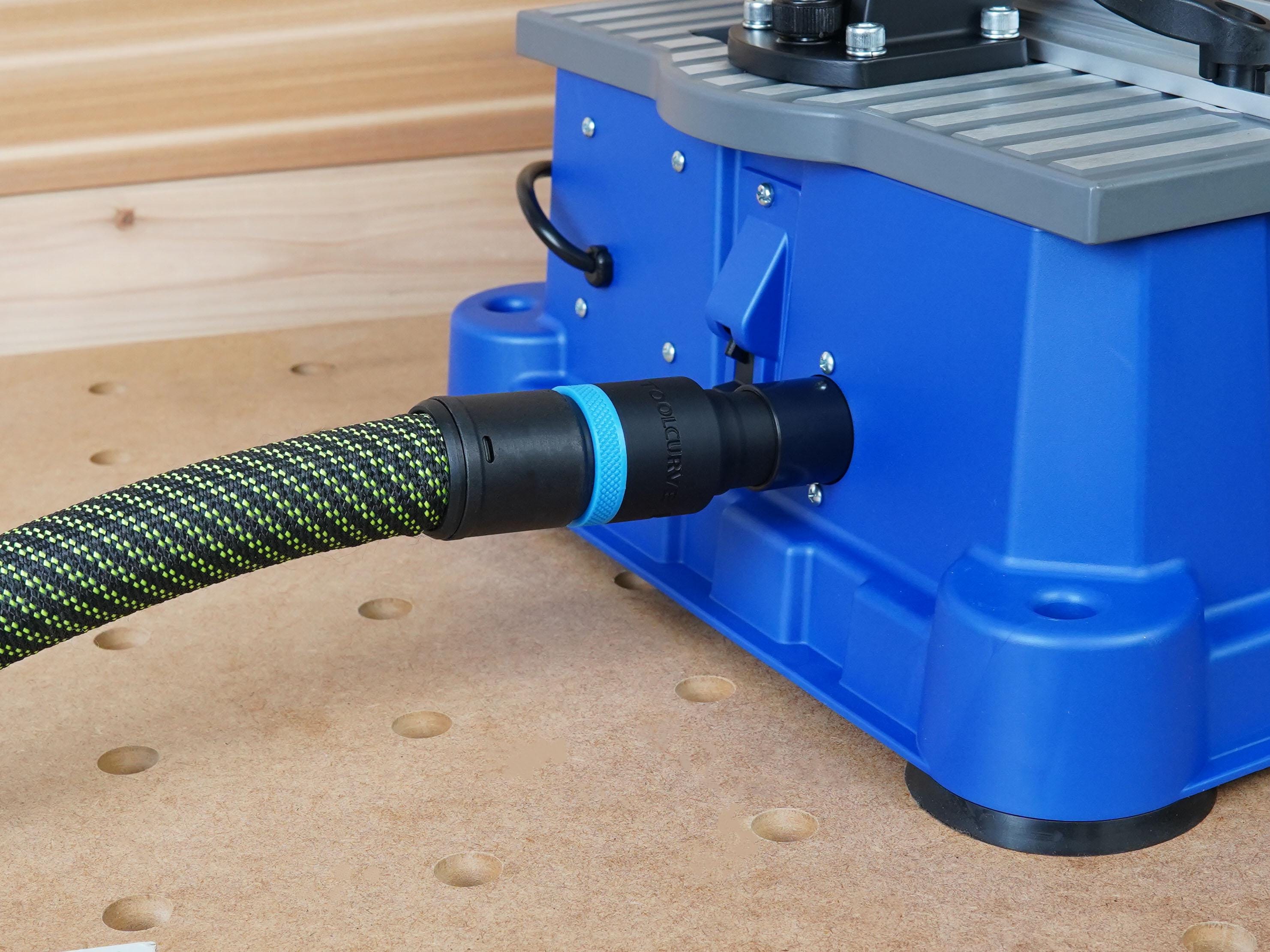

Hose Size: 27mm Hose
27mm Hose
SelectedGreen and black sleeve with a black twist-lock end.
- Outside, across the end
- ≈ 36 mm1.42 in
SelectedViewing The 27 mm in the name is the inside of the hose itself. The end you plug in measures about 36 mm1.42 in across the outside.
Compare the end of your hose to the picture and the measurement. If both match, this is your size.

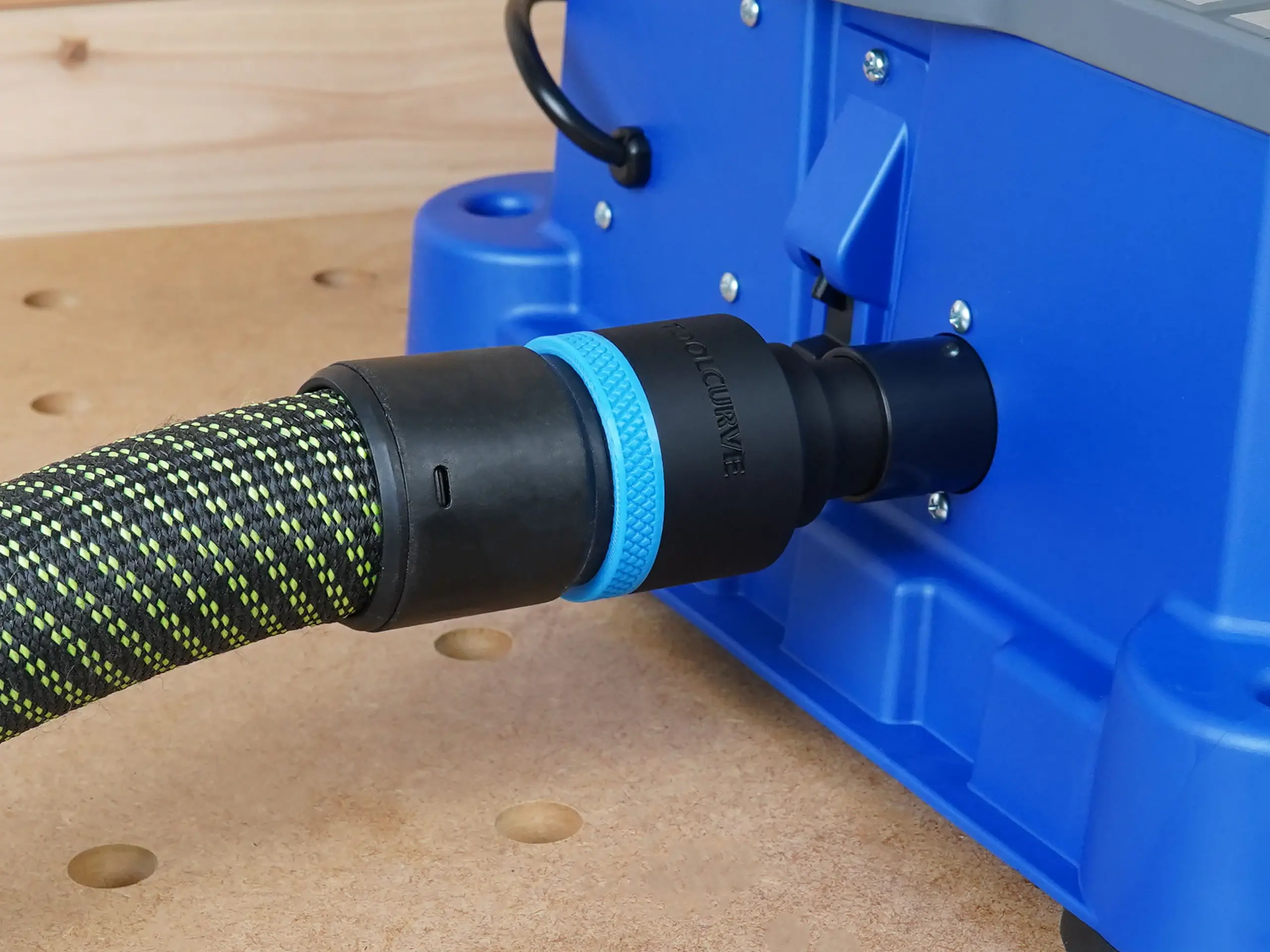

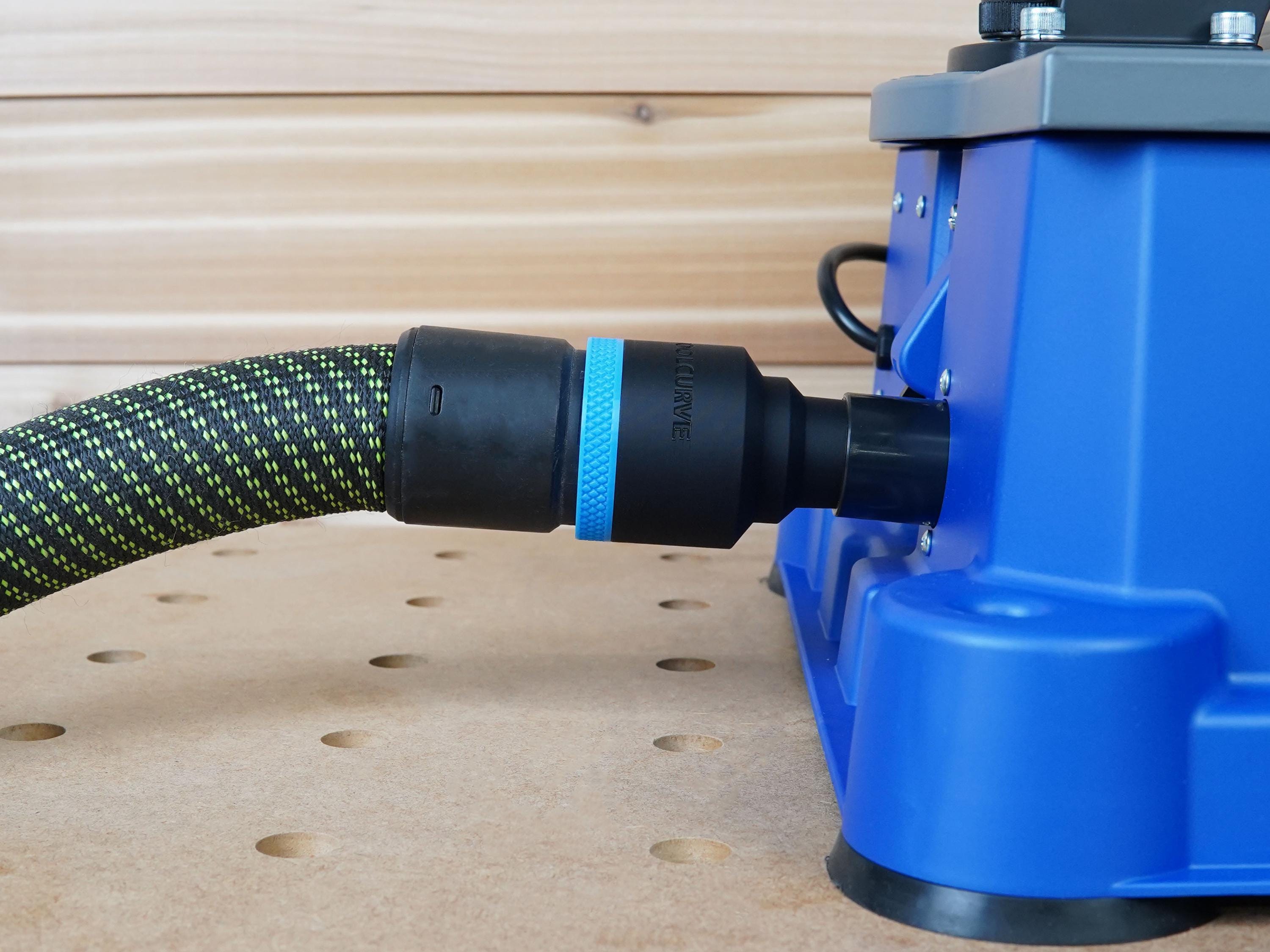

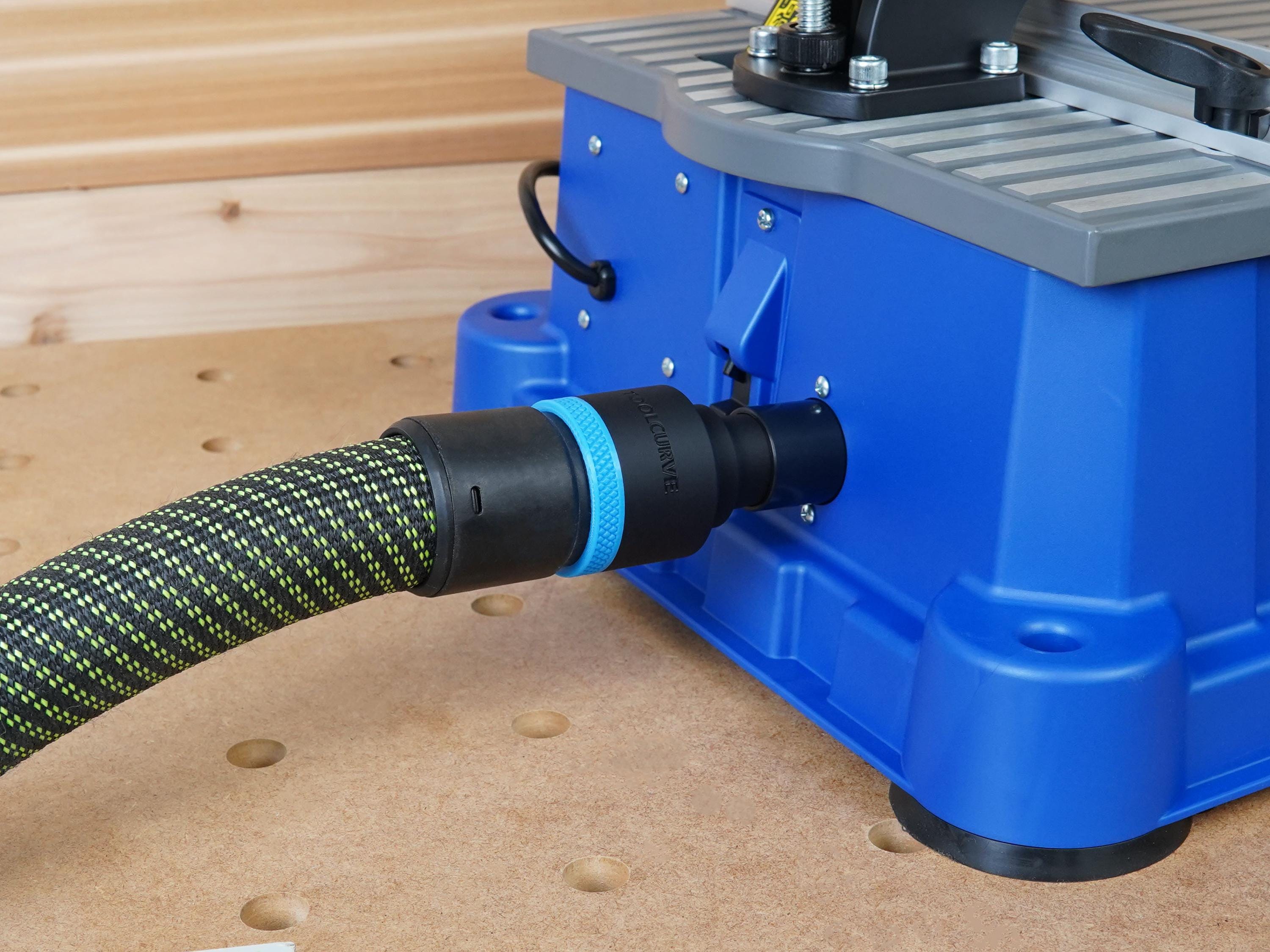

36mm Hose
SelectedGreen and black sleeve with a wider black end.
- Outside, at the tip
- ≈ 44 mm1.73 in
- Outside, at the base
- ≈ 46 mm1.81 in
SelectedViewing The 36 mm in the name is the inside of the hose itself. The end you plug in measures about 45 mm1.77 in across the outside.
Compare the end of your hose to the picture and the measurement. If both match, this is your size.

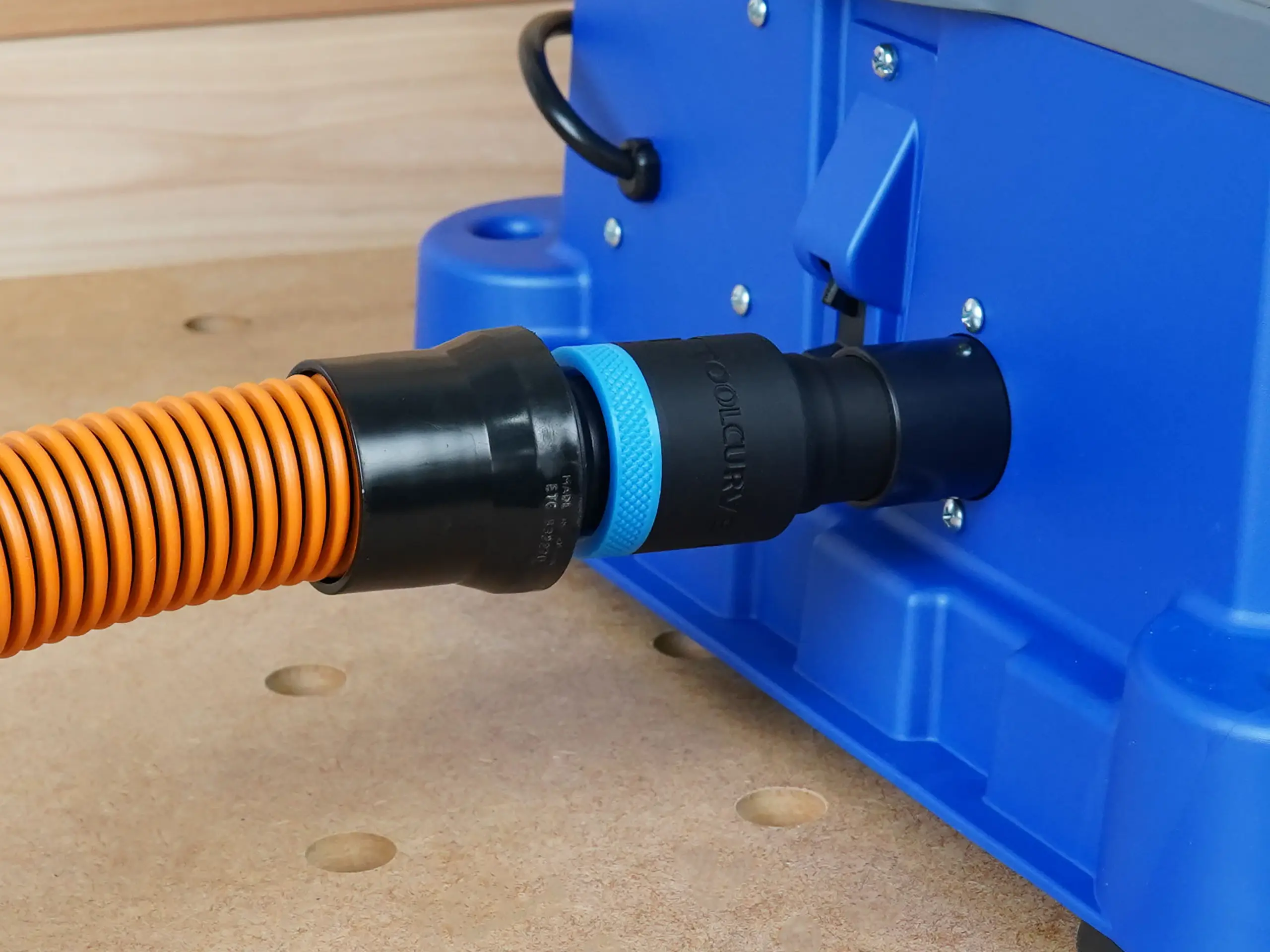

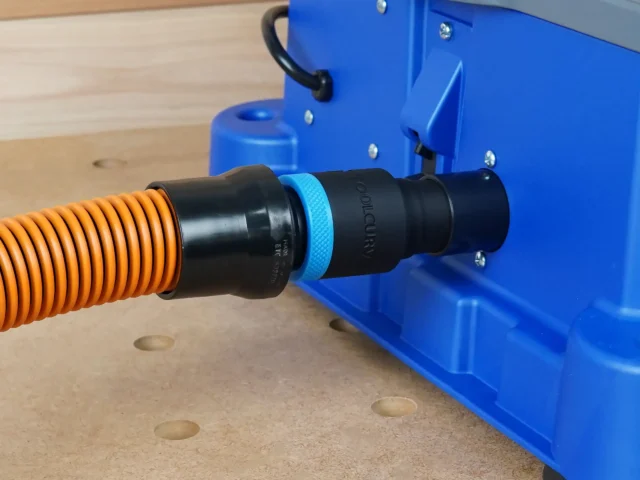

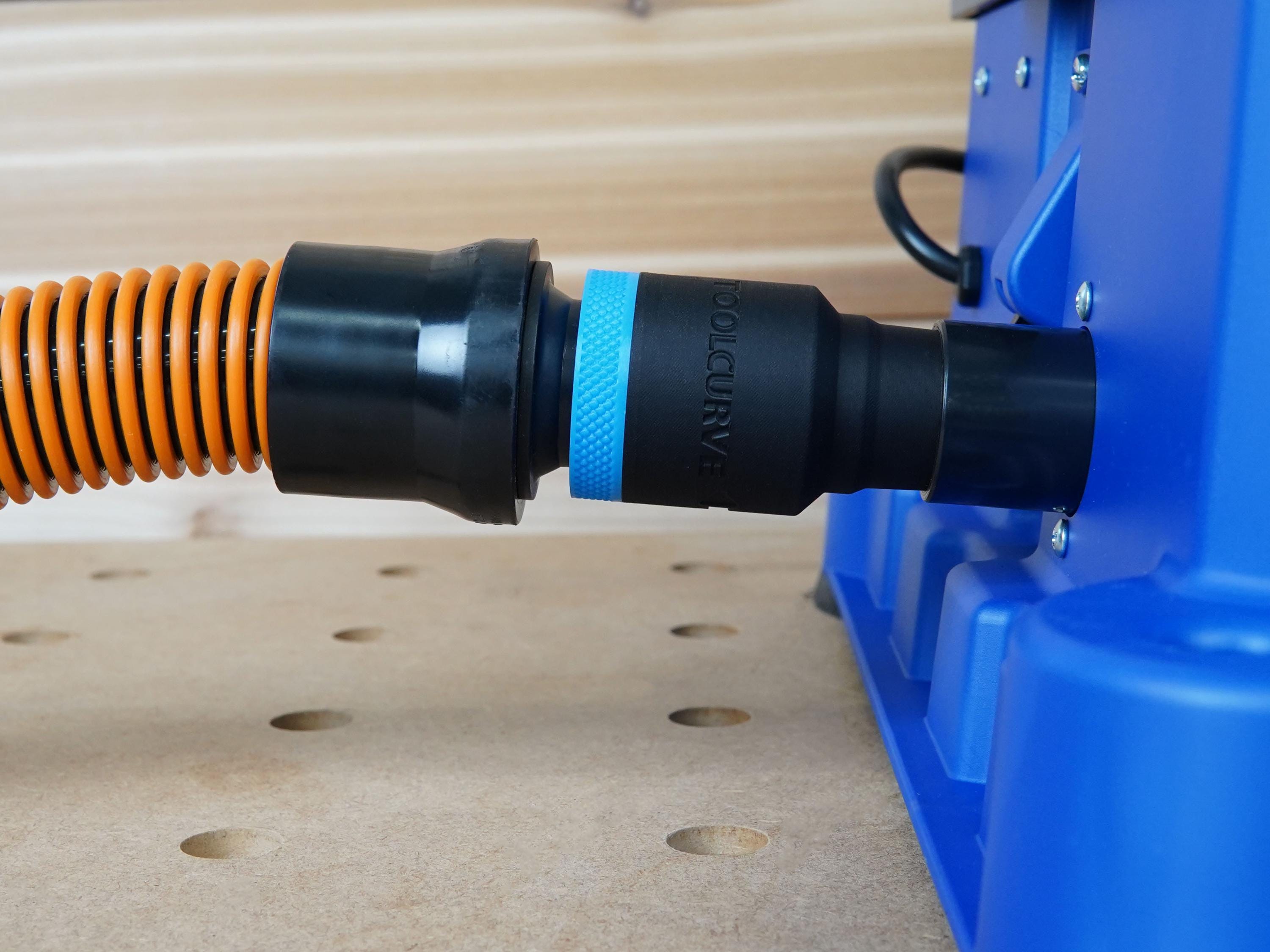

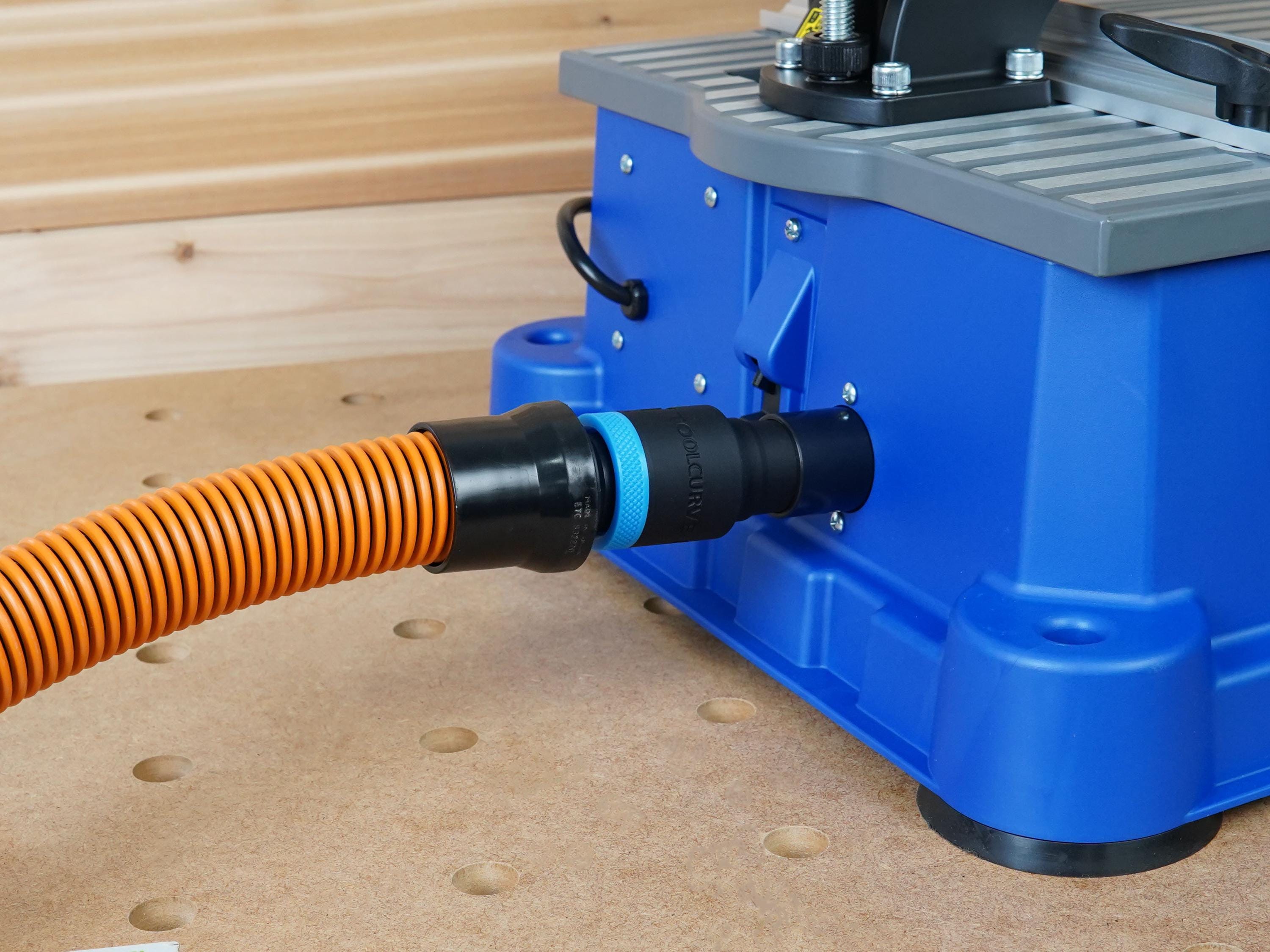

1-1/4″ Hose
SelectedOrange hose with a stepped black end.
- Outside, at the tip
- ≈ 30.8 mm1.21 in
- Outside, at the base
- ≈ 32.5 mm1.28 in
SelectedViewing This is the Hose Size chosen above.This is not the Hose Size chosen above.
Compare the end of your hose to the picture and the measurement. If both match, this is your size.

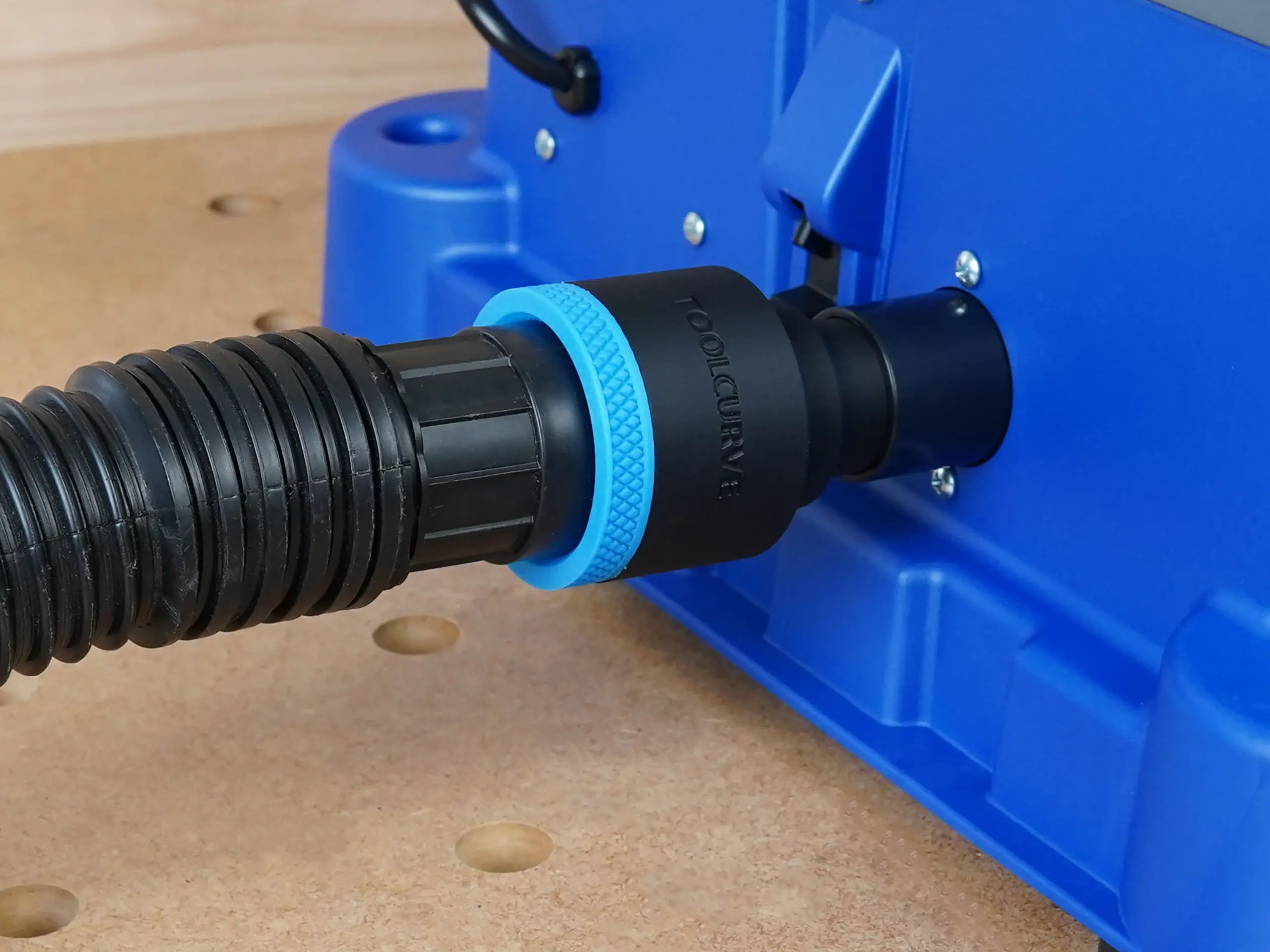

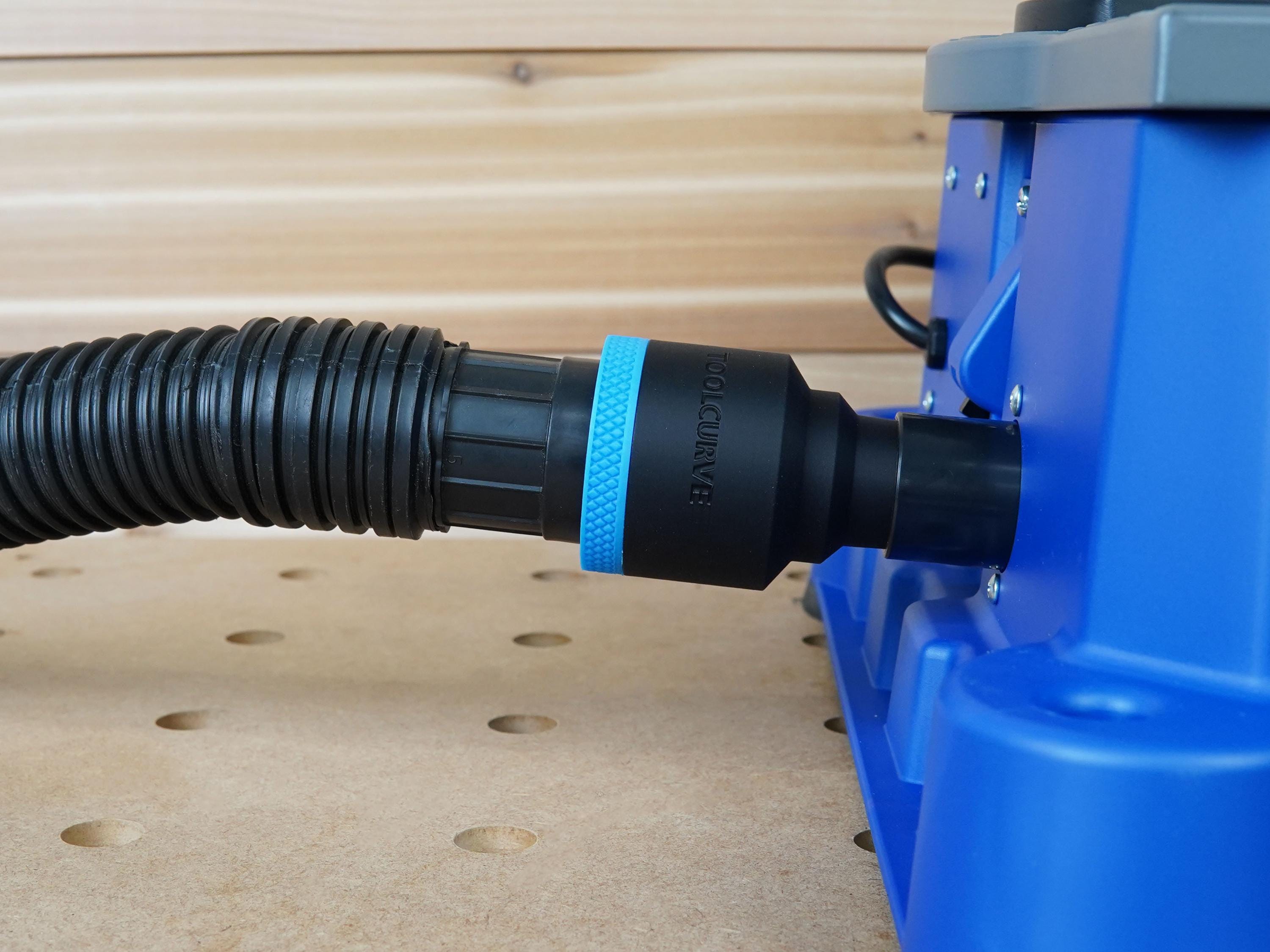

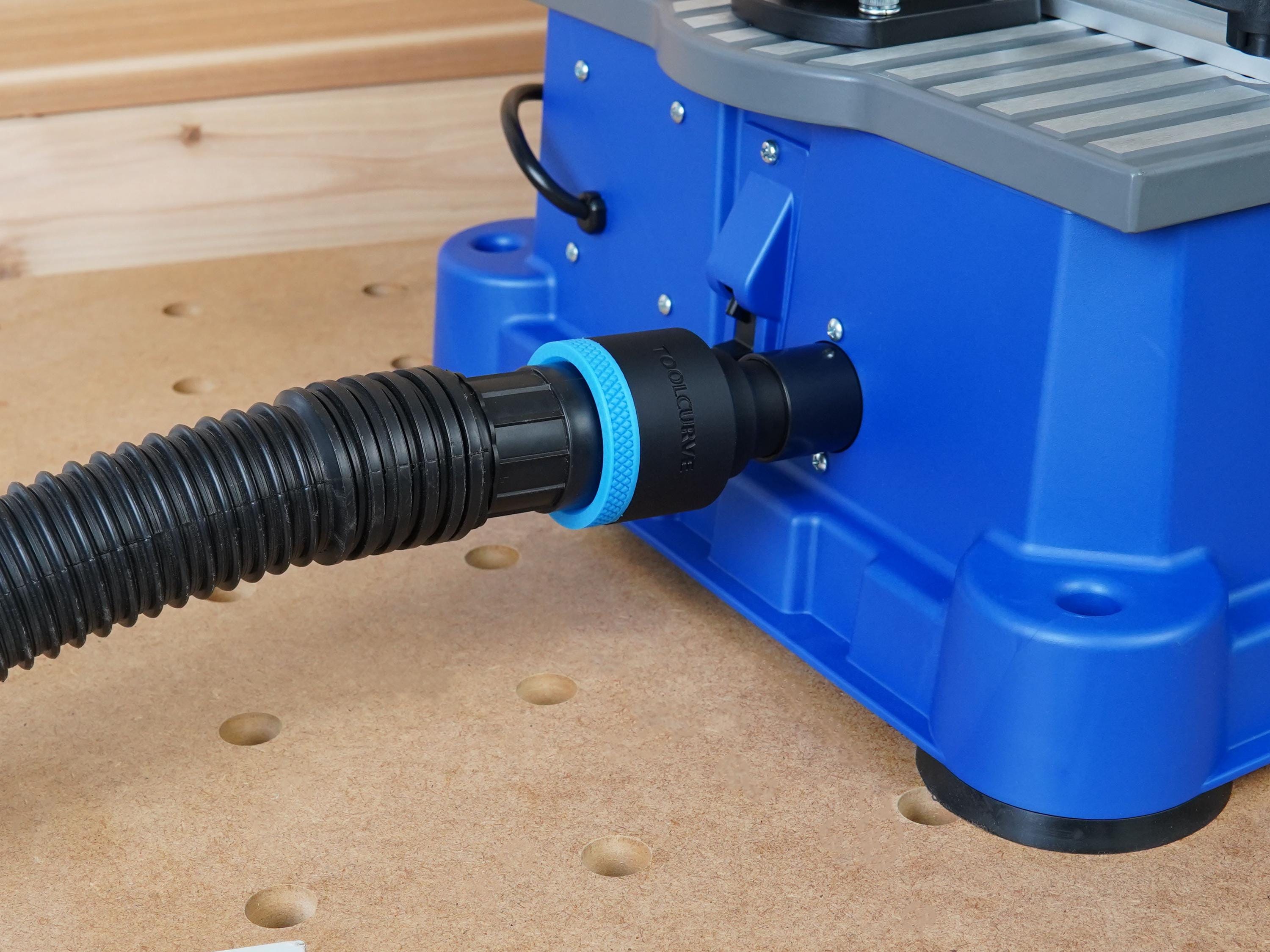

1-7/8″ Hose
SelectedBlack ribbed hose with a long tapered end.
- Outside, at the tip
- ≈ 44 mm1.73 in
- Outside, at the base
- ≈ 45.4 mm1.79 in
SelectedViewing This is the Hose Size chosen above.This is not the Hose Size chosen above.
Compare the end of your hose to the picture and the measurement. If both match, this is your size.

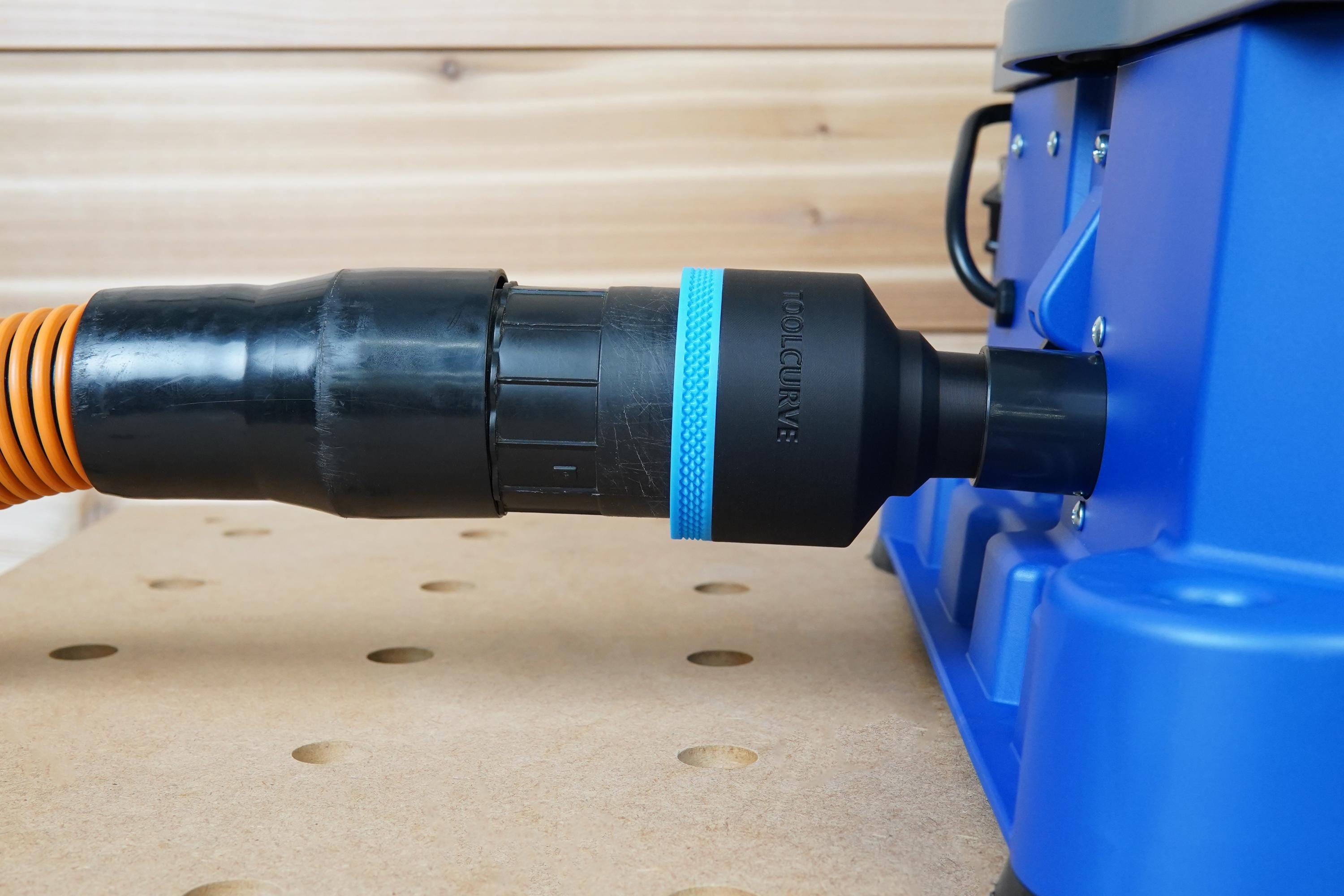

2-1/2″ Hose
SelectedLarge black ribbed hose.
- Outside, at the tip
- ≈ 57.6 mm2.27 in
- Outside, at the base
- ≈ 58.8 mm2.31 in
SelectedViewing This is the Hose Size chosen above.This is not the Hose Size chosen above.
Compare the end of your hose to the picture and the measurement. If both match, this is your size.
