Dewalt Table Saw Zero Clearance Insert

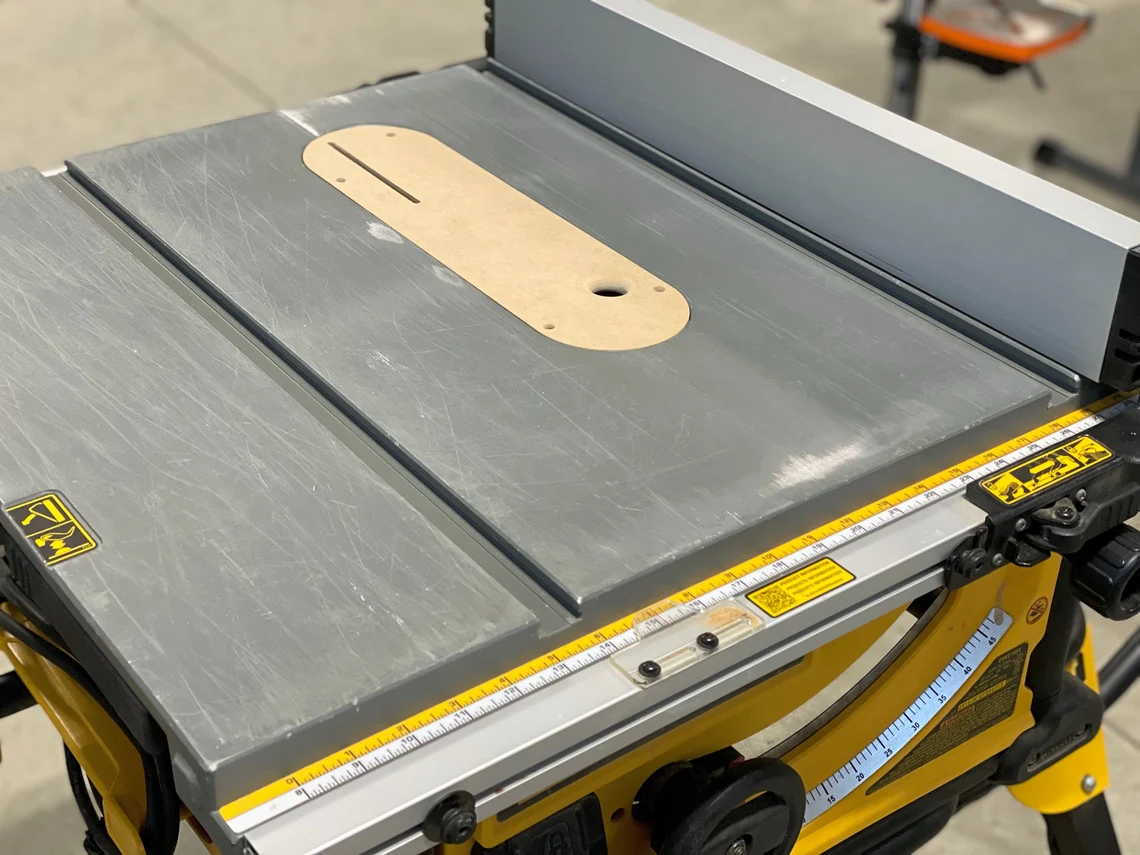

Tan MDF zero clearance insert for Dewalt table saw, displayed in the saw's slot next to black dust collection tube, showing mounting holes and curved edges

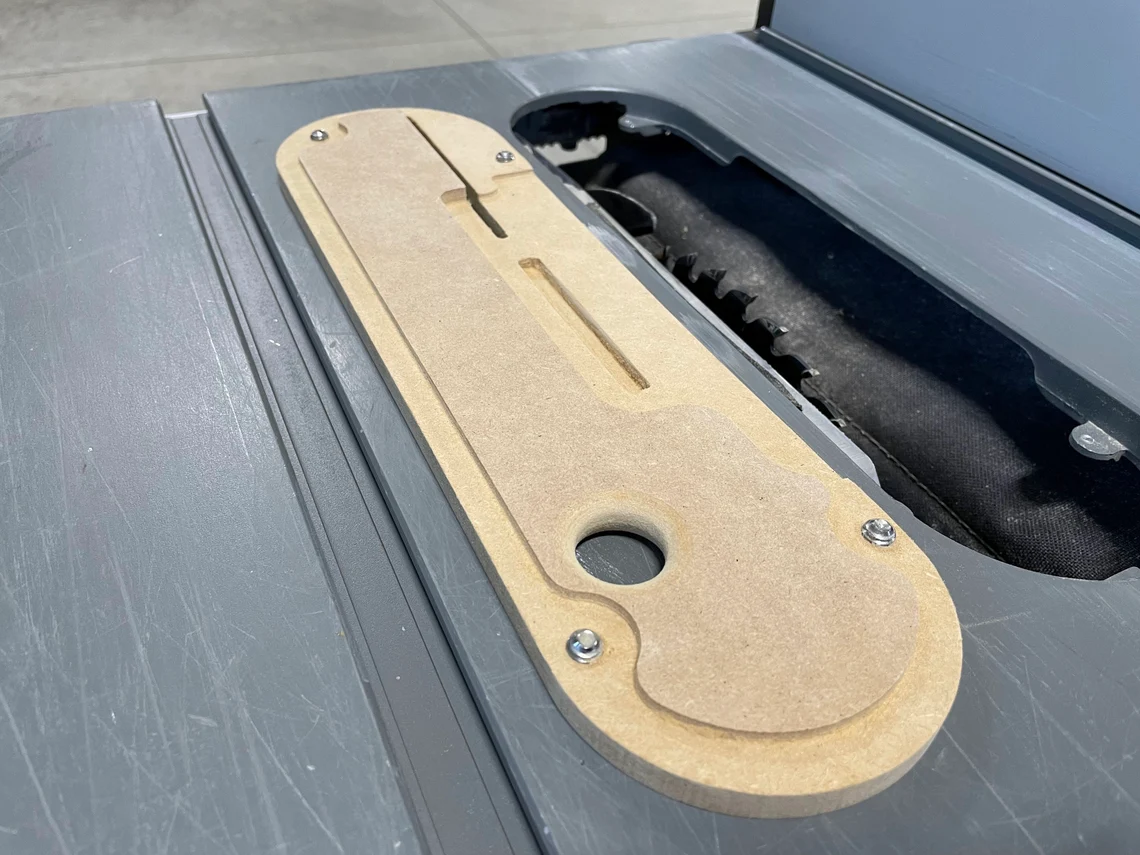

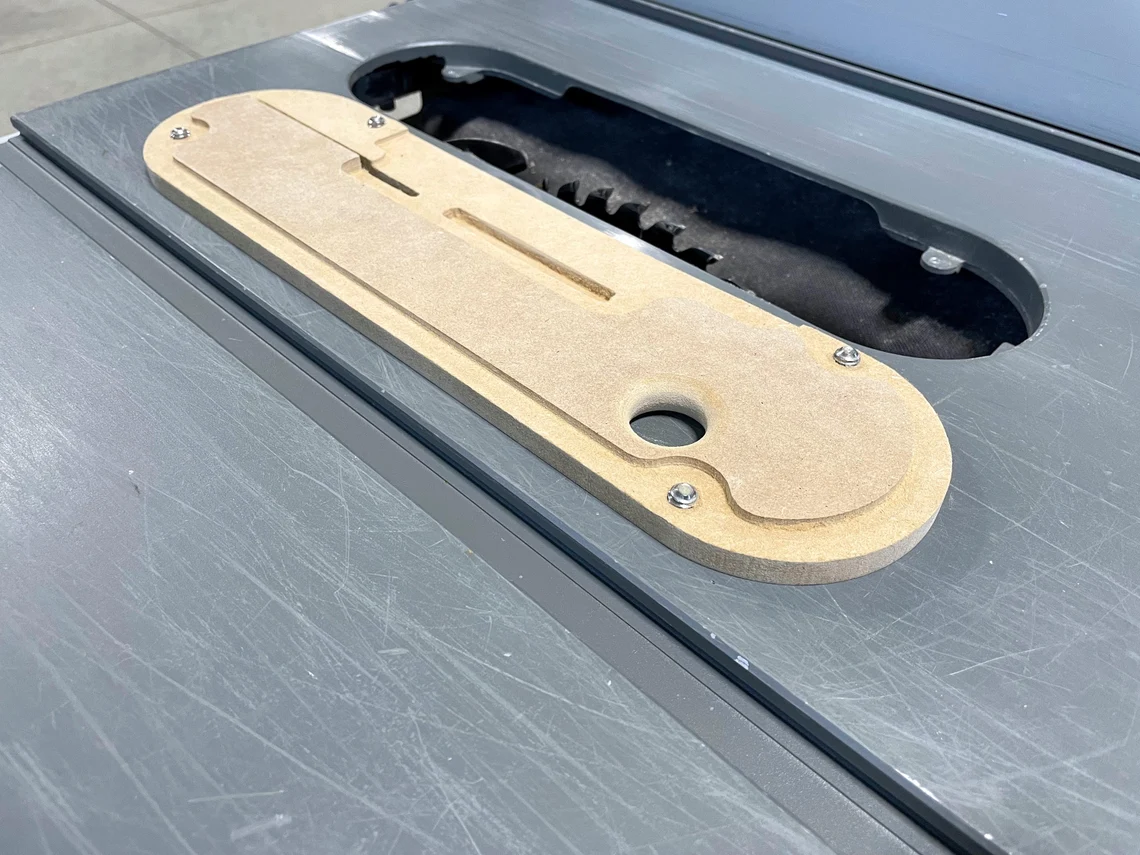

Tan MDF zero clearance insert for Dewalt table saw, shown installed in saw slot with black dust collection shroud visible behind it

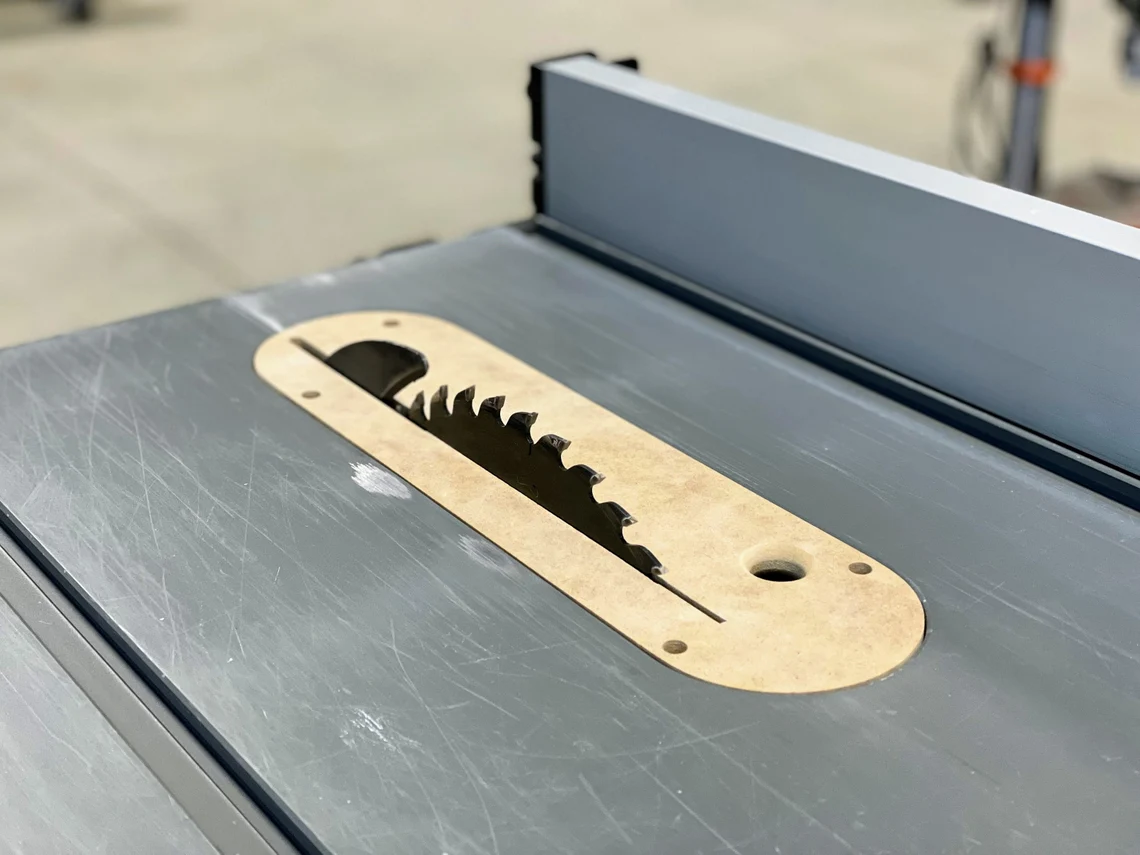

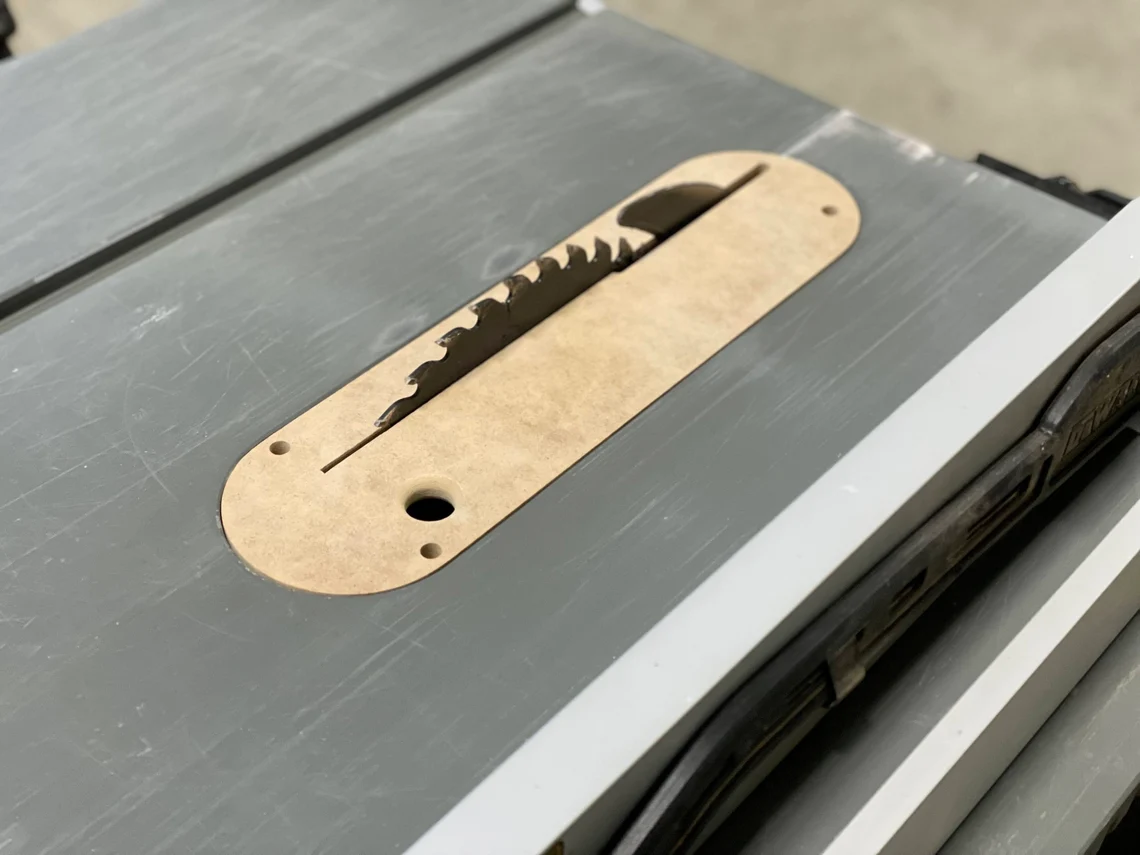

Wooden zero clearance insert with offset screw holes installed on Dewalt table saw blade throat

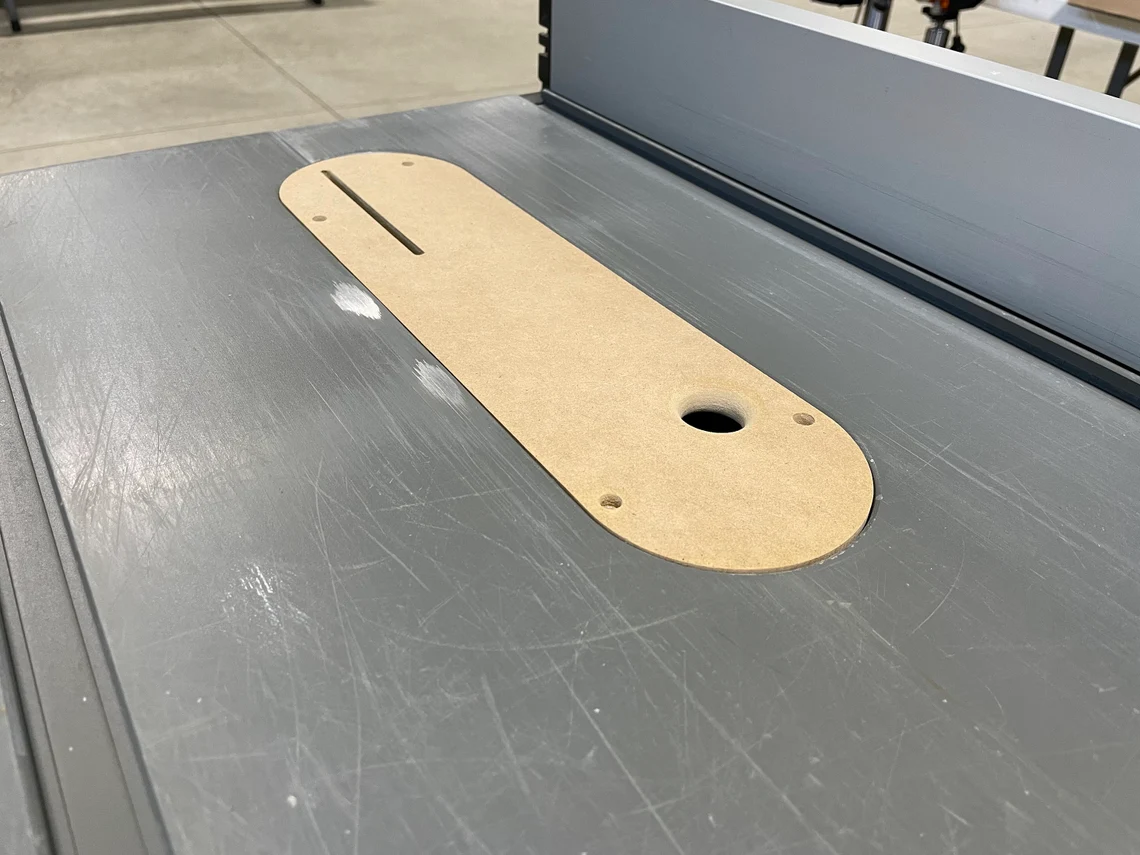

Light wood MDF zero clearance insert seated in Dewalt table saw throat, with slot for blade and mounting holes visible
Tan MDF zero clearance insert with slot and mounting holes, positioned on a grey table saw table.
Top-view technical drawing of a Dewalt table saw zero clearance insert showing dimensions 344.42mm wide by 95mm tall, with four corner mounting holes and a central slot.

Dewalt 10″ Table Saw Zero Clearance Insert

111 reviews 4
Current price is: $19.96.Original price was: $24.95.
In Stock Ships from Medina, OH
Arrives Oct 16-19 Order within 2h 14m

Buy more, save more

Mix Standard and Dado — any combination counts.

Description

Zero clearance insert for Dewalt 10″ Table Saw. Fits models DWE7491, DWE7491RS, DWE7480, DWE7499, DWE745, DWE7490, DWE7490X.

  • Zero Clearance provides better cut quality over standard insert
  • Made out of 1/2″ MDF and CNC cut for the best fit possible
  • Works on thin and full kerf blades
  • Provides quality precise cuts with no tear-out and helps improve dust flow
  • Comes with stainless off-set screws so you can adjust the height to your exact needs
  • Designed by ToolCurve in Ohio, Made in the USA

Dimensions & Details

Imperial / Metric
Imperial
Length
13.56 in
Width
3.74 in
Thickness
0.50 in

Shipping & Returns

Domestic Shipping
Priority (2 days): $9.95
Free Shipping on orders over $75

Worldwide Shipping
Canada: $18+
EU coming soon.

Return Policy

Returns are accepted within 90 days of the purchase date for items in new or gently used condition with its original packaging.

Product Add-ons

Festool 27mm hose adapter for Dewalt table so for lower dust collection
Hose Adapter for Dewalt Table Saw
Hose Size
Current price is: $19.96.Original price was: $24.95.
Add-ons total $0.00

Frequently Asked Questions

Will an insert made for one saw fit a similar model from the same brand?

Not necessarily. Each insert is CNC cut to fit the saw or saws named on its product page, so check that your model appears there before you order. For example, our SawStop PCS, ICS and CNS insert does not fit the SawStop Jobsite PRO, which has its own insert. If your saw is not listed, contact us with the model number and the dimensions of your factory plate.

What is the difference between the Standard and Dado insert?

The Standard insert has a slot for the riving knife and is meant for a regular table saw blade. The Dado insert has no riving knife slot because it is designed to be used with a dado stack. Our Dewalt 12″ sliding miter saw insert is not offered in a Dado version.

Do the inserts come with the blade slot already cut?

No. All of our zero clearance inserts ship with the blade slot uncut so you can cut it to match your own blade kerf, and they work with both thin and full kerf blades. That applies to the Standard and Dado versions alike; on the Standard version only the riving knife slot comes already cut.

Do the inserts come with screws to level them with the table?

Yes, most of our table saw inserts include stainless off-set screws so you can adjust the insert height to match your saw’s table.

What are the inserts made of?

Our table saw inserts are CNC cut from 1/2″ (12.7 mm) MDF. The Dewalt 12″ sliding miter saw insert is offered in MDF or acrylic and is CNC and laser cut. We publish CAD drawings with the dimensions for most of our zero clearance inserts.

Reviews & Questions

4.6 Based on 111 reviews
5 77% 4 14% 3 5% 2 3% 1 2%
Showing 1–5 of 111 reviews
  1. William S. Verified Buyer

    I ordered the wrong saw guide. Should have ordered the Riged saw guide instead

    Helpful? (0) (0)
  2. John Verified Buyer

    i need another one.

    Helpful? (0) (0)
  3. William B. Verified Buyer

    Exactly what I needed for a project. Will order more as needed from this seller.

    Helpful? (0) (0)
  4. Robert Verified Buyer

    It doesn’t lock down to the table top.

    Helpful? (0) (0)
  5. Robert Verified Buyer

    Awesome but it doesn’t lock down onto the table

    Helpful? (0) (0)
Load More Reviews

Write a Review

Dewalt 10" Table Saw Zero Clearance Insert Dewalt 10" Table Saw Zero Clearance Insert
Your Rating *

Questions & Answers

Ask a Question

Dewalt 10" Table Saw Zero Clearance Insert Dewalt 10" Table Saw Zero Clearance Insert
A question is required
A name is required
Does it come with the riving knife slot? Andrea Bartels asked on June 21, 2026

The standards version of all our inserts come with the riving knife slot, the DADO version does not.

ToolCurve answered on June 21, 2026 Store Manager
Helpful? (0) (0)

Answer This Question

An answer is required
A name is required
Will this fit the DeWalt 10 inch table saw DEW745? Joe asked on January 14, 2026

Yes, this is designed for the 10" Dewalt table saws and that includes the DEW745.

ToolCurve answered on January 14, 2026 Store Manager
Helpful? (0) (0)

Answer This Question

An answer is required
A name is required
What are the dimensions? Nathan asked on May 15, 2025

We just published the CAD drawings to all our zero clerance inserts which includes the dimensions

ToolCurve answered on May 15, 2025 Store Manager
Helpful? (1) (1)

Answer This Question

An answer is required
A name is required
What material are they made out of Arnold L Behrer asked on April 12, 2025

Hi Arnold, our current ones are made out of MDF, we plan to offer other materials here in the coming months.

ToolCurve answered on April 14, 2025 Store Manager

What materials do you now offer in addition or in place of MDF?

Rob Jacobs answered on April 3, 2026
