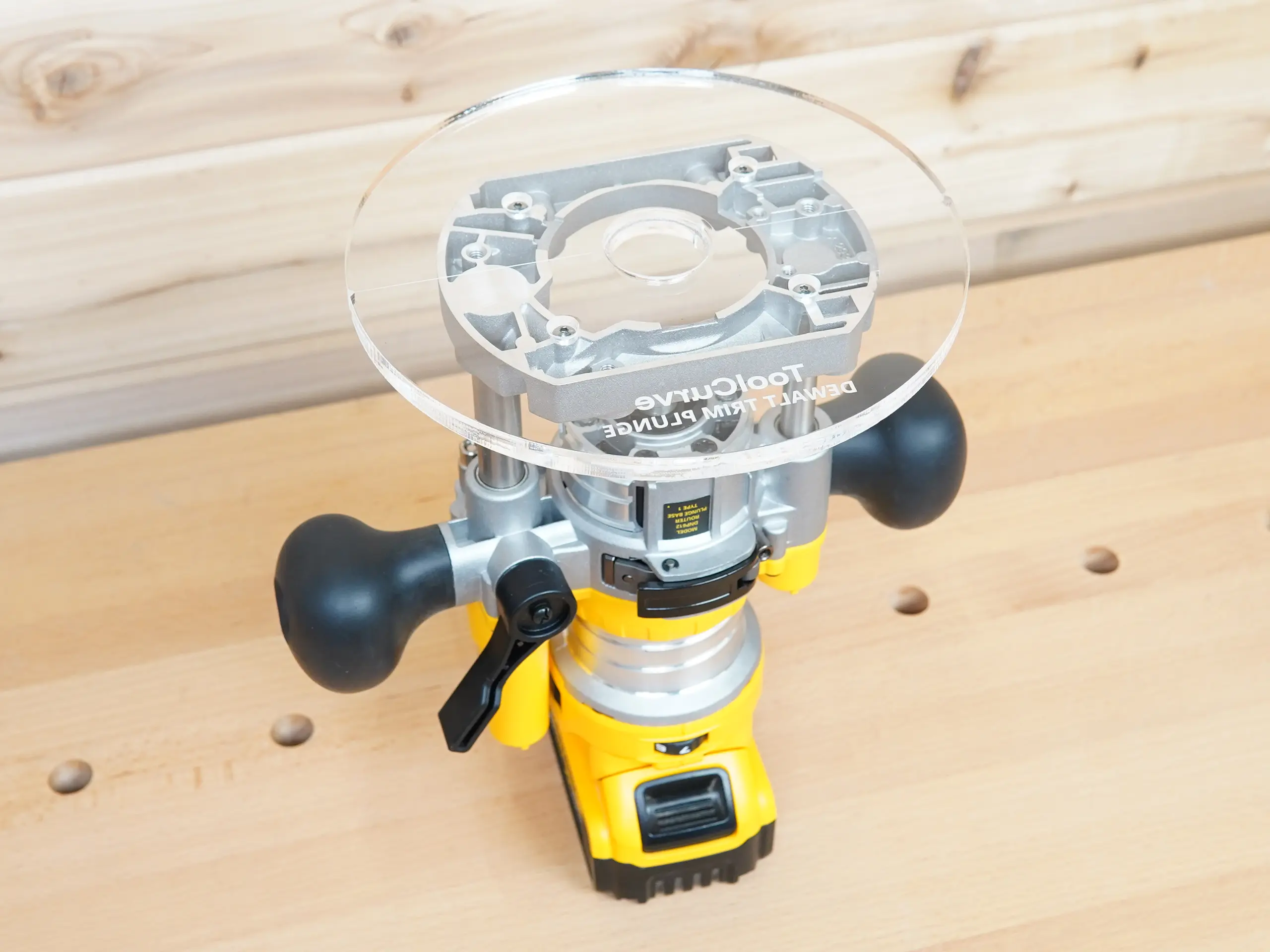

Clear 8-inch round acrylic router base plate marked Dewalt Trim Plunge, mounted on a yellow Dewalt DNP612 plunge router

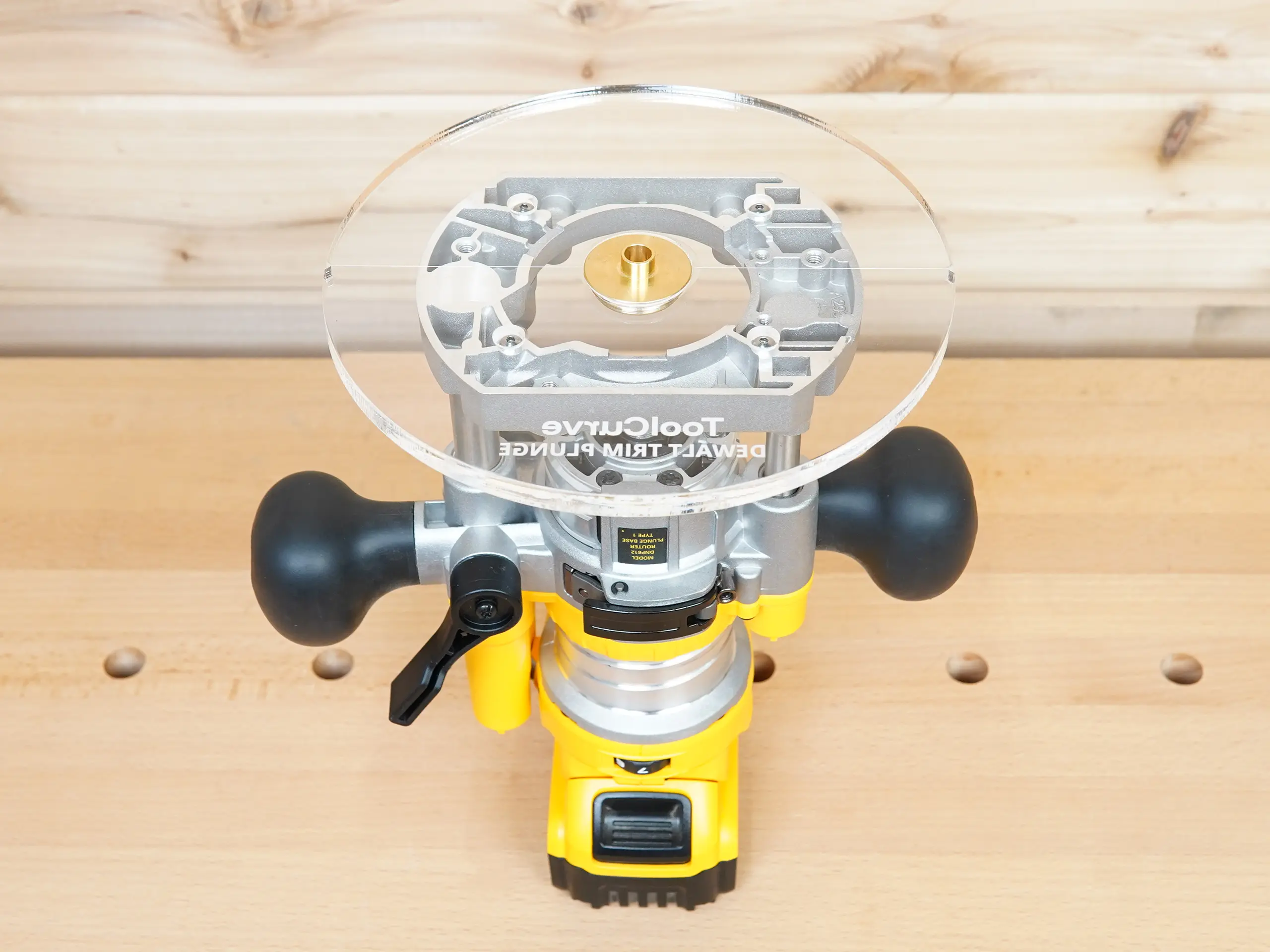

8-inch clear acrylic router base plate attached to a Dewalt DNP612 plunge router, showing brass center post and guide bushing opening from above

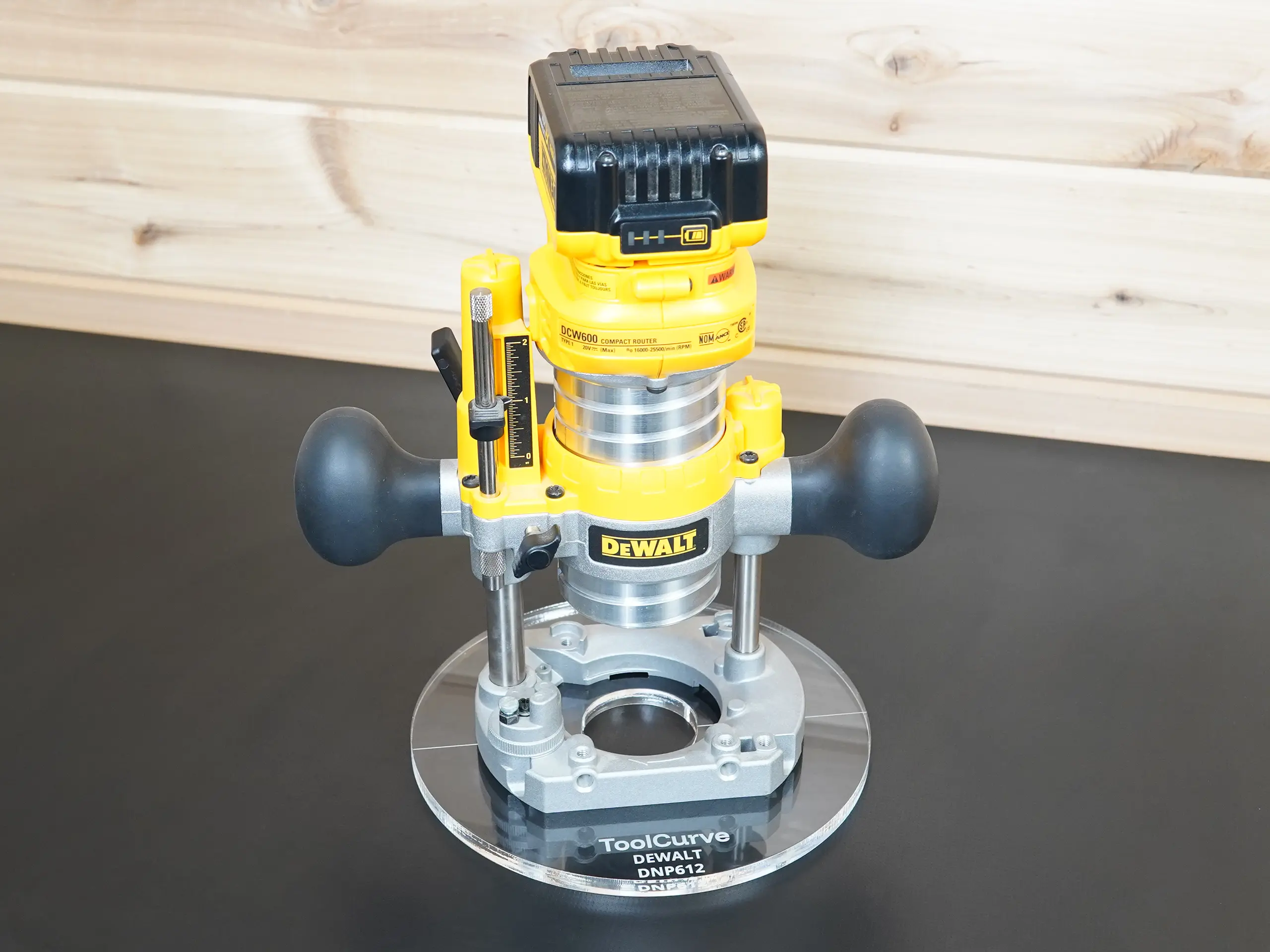

Clear 8-inch round acrylic router base plate marked Dewalt Trim Plunge, mounted on a yellow Dewalt DNP612 plunge router

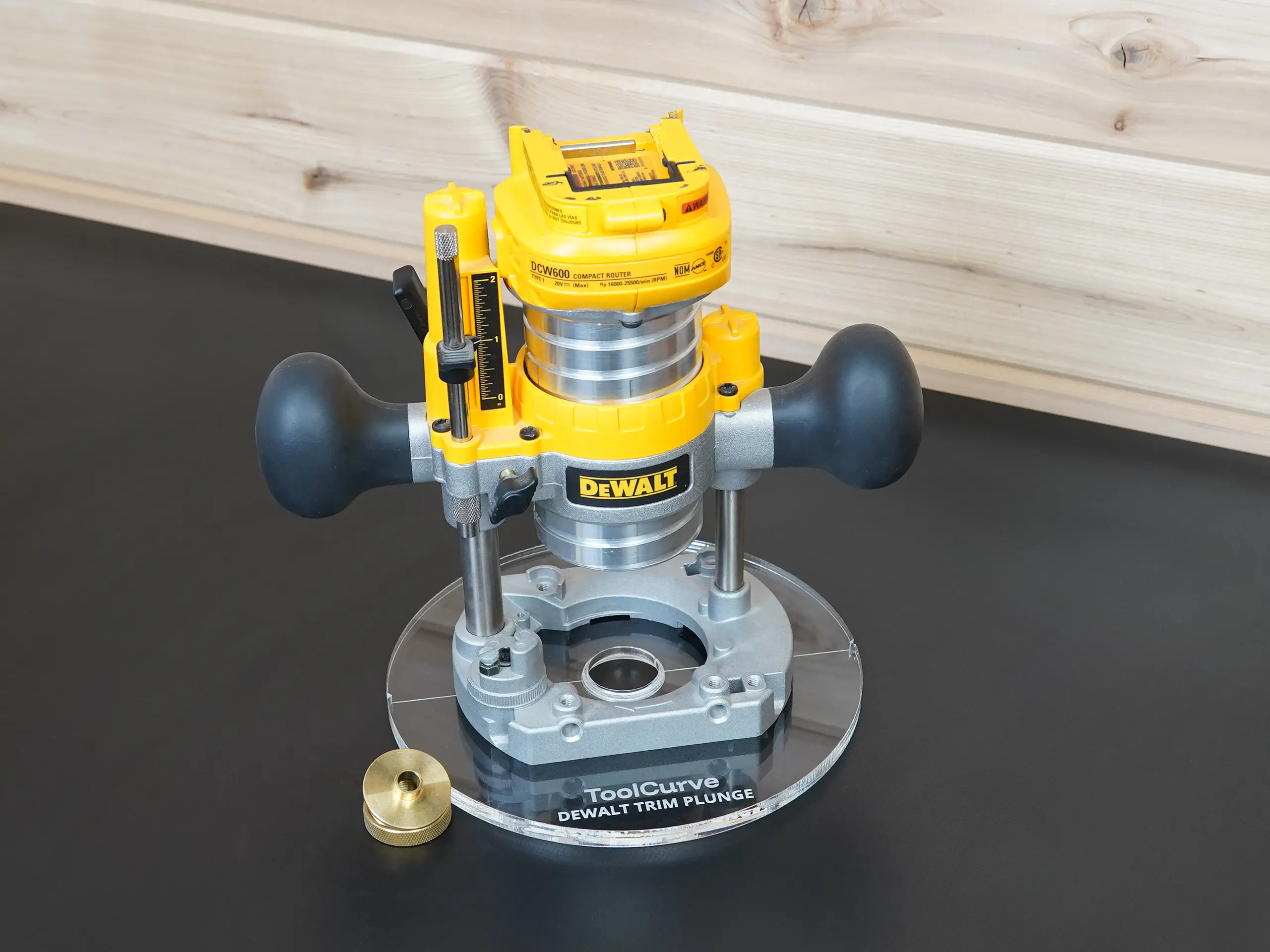

8-inch clear acrylic router base plate attached to a Dewalt DNP612 plunge router, showing brass center post and guide bushing opening from above

8″ Round Acrylic Base Plate for DeWalt DNP612 Plunge Base

Current price is: $29.71.Original price was: $34.95.
In Stock Ships from Medina, OH
Arrives Aug 20-23 Order within 2d 20h

Key Features

  • Large 8″ round base for added stability
  • Made from durable 3/8″ clear cast acrylic
  • Direct fit for the Dewalt DNP612 Plunge Base
  • Choice of guide-bushing or 2″ wide opening
  • Designed & Made in Medina, Ohio

Description

Give your DeWalt DNP612 plunge base a wider, more stable routing surface for smoother, more controlled cuts. Precision-cut from 3/8″ clear cast acrylic, this 8″ router base plate adds support while keeping the bit and layout lines visible.

Base Plate Opening Options

Guide Bushing — 1.2″ Opening

Designed for standard Porter-Cable-style guide bushings and inlay kits, this option is ideal for template routing, inlay work, and other guided cuts. The 1.2″ center opening provides clearance for router bits up to 1″ in diameter.

When a guide bushing is installed, maximum bit diameter is determined by the inside diameter of the selected guide bushing.

Wide Opening — 2.5″ Opening

Designed for larger-diameter router bits when a guide bushing is not needed. The 2.5″ center opening provides increased bit clearance while retaining the support and stability of the full-size acrylic base plate.

This option is not compatible with Porter-Cable-style guide bushings.

Quick Comparison

Comparison of Guide Bushing and Wide Opening base plate options
Feature Guide Bushing Wide Opening
Center opening 1.2″ 2.5″
Porter-Cable-style guide bushings Yes No
Best for Templates, inlays, guided routing Larger-diameter router bits

When a guide bushing is installed, maximum bit diameter is determined by the inside diameter of the selected guide bushing.
